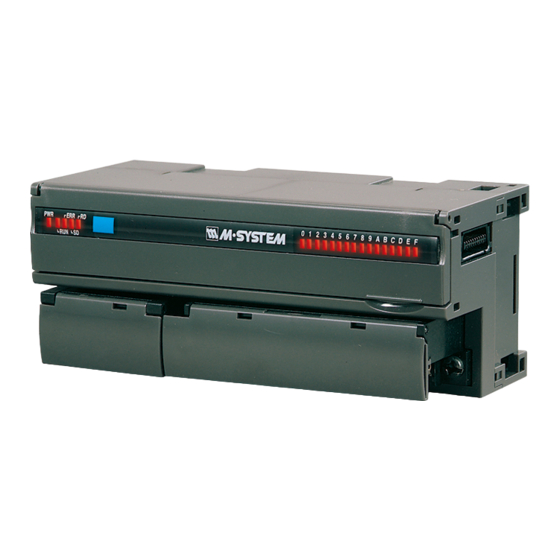

M-system R7E-EC16A Instruction Manual

INSTRUCTION MANUAL
NPN TRANSISTOR OUTPUT EXTENSION MODULE, 16 points
(Ethernet Modbus/TCP)
BEFORE USE ....
Thank you for choosing M-System. Before use, please check
contents of the package you received as outlined below.
If you have any problems or questions with the product,
please contact M-System's Sales Office or representatives.
■ PACKAGE INCLUDES:
Discrete output extension module ................................... (1)
■ MODEL NO.
Confirm that the model number described on the product is
exactly what you ordered.
■ INSTRUCTION MANUAL
This manual describes necessary points of caution when
you use this product, including installation, connection and
basic maintenance procedures.
POINTS OF CAUTION
■ CONFORMITY WITH EU DIRECTIVES
• The actual installation environments such as panel con-
figurations, connected devices and connected wires may
affect the protection level of this unit when it is integrat-
ed in a panel system. The user may have to review the CE
requirements in regard to the whole system and employ
additional protective measures to ensure CE conformity.
■ POWER INPUT RATING & OPERATIONAL RANGE
• Locate the power input rating marked on the product and
confirm its operational range as indicated below:
24V DC rating: 24V ±10%, approx. 20mA
■ GENERAL PRECAUTIONS
• Before you remove the unit or mount it, turn off the power
supply and output signal for safety.
■ ENVIRONMENT
• Indoor use.
• When heavy dust or metal particles are present in the
air, install the unit inside proper housing with sufficient
ventilation.
• Do not install the unit where it is subjected to continuous
vibration. Do not subject the unit to physical impact.
• Environmental temperature must be within -10 to +55°C
(14 to 131°F) with relative humidity within 30 to 90% RH
in order to ensure adequate life span and operation.
■ WIRING
• Do not install cables close to noise sources (relay drive
cable, high frequency line, etc.).
• Do not bind these cables together with those in which
noises are present. Do not install them in the same duct.
■ AND ....
• The unit is designed to function as soon as power is sup-
plied, however, a warm up for 10 minutes is required for
satisfying complete performance described in the data
sheet.
COMPONENT IDENTIFICATION
■ DISCRETE OUTPUT STATUS INDICATOR LED
Discrete output extension modules have LED indicators
showing output signal status.
Contact ON: LED ON
Contact OFF: LED OFF
■ OUTPUT TERMINAL ASSIGNMENT
NO.
1
2
3
4
5
6
7
8
9
5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN
Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp
MODEL
Discrete Output Status Indicator LED
10 11 12 13
1 2 3 4
10 11 12 13 14
+24V Y1 Y3 Y5 Y7
1 2 3 4 5 6
0V Y0 Y2 Y4 Y6
ID FUNCTION NO.
0V 0V (common) 10
Y0 Output 0 11
Y2 Output 2 12
Y4 Output 4 13
Y6 Output 6 14
Y8 Output 8 15
YA Output 10 16
YC Output 12 17
YE Output 14 18
R7E-EC16A
R7E-EC16A
0 1 2 3 4 5 6 7 8 9 A B C D E F
14 15 16 17 18
5 6 7 8 9
Output Terminals
15 16 17 18
Y9 YB YD YF
7 8 9
Y8 YA YC YE
ID FUNCTION
+24V 24V DC
Y1 Output 1
Y3 Output 3
Y5 Output 5
Y7 Output 7
Y9 Output 9
YB Output 11
YD Output 13
YF Output 15
EM-7807-J Rev.2 P. 1 / 3
