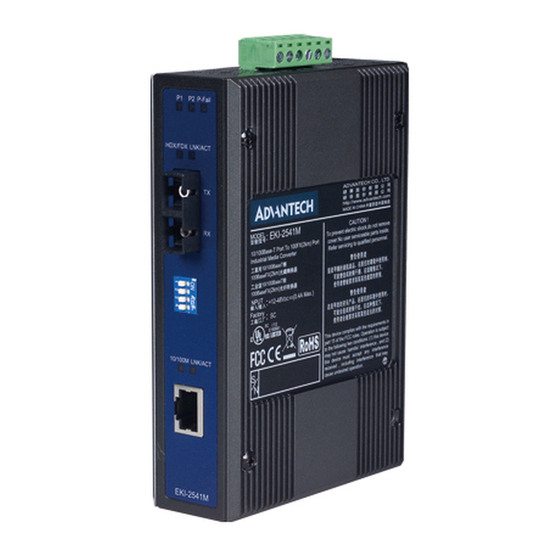

- Page 1 EKI-2541M/SC Ethernet to Multi-mode SC Type Fiber Optic Converter EKI-2541S/SC Ethernet to Single-mode SC Type Fiber Optic Converter User Manual...
- Page 2 The documentation and the software included with this product are copyrighted 2007 by Advantech Co., Ltd. All rights are reserved. Advantech Co., Ltd. reserves the right to make improvements in the products described in this manual at any time without notice. No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd.
- Page 3 Because of Advantech′s high quality-control standards and rigorous testing, most of our customers never need to use our repair service. If an Advantech product is defective, it will be repaired or replaced at no charge during the warranty period. For out-of-warranty repairs, you will be billed according to the cost of replacement materials, service time and freight.
- Page 4 Step 2. Contact your distributor, sales representative, or Advantech’s customer service center for technical support if you need additional assistance. Please have the following information ready before you call: - Product name and serial number...
- Page 5 Safety Instructions 1. Read these safety instructions carefully. 2. Keep this User's Manual for later reference. 3. Disconnect this equipment from any AC outlet before cleaning. Use a damp cloth. Do not use liquid or spray detergents for cleaning. 4. For plug-in equipment, the power outlet socket must be located near the equipment and must be easily accessible.
- Page 6 Safety Precaution - Static Electricity Follow these simple precautions to protect yourself from harm and the products from damage. 1. To avoid electrical shock, always disconnect the power from your PC chassis before you work on it. Don't touch any components on the CPU card or other cards while the PC is 2.
-
Page 7: Table Of Contents
Contents Chapter 1 Overview........... 2 1.1 Introduction ............2 1.1.1 Fast Fiber Converters Module ....2 1.1.2 Dual Power Input ........2 1.1.3 Flexible Mounting ........2 1.1.4 Advanced Protection ......... 2 1.1.5 Wide Operating Temperature ....2 1.1.6 Easy Troubleshooting........ 2 1.2 Features.............. - Page 8 EKI-2541M & 2541S User Manual viii...
-
Page 9: Chapter 1 Overview
Overview Sections include: Introduction Features Specifications Packing List Safety Precaution Chapter1... -
Page 10: Introduction
Chapter 1 Overview 1.1 Introduction The EKI-2541M/2541S is a cost-effective solution for the converting between 10/100Base-TX and 100Base-FX cabling, it allows you to extend the cabling distance of your 100Base-FX network up to 2 kilometers for multi-mode fiber or 30 kilometers for single-mode fiber. -
Page 11: Features
1.2 Features • Provides 1 x 10/100Mbps Ethernet ports with RJ-45 connector • Provides 1 x SC (multi-mode & single-mode) fiber connector • Supports full/half duplex flow control • Supports store & forward transmission • supports auto-negotiation • Supports MDI/MDI-X auto-crossover •... -
Page 12: Specification
1.3 Specification Communications IEEE 802.3, 802.3u, 802.3x Compatibility 10/100Base-TX Transmission Distance Multi-mode Fiber: Up to 2km Single-mode Fiber: Up to 30km Transmission Speed Up to 100 Mbps Interface 1 x RJ-45 Connectors 1 x SC type fiber connector 6-pin removable screw terminal (power & relay) LED Indicators Unit: P1, P2, P-Fail Ethernet: 10/100M, LNK/ACT... - Page 13 Storage Temperature -40 ~ 85 ℃ Certifications Safety UL, 60950-1, CAN/CSA-C22.2 No.60950 U.S.A.: FCC Part 15 CISPR 22 EU: EN55011, EN61000-6-4 EN55022, Class A, EN61000-3-2/3 EN55024 IEC61000-4-2/3/4/5/6/8/11/12 EN61000-6-2 IEC60068-2-32 Free Fall IEC60068-2-27 Shock IEC60068-2-6 Vibration Chapter1...
-
Page 14: Packing List
1.4 Packing List • 1 x EKI-2541M or EKI-2541S Industrial Ethernet to Fiber Optic Converter • 1 x eAutomation Industrial Communication CD-ROM with software, and User manual • 2 x Wall Mounting Bracket and Screws • 1 x DIN-rail Mounting Bracket and Screws •... -
Page 15: Chapter 2 Installation
Installation Sections include: LED Indicators Dimensions Mounting Network Connection Power Connection Chapter2... - Page 16 Chapter 2 Installation In this chapter, you will be given an overview of the EKI-2541M/2541S hardware installation procedures. 2.1 LED Indicators There are few LEDs display the power status and network status located on the front panel of EKI-2541M/2541S, each of them has its own specific meaning as below table. Table 2.1: EKI-2541M/S LED Definition Color Description...
-
Page 17: Dip-Switch
2.2 DIP-Switch The DIP-Switch is used to configure operation mode for LFP (Link Fault Pass- Through) and operation mode for UTP/Fiber port. The default value of DIP-switch is OFF. Table 2.2: EKI-2541M/S DIP-Switch Definition S/W No Status Description Enables Port/Power Alarm Disable Port/Power Alarm Enables LFP Disables LFP... -
Page 18: Dimensions (Units: Mm)
2.3 Dimensions (units: mm) Figure 2.1: Front View of EKI-2541M/S EKI-2541M & 2541S User Manual... - Page 19 Figure 2.2: Side View of EKI-2541M/S Chapter2...
- Page 20 Figure 2.3: Rear View of EKI-2541M/S EKI-2541M & 2541S User Manual...
- Page 21 Please refer to page 16 for pin assignment. Figure 2.4: Top View of EKI-2541M/S Chapter2...
-
Page 22: Mounting
2.4 Mounting The EKI-2541M/2541S supports two mounting methods: DIN-rail & Wall. 2.4.1 Wall mounting EKI-2541M/2541S can be wall-mounted by using the included mounting kit. Then, hang on the EKI-2541M/2541S to the nails on the wall. First, use the screws included in the package to combine the EKI-2541M/2541S and metal mounting kit. -
Page 23: Din-Rail Mounting
2.4.2 DIN-rail Mounting You can also mount EKI-2541M/2541S on a standard DIN-rail by below steps. The DIN-rail kit is screwed on the industrial switch when out of factory. If the DIN-rail kit is not screwed on the industrial switch, please screw the DIN-rail kit on the switch first. First, hang the EKI-2541M/2541S to the DIN-rail with angle of inclination. - Page 24 Then, let the device down straight to slide over the rail smoothly. See Figure 2.7 Figure 2.7: Installation to DIN-rail Step 2 EKI-2541M & 2541S User Manual...
-
Page 25: Network Connection
2.5 Network Connection • Twisted-pair segment can use unshielded twisted pair (UTP) or shielded twisted pair (STP) cabling. The cable must comply with the IEEE 802.3u 100Base-TX standard for Category 5. The cable between the converter and the link partner (switch, hub, workstation, etc.) must be less than 100 meters (328 ft.) long. - Page 26 EKI-2541M & 2541S User Manual...
-
Page 27: Chapter 3 Troubleshooting
Troubleshooting Chapter2... - Page 28 Chapter 3 Troubleshooting Power Input Verify that is using the right power cord/adapter (+12~48 V ), please don’t use the power adaptor with DC output voltage higher than 48V, or it will burn this converter down. Cable Select the proper UTP/Fiber cable to construct your network. The single-mode converter must use single-mode fiber cable.
-
Page 29: Appendix A Pin Assignment & Wiring
