2 PART NAME

Control Names (17" & 19" Models)

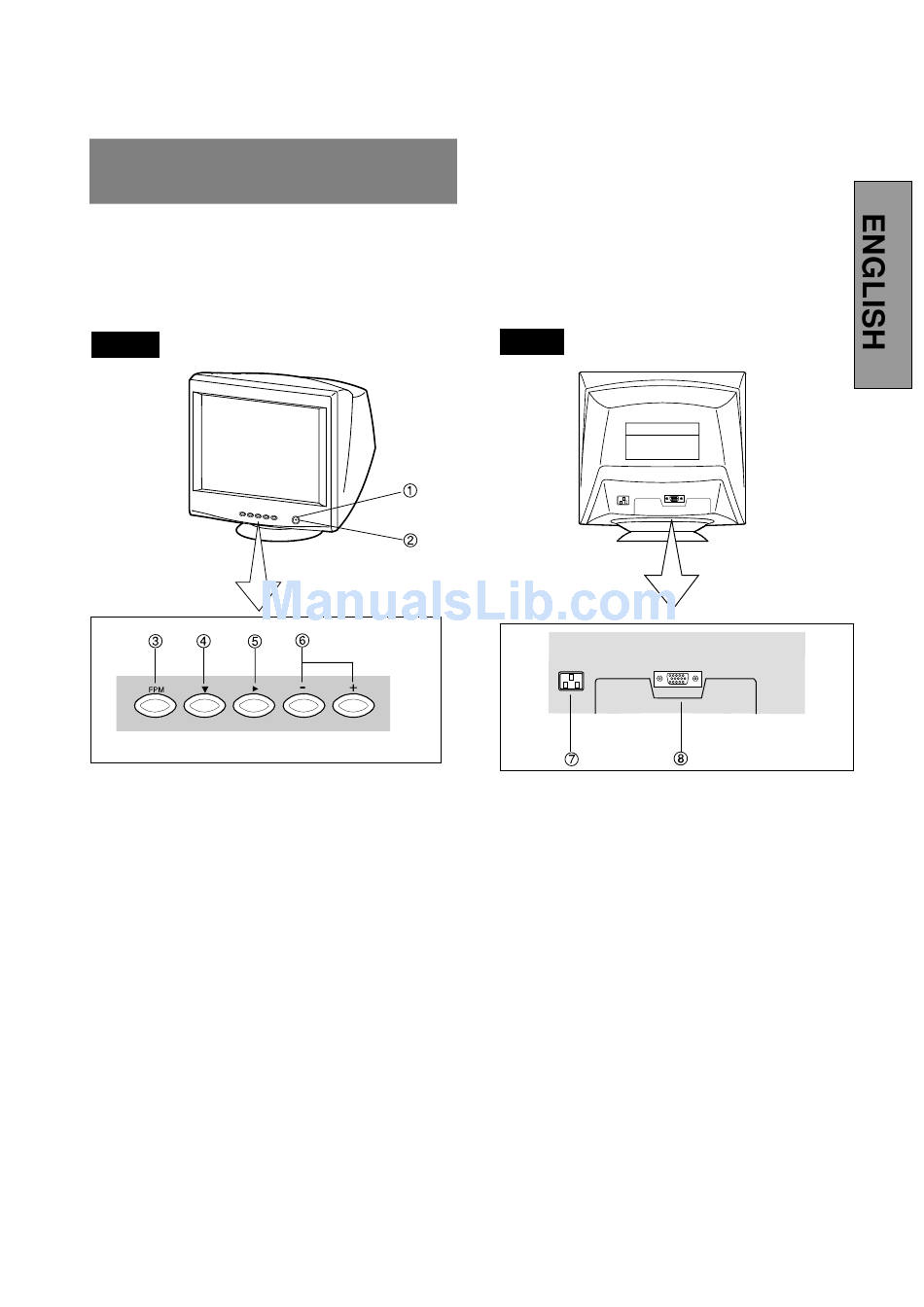

See figures below for the location of the user controls,

indicator and connectors. Each part is identified by number

and is described individually.

FRONT

1. POWER SWITCH: A push-on / push-off switch for AC

power.

2. POWER-ON INDICATOR: This indicator illuminates

green when AC power is on, and illuminates amber

when the monitor is in the power management

modes.

3. FPM (FINE PICTURE MODE): Push to turn FPM on

and off. The normal(default) status is "off", but turning

this function "on" may improve camera type image

renderings. Select the status which provides the

most pleasing image.

Note that only standard color is selected when FPM

is on.

4. DOWN BUTTON: Push to select group icon.

5. ITEM SELECT BUTTON: Push to select the item icon

to be adjusted.

6. FUNCTION ADJUST BUTTONS: Push the adjust

buttons to adjust the function that has been selected

by the down button and item select button.

REAR

7. AC POWER CONNECTOR

8. SIGNAL INPUT CONNECTOR (DB9-15P)

- 1 -
