Compaq P1610 User Manual

Compaq P1610 User Manual

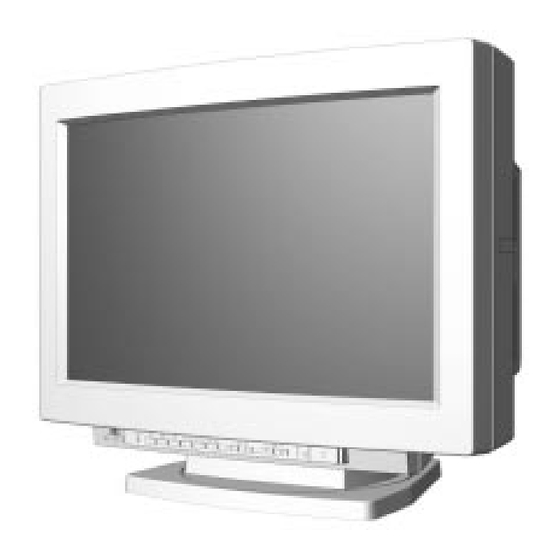

Color monitor
Hide thumbs Also See for P1610:
Table of Contents

Advertisement

Quick Links

Download this manual
Notice
The information in this guide is subject to change without notice.
COMPAQ COMPUTER CORPORATION SHALL NOT BE LIABLE FOR
TECHNICAL OR EDITORIAL ERRORS OR OMISSIONS CONTAINED
HEREIN; NOR FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES
RESULTING FROM THE FURNISHING, PERFORMANCE, OR USE OF
THIS MATERIAL.
This guide contains information protected by copyright. No part of this guide
may be photocopied or reproduced in any form without prior written consent
from Compaq Computer Corporation.
© 1997 Compaq Computer Corporation.
All rights reserved. Printed in Singapore.
Compaq, Deskpro, and QVision are registered in the U. S. Patent and Trademark
Office.
Microsoft, MS-DOS, Windows, Windows NT, and other names of Microsoft
products referenced herein are trademarks or registered trademarks of Microsoft
Corporation.
Product names mentioned herein may be trademarks and/or registered trademarks
of their respective companies.
The software described in this guide is furnished under a license agreement or
nondisclosure agreement. The software may be used or copied only in accordance
with the terms of the agreement.
User's Guide
Compaq P1610 Color Monitor
Fourth Edition (December 1997)
Third Edition (September 1997)
Part Number 305706-004
Compaq Computer Corporation

Advertisement

Table of Contents
loading

Related Manuals for Compaq P1610

Summary of Contents for Compaq P1610

  • Page 1 Compaq Computer Corporation. © 1997 Compaq Computer Corporation. All rights reserved. Printed in Singapore. Compaq, Deskpro, and QVision are registered in the U. S. Patent and Trademark Office. Microsoft, MS-DOS, Windows, Windows NT, and other names of Microsoft products referenced herein are trademarks or registered trademarks of Microsoft Corporation.
  • Page 2 NGLISH Introduction The Compaq P1610 Color Monitor is a high-resolution, wide screen display intended for use with high-end graphics controller boards capable of high definition television (HDTV) format. The wide screen is recommended for video animation; advanced graphics user interfaces (GUIs); high performance...

  • Page 3: Product Features

    1920 × 1035 to 1920 × 1200 with varying horizontal and vertical frequencies. For information on where to obtain a graphics adapter that supports these resolutions, refer to your Compaq authorized reseller or dealer. 1-2 English...
  • Page 4 Compaq World Wide Web site (www.compaq.com). If the updated Universal Driver Manager that supports the Compaq P1610 Monitor is not available on the Web site, contact your authorized Compaq dealer or reseller. You can order the Support Software CD for Compaq Desktop, Portable, and Workstation Products.

  • Page 5: Setting Up The Monitor

    The annual subscription ensures your continuous access to the latest developments. For help and service outside of the U.S. and Canada or to order the CD or backup diskettes, contact your Compaq authorized reseller, dealer, or service provider. Setting Up the...
  • Page 6 2. Connect one end of the standard monitor signal cable 1 to the monitor, and the other end to the 15-pin connector on the rear panel of the computer and tighten the screws. Be sure the signal cable aligns with the 15-pin connector. Do not force the cable onto the connector or you may damage the signal cable.
  • Page 7 Signal Warning Function If something is wrong with the input signal, one of the following messages will display for 30 seconds when the monitor is turned on and off, or when the computer select switch is operated (refer to page 1-9 for an explanation of the computer select switch): Please check the signal (indicates the cable is not connected)
  • Page 8 1 Red (R) for the red video connector 2 Green (G) for the green video connector 3 Blue (B) for the blue video connector 4 White for horizontal sync (H) 5 Black for vertical sync (V) 2. Connect the other end of the signal cable to the 15-pin graphics connector on the back of your computer.

  • Page 9: Operating The Monitor

    Operating the Monitor Front Control Panel Icon Control Function Computer Signal Selects which computer signal to input when two Switch computers are connected to the monitor at the same time. Reset Button Resets operating on-screen display (OSD) adjustments to factory preset levels. Option Button Displays adjustments to: 1.
  • Page 10 Front Control Panel (Continued) Icon Control Function Size Button Displays adjustments for picture sizing. Center Button Displays adjustments for picture position. Brightness 1. Adjusts Brightness. 2. The −/+ ( Buttons ) buttons also make adjustments to OSD screens. Contrast Buttons 1.
  • Page 11 Making Adjustments Using the OSD To make a selection from the on-screen display: 1. Press the button of your choice on the front control panel. 2. Select a function from the menu displayed on screen by pressing the Brightness icon −/+ ( ) buttons on the front panel.
  • Page 12 Selecting a Language from the On-Screen Display Repositioning the OSD Menu To change the position of the OSD on the monitor screen: 1. Press the Option button to display the Option OSD menu. 2. Select OSD Position by pressing the Brightness −/+ buttons on the front panel.
  • Page 13 Once Lock is selected, any function selected other than the Power switch, the Option button, or the Input select switch will be inactive and the lock icon will appear on the screen. To cancel the control lock, repeat the previous procedure and press the Contrast button (←) to select Unlock.
  • Page 14 Screen OSD Press the Screen button to display the Screen OSD menu; then press the Brightness −/+ buttons to select one of the following functions: Horizontal Convergence: Press the Contrast −/+ buttons to adjust left and right positions of the red or blue shadows to make them disappear.
  • Page 15 Landing: Improves color uniformity and corner darkness of the screen. To adjust the color uniformity, follow these instructions: 1. Press the Brightness −/+ buttons to select Degauss. 2. Press the Contrast + button to degauss the screen. 3. Display an entirely white picture for more than 20 minutes before making the adjustment.
  • Page 16 Size OSD Press the Size button and select one of the following: To vertically adjust the screen size, press the Brightness buttons: 1. Press ↓ to decrease the vertical size. 2. Press ↑ to increase the vertical size. To horizontally adjust the screen size, press the Contrast buttons: 3.
  • Page 17 Contrast Press the Contrast button, then complete the following: Press Contrast button ← to decrease the contrast. Press Contrast button → to increase the contrast. To turn off the OSD, wait 3 seconds for it to automatically disappear. Using Expert Mode Expert mode allows adjustments to be made to the OSD in greater detail.
  • Page 18 To reset a particular parameter of a particular color temperature: Select the parameter as selected in step 2 above, then press the reset button. The selected parameter is reset. Screen OSD Press the Screen button to display the Screen OSD, then complete the following: 1.
  • Page 19 Screen OSD Menu in Expert Mode Brightness/Contrast Press the Brightness button or the Contrast button to display the Brightness/Contrast OSD, then complete the following: 1. Press the Brightness −/+ buttons to select Preset. 2. Press the Contrast −/+ buttons to select a preset number. Press the Brightness −/+ buttons to adjust picture brightness.
  • Page 20 Geometry OSD Press the Geometry button to display the Geometry OSD, then complete the following: 1. Press the Brightness −/+ buttons to select a parameter. 2. Press the Contrast −/+ buttons to adjust the parameter: H Pincushion/H Pin Bal: Corrects distortion at picture edges.
  • Page 21 The video controller signal may occasionally call for a mode that is not preset if: You are not using a compatible Compaq graphics adapter. You are not using a preset mode. If this occurs, you may need to readjust the parameters of the monitor screen by using the on-screen display.

  • Page 22: Energy Saver Feature

    To revert back to the factory default settings, select Reset from the Factory Reset menu in the on-screen display, and the factory default resolutions will replace the user changes made for the operating original display mode. Energy Saver The energy saver feature has three different modes of operation: Feature Full power mode...

  • Page 23: Care And Maintenance

    Care and This section explains how to care for and maintain your Compaq monitor during normal everyday use. Maintenance To protect your monitor from overheating and other types of damage, follow these suggestions: Use only a power source and connection appropriate for this monitor, as indicated on the marking label/back plate.
  • Page 24 If the monitor is not operating properly or has been dropped or damaged, contact your Compaq authorized dealer, reseller, or service provider. Cleaning the Monitor To clean the monitor, follow these steps: Turn off the monitor and the computer.

  • Page 25: Adjusting Picture Quality

    Adjusting Picture Allow the monitor to warm up for 30 minutes before performing the following procedures. The picture image Quality stabilizes after a warm-up period. This monitor uses an aperture grille CRT for excellent screen performance. At times the shadows of two thin, horizontal damper wires may appear on the screen background.

  • Page 26: Federal Communications Commission Notice

    Modifications The FCC requires the user to be notified that any changes or modifications made to this device that are not expressly approved by Compaq Computer Corporation may void the user's authority to operate the equipment. Cables Connections to this device must be made with shielded cables with metallic RFI/EMI connector hoods to maintain compliance with FCC Rules and Regulations.
  • Page 27 Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada. German Ergonomics Notice Compaq Computers, when tested with the Compaq 633 Series monitors, were evaluated and found compliant to the requirements of ZH 1/618 (German Safety Regulations for Display Work Places in the Office Sector) in the Text Mode (720 ×...
  • Page 28 European Notice Products with the CE Marking comply with both the EMC Directive (89/336/EEC) and the Low Voltage Directive (73/23/EEC) issued by the Commission of the European Community. Compliance with these directives implies conformity to the following European norms: EN55022 (CISPR 22) - Radio Frequency Interference EN50082-1 (IEC801-2, IEC801-3, IEC801-4) - Electromagnetic Immunity EN60950 (IEC950) - Product Safety...

  • Page 29: Specifications

    PECIFICATIONS Compaq P1610 Color Monitor Display 24-in aperture grille CRT 60.96 cm Viewable Image Size 22.5-in 57.15 cm (diagonal) Screen Treatment Antireflective/antistatic coating Approximate Weight (Unpacked) 90 lb 41 kg Maximum Dimensions Height 19.7-in 50.0 cm Depth 21.6-in 54.8 cm Width 22.8-in...
  • Page 30 Acceptable Signal Transmission Schemes The following input sync information is for users who connect this monitor to a non-Compaq computer. You may need to provide your own cables or connectors to the computer. If you are a nontechnical user and need more information than is provided, contact a Compaq authorized dealer, reseller, or service provider.

  • Page 31: Power Cord Set Requirements

    Power cord sets must meet the requirements of the country where you use the monitor. For more information on power cord set requirements, contact your Compaq authorized dealer, reseller or service provider. General Requirements The requirements listed below are applicable to all countries: 1.
  • Page 32 Country-Specific Requirements Power Cord Set Requirements: By Country Accredited Applicable Note Country Agency Numbers Australia EANSW Austria Belgium CEBC Canada Denmark DEMKO Finland FIMKO France Germany Italy Japan MITI The Netherlands KEMA Norway NEMKO Sweden SEMKO Switzerland United Kingdom United States Notes: 1.
