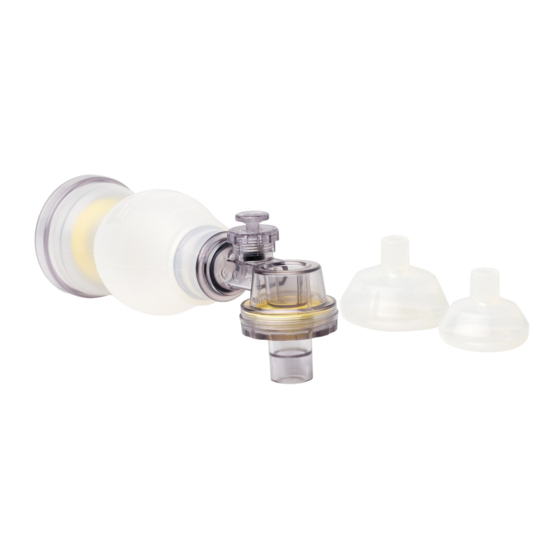

- Page 1 NeoNatalie Resuscitator Newborn - Reusable Directions for Use QTY 1 each Cat.No. 846040 Please read these Directions for Use carefully to become thoroughly familiar with proper operation and maintenance of this resuscitator before using it. Att_1_to_00011275_RevC.indd 1 05.10.12 16:03...
-
Page 2: Table Of Contents
Laerdal hopes to contribute to such widespread training by providing the NeoNatalie Resuscitator and other NeoNatalie products on a not-for-profit basis to developing countries. NeoNatalie is a trademark of Laerdal Medical AS or its afflliates. Ownership and all rights reserved. 1 Intended Use This resuscitator is a self-inflating, manual resuscitator intended for newborns and infants (up to 5 kg) who require respiratory support. -
Page 3: Items Included (Main Unit)
846131 Oxygen Reservoir Bag and Tubing (NeoNatalie) 846145 Valves/Membranes, Complete set (NeoNatalie) 846136 Silicone Mask no. 0 (NeoNatalie) Qty. 10* 846137 Silicone Mask no. 1 (NeoNatalie) Qty. 10* *Masks are bulk packed: 10 masks in 1 polybag. Cat No. 846040 Cat No. -
Page 4: Resuscitator Overview
Incorrect operation of the resuscitator can be hazardous. This resuscitator should not be used in poisonous or hazardous atmospheres. Do not use the resuscitator if you have any reason to be concerned about its functionality. Use only NeoNatalie Resuscitator parts with this resuscitator. Att_1_to_00011275_RevC.indd 4 05.10.12 16:03... -
Page 5: General Hygiene
6 General Hygiene During Training The resuscitator must be kept clean at all times: • Wipe all surfaces clean with a wet cloth before and after each training session. • If necessary use warm, soapy water. Wash hands between users. For Patient Use After each use, dis-assemble the resuscitator: • Wash and scrub all parts in soapy water. - Page 6 2. Check the resuscitator for leakage Seal the patient port connector to the palm of one hand. With the other hand press the index finger against the pressure release valve and squeeze the bag to ensure that no air escapes through the pressure release valve or from the bag. No air flow 3.
-
Page 7: Using The Resuscitator
To override: Press downwards on the pressure release valve. Note: For ventilation training with the NeoNatalie Newborn Simulator, use the largest mask (no.1). For ventilation of a real patient, use the mask size that provides the best seal to the patient’s face. -
Page 8: Dis-Assembling The Resuscitator
9 Dis-assembling the Resuscitator Dis-assemble the resuscitator before performing the cleaning procedure. Also see Section 4 - Resuscitator Overview before dis-assembling the resuscitator. 1 Pull the patient mask from the patient 2 Pull the patient valve from the bag. port connector. 3 Unscrew the pressure release valve 4 Remove the pressure release valve. - Page 9 LAERDAL 9 Pull the inlet valve disk membrane free The resuscitator can now be cleaned and from the ring in the inlet valve housing.
- Page 10 10 Cleaning and Disinfection 1. Cleaning 1 Wash all parts in warm water using a mild detergent. Use a scrub brush / bottle brush to remove any soil. 2 Rinse the parts carefully with clean water to remove all soil and detergent. 3 Repeat the above steps.
-
Page 11: Re-Assembling The Resuscitator
11 Re-assembling the Resuscitator To re-assemble the resuscitator, perform the steps described under Section 9 - Dis-assembling the Resuscitator, in reverse. 12 Storage For clinical use, store according to local protocol. For training, keep in the supplied resuscitator’s storage pouch. 13 Glossary of symbols This product is in compliance with the essential requirements of Council 0434... - Page 12 Fax +47 51 52 35 57. E-mail: Laerdal.norway@laerdal.no Made in China NeoNatalie Resuscitator, Newborn - Reusable, the Laerdal Logo, and “helping save lives” are all trademarks of Laerdal Medical. © 2012, Laerdal Medical AS. All rights reserved. Att_1_to_00011275_RevC.indd 12 05.10.12 16:03...
