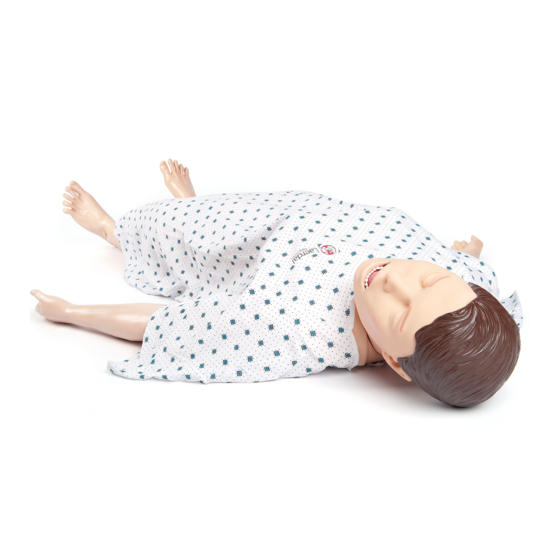

Nursing Anne Basic is a full-body, lifelike vinyl manikin designed to teach all skills from basic patient handling to advanced nursing. The manufacturing quality of this simulator should provide many sessions of training when reasonable care and maintenance are practiced.
(3) Urinary Valves (3) Anal Valves (1) Simulated Blood Concentrate (1) 100 cc Syringe (1) Manikin Lubricant (1) Assembly Tool Kit Wig seen on front cover, not included. See next page for contents of Wound Care & Assessment Set. 325-20001 Laerdal...
• Tracheostomy care and suctioning • IV care and management • Subcutaneous and intramuscular injection • Oxygen delivery procedures • Ostomy irrigation and care • Catheterization skills • Enema simulation • Colonic irrigation • Wound assessment and care • Bandaging and dressing 325-20001 Laerdal...
Laerdal Recommends: Teeth – To remove: Insert and remove bottom teeth first Grasp firmly and lift. when performing denture care. To reinsert both sets: a. Begin on one side and work around, aligning ridges with corresponding grooves in jaws. (Dusting with baby powder is helpful.)
NG Tube Placement – Laerdal Recommends: This manikin features an esophagus and stomach reservoir for practice For best results, lubricate the of NG tube insertion and skills such tube with either silicone as Lavage and Gavage. spray or liquid detergent prior to NG or OG tube Intubation –...
1. Attach valve and genitalia. 2. Work plate edges into pelvis cavity. The belly plate with colostomy stoma also serves as the urinary reservoir. Laerdal Recommends: To fill reservoir: a. Remove colostomy stoma. Make sure genitalia and b. Fill with fluid.
Fig. 1 shoulder. 7. Add large washer, spring, another large washer and wing nut to bolt inside manikin’s chest. (Figure 1) 8. Use a screwdriver to hold bolt steady while tightening wing nut. To remove arms, reverse procedure. 325-20001 Laerdal...
7. Use screwdriver to hold bolt while tightening wing nut. (Figure 2) Fig. 2 To remove legs, reverse procedure. IV Arm – Laerdal Recommends: Multiple Venipuncture sites: • Dorsal Veins of Hand (3) A 20 gauge needle or smaller is • Cephalic Vein recommended to extend the life •...
Page 14
Laerdal Recommends: When excessive leaking occurs at puncture sites, either a new vein system or skin should be installed to reduce loss of fluid. We recommend working at a sink when replacing the skin and vein system. Replacing Skin and Veins: Remove skin: If replacing skin and veins, cut off skin.
Page 15
(We recommend a fast-drying glue.) Figure 5 6. Generously lather arm mandrel with liquid soap. Laerdal Recommends Heat arms skins before replacing on mandrel. This can be done with a blow- dryer 7. Slide hand into skin. (Photo 3)
Page 16
8. Work skin over fingers, as with a glove. (Photo 4) Photo 4 9. Work arm skin up, over mandrel. (Photos 5 & 6) Photo 6 Photo 5 325-20001 Laerdal...
(Long valve connects urinary reservoir; short valve connects anal reservoir.) Pelvic support pin must be removed and replaced immediately when assembling and disassembling genitalia. (Figure 6) Laerdal Recommends Fig. 6 Pelvic support pin must be replaced. Failure to replace pin will result in pelvic spread.
Page 18
6. Press belly plate into position. Long valve connects urinary reservoir; short valve connects anal reservoir. Slide tube to meet ridge Area where clamp is on connector. placed. Photo 7 Photo 8 Apply clamp and squeeze to tighten. Photo 9 325-20001 Laerdal...
Reservoir should be removed from manikin, inverted, drained and completely air-dried before storing. Photo 10 Urinary Catheterization and Enema Simulation – Laerdal After several uses, catheter Recommends: may “hang” when water has washed away lubricant, Catheters should be causing friction and binding. If...
6. Store properly between teaching sessions. Warranty Laerdal Medical warrants to the purchaser that its products are free from defects in material and workmanship for a period of one (1) year from the date of...
Page 21
During the designated one (1) year period, Laerdal Medical will, upon receipt of a product found to be defective due to materials or workmanship from the purchaser and notification in writing of the defect, at its option repair or replace any parts found to be defective or the entire product.
Page 23
Pad Assembly, Ventral Gluteal Injection Adult Female 325-00250 Pad Assembly, Gluteal Injection Adult Female 325-00350 Kit, Skin/Vein Adult Female Multi-Venous IV 325-00550 Wound Set, Care and Assessment Adult Female 325-00950 Lung Assembly, Small- Adult Intubation Head 325-01150 Genitalia, Blank-Adult Female 325-20001 Laerdal...
Page 24
Venous IV Training 325-20150 Chest plate, Deluxe Hospital Torso Adult Female 325-20250 Torso, Deluxe Hospital Adult Female 325-20350 Head Assembly, Intubation w/Trach Adult Female Please contact Customer Service Representatives for more information on Replacement Parts in other skin tones. 325-20001 Laerdal...
