  • Page 1 Laerdal Suction Unit Reusable & Serres User Guide LSU Reusable Cat.no 78 00 00 LSU Serres Cat.no 78 00 30 www.laerdal.com...
  • Page 3 Contents Intended Use Important Information Overview LSU Reusable LSU Serres User Interface Assembly LSU Reusable Canister System LSU Serres Suction Bag System Emptying LSU Reusable Emptying LSU Serres Cleaning Reusable Parts Serres LSU Cabinet Device Test Service and Maintenance Battery...
  • Page 4: Intended Use

    Intended Use The Laerdal Suction Unit (LSU) is a portable, electrically powered, medical suction equipment intended for field and transport use. It is intended for intermittent operation to remove secretions, blood or vomit from a patient´s airway to allow ventilation.
  • Page 5: Important Information

    • Do not block the Exhaust Outlet during use. This will lead to reduced flow and can also cause damage to the LSU. • The LSU Reusable must not be used without the Aerosol Filter or the Float Ball. • Disconnect the LSU from external power prior to cleaning. Use a minimum amount of liquid to prevent any electrical shock hazard.
  • Page 6 Battery Cautions • Only use batteries approved by Laerdal Medical. Other batteries will have problems related to the battery status indicator of the LSU, the battery operation time and safety. • The LSU must be charged between each clinical use.
  • Page 7: Overview

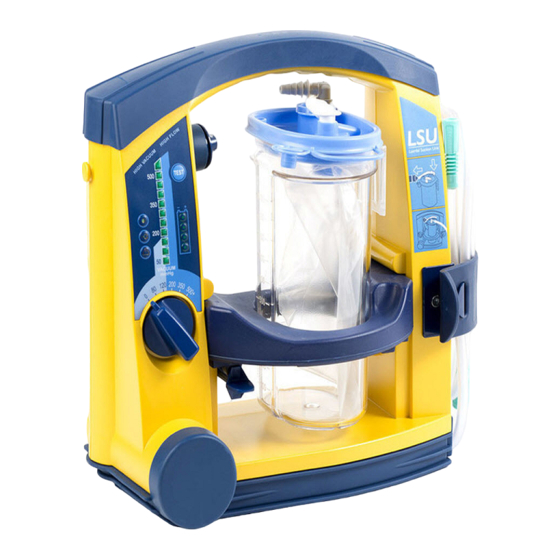

    Overview LSU Reusable Vacuum Inlet Aerosol Filter Vacuum Seal Power Inlet (on the back) Quick Reference Canister Lid Angled Connector Suction Catheter Adapter Gasket Patient Inlet Patient Float Ball Suction Tubing Water Bottle Holder for Water Bottle/Patient Suction Tubing. Canister Holder...
  • Page 8: Lsu Serres

    Overview LSU Serres Vacuum Inlet Serres Vacuum Connector Patient Inlet Quick Reference Suction Tube Holder for Suction Tubing Canister Holder Battery Door Serres Suction Release Arm Bag with filter User Interface Canister...
  • Page 9: User Interface

    Overview User Interface Test Button Run the Device Power On Indicator Test program • Continuously lit - LSU is switched on. • Rapid flash (approx. Vacuum Indicator* twice per second) - Actual vacuum level Device Test in progress. during operation. •...
  • Page 10: Assembly

    Assembly LSU Reusable Canister System CLICK CLICK...
  • Page 11: Lsu Serres Suction Bag System

    Assembly LSU Serres Suction Bag System CLICK Note Turn the operating knob to 500+ mmHg. Block the Patient Inlet with your thumb and simultaneously push the lid down. The lid is properly installed when vacuum has reached 500 mmHg. Release the Patient Inlet and make sure that the bag is fully inflated.
  • Page 12 • Check that the lid of the canister is properly sealed: block patient inlet and turn on the LSU. Vacuum will build up when all parts are assembled correctly. • Attach appropriate suction catheter if necessary. (Not supplied by Laerdal Medical). 1. Unwind the Suction Tubing. Set the Operating Knob to the required vacuum level.
  • Page 13 • Inspect all parts of the LSU for damage and excessive wear. Replace parts if necessary. • Clean the LSU cabinet. Clean and disinfect reusable parts. See Cleaning section. • LSU Serres: The Serres Vacuum Connector should be replaced regularly. Place an unopened Serres Suction Tube on the side of the LSU.
  • Page 14: Emptying Lsu Reusable

    Emptying LSU Reusable To prevent damage and keep the LSU in good working order; empty the Canister (Reusable) or replace the Suction Bag (Serres) when 3/4 full. Overflow of suctioned material can damage the LSU. Empty the Canister - LSU Reusable When liquid reaches the top of the Canister, the LSU will stop suctioning.
  • Page 15: Emptying Lsu Serres

    1000 ml, the LSU will not suction any more. If overflow of liquid from the bag into the pump is suspected, contact Laerdal Service. See Service and Maintenance section. Safely dispose of the Serres Suction bag and suction tube according to...
  • Page 16: Cleaning

    Cleaning Decontaminating and disinfection of Reusable Canister – LSU Reusable 1. Dismantle • Dismantle parts to be decontaminated after each use. • The Float Ball can be snapped out of the lid. 2. Rinse • Rinse all parts under cold running water a total of 3 times.
  • Page 17: Reusable Parts

    Cleaning 4. Disinfection of Reusable Parts Method Post- treatment Steam 100 °C Glutaraldehyde Rinse all 10-20 minutes Room temperature / concentration: 2% parts warm 60 minutes. water. Allow Steam 100 °C 10-20 minutes to dry. Disinfect Glutaraldehyde Sodium Hypochlorite (not cleared for...
  • Page 18: Serres

    Cleaning Cleaning - LSU Serres Parts to be cleaned or replaced regularly: Serres Canister Serres Vacuum Connector The disposable parts must be replaced after each use. Clean the Serres canister if needed according to manufacturer’s instructions for use. Clean the Serres Vacuum Connector by wiping with a damp cloth or a sponge. Do not autoclave or attempt to disassemble.
  • Page 19: Device Test

    Device Test The Device Test is a user initiated test program to identify whether the LSU operates satisfactorily or if it needs service. If the device is not in frequent use (i.e. less than once a month), the Device Test should be performed both on a monthly basis and after each Cleaning and Assembly process.
  • Page 20 Device Test Run the Test 1. Press and hold the Test Button 2. Hold the Test Button in for 2 seconds. while turning the Operating Knob to 500+ mmHg. 3. The test will start immediately. 4. When LED 2 lights up, block the Patient During test mode, the Power On Suction Tubing with your thumb.
  • Page 21 Device Test 5. Keep the tubing blocked while LED 2, 3 and 4 light up. Release the tubing when LED 1 lights up again. Notes • If the tubing is not blocked within 2 minutes, the test will be interrupted. During interrupted device test, the Power On Indicator will flash slowly.
  • Page 22 Device Test Evaluation of Device Test Results After the test is completed, the Vacuum Indicator will display the results. Press the Test Button to scroll through the results of each test to display the results. Test No. Test result indication Action if test failed Test 1 - •...
  • Page 23 Device Test Troubleshooting for Leakages If the device test has failed, check whether the system is leaking. Run the Device Test at each step, until you find the failure. Note If the LSU does not pass one or more of the steps in this test after suggested actions are taken, the device might need to be returned for service (see the Troubleshooting guide).
  • Page 24: Service And Maintenance

    There are no user serviceable parts inside the cabinet. Do not open the LSU Cabinet. Wear and tear parts of the pump mechanism should be changed every third year. Refer servicing to personnel qualified by Laerdal Medical, or to Laerdal Medical or one of its authorised distributors.
  • Page 25: Battery

    Battery The LSU can be operated from the internal battery, and can be operated or charged from one of the following external power sources: AC mains when used with the AC Power Cord: 100-240 VAC (50/60 Hz). DC mains when used with the DC Power Cord: 12-28 VDC. The LSU battery can also be charged in an optional External Battery Charger.
  • Page 26 Battery Charge the Battery The internal rechargeable battery can be charged directly from external AC or DC power. Ensure the Operating Knob is set to “0”. Connect either external AC or DC power to the LSU and charging will start automatically.
  • Page 27 Battery Replace the Battery CLICK CLICK Caution Use only batteries recommended by Laerdal Medical. When you discard the battery, dispose of safely in accordance with local protocols for Nickel Metal Hydride (NiMH) batteries.
  • Page 28: Troubleshooting

    Troubleshooting Fault Condition Action The LSU does not External Power Indicator Check power cord connections and the external operate with the is not lit when the AC or DC power source. AC or DC Power Operating Knob is Cord connected. set to “0”.
  • Page 29: Specifications

    Specifications Classification Electrically powered medical suction equipment for field and transport use, according to ISO10079-1. High vacuum/high flow. The LSU is designed for use in road ambulances in accordance with IEC 60601-1-12. Not suitable for use in the presence of flammable liquids or gases. Internally powered/class ll equipment type BF, according to IEC 60601-1 The degree of protection provided by the chassis is according to IP34: •...
  • Page 30 Specifications Battery 12 VDC 2 Ah, NiMH, rechargeable Charging Time 3 hours for approx. 80% battery capacity, 4 hours for fully charged. Fuses The LSU has no fuses to be replaced by the user. Supply Mains When the unit is connected to SUPPLY MAINS through one of its power cords, SUPPLY MAINS voltages are present within the unit.
  • Page 31 Side Pouch PVC coated Polyester Shoulder Strap POM + Polyester Wallbracket Aluminium + Steel + PA with fibers Aerosol Filter, LSU Reusable Canister PVC + ABS Styrene-Butadiene Copolymer (SBC) Float Ball, LSU Reusable Canister Vacuum Plug, LSU Reusable Canister Silicone...
  • Page 32 Alternating Current Class II Equipment, according to IEC 60601-1 Type BF applied part, according to IEC 60601-1 Applied part of the LSU is the catheter (not supplied by Laerdal) which is connected to the catheter adaptor. IP34 The degree of protection provided by the chassis according to IP34...
  • Page 33 Specifications Electromagnetic Conformity Laerdal Suction Unit is intended for use in the following environments: Professional Healthcare Facility environment and Emergency Medical Services environment. Essential performance of the LSU is identified as connection of the patient hose to the exhaust outlet. This is prevented by coding of the outlet and identifying the exhaust using a label on the device.
  • Page 34 Specifications Electromagnetic Emissions Tests Emissions Test Standard or test method Compliance RF emissions CISPR 11 Group 1 Class B Harmonic emissions IEC 61000-3-2 Class A Voltage fluctuations/ IEC 61000-3-3 Complies flicker emissions Electromagnetic Immunity Tests Immunity Test Standard or test method Compliance Level Electrostatic discharge IEC 61000-4-2...
  • Page 35: Accessories And Parts

    Accessories and Parts For latest version of Parts and Accessories, visit www.laerdal.com 78 00 00 XX LSU w/Reusable Canister 78 00 30 XX LSU w/ Serres Suction Bag System (Label on back side of cabinet: REF 78 00 xx) Reusable...
  • Page 36 Accessories and Parts Accessories (all versions) 78 20 00 Carrying Bag (full covering) 78 26 00 Wall Bracket w/DC-Power Cord 78 26 10 Wall Bracket w/AC-Power Cord US 78 26 20 Wall Bracket w/AC-Power Cord EU 78 26 30 Wall Bracket w/AC-Power Cord UK 78 26 40 Wall Bracket wo/ Power Cord 78 23 00...
  • Page 37: Warranty

    Warranty The LSU comes with a five (5) year limited warranty*. See the enclosed “Laerdal Global Warranty” for terms and conditions. The warranty is also available at www.laerdal.com. * Excluding the canister, tubing systems and battery...
  • Page 40 © 2017 Laerdal Medical AS. All rights reserved. Manufacturer: Laerdal Medical AS P.O. Box 377, Tanke Svilandsgate 30, 4002 Stavanger, Norway T: (+47) 51 51 17 00 Printed in Norway www.laerdal.com...
