3.4

CONNECTOR PIN-OUT

The CIO-DAS6402 analog connector (Figure 3-8) is a 100 pin high-density connector accessible from the rear of the PC through
the expansion back plate.
The connector interfaces with the C100FF-2, a two-foot cable. This cable connects directly to the CIO-TERM100 screw terminal
board.
LLG N D
IN 0+
IN 0-/IN 32+
IN 1+
IN 1-/IN 33+
IN 2+
IN 2-/IN 34+
IN 3+
IN 3-/IN 35+
IN 4+
IN 4-/IN 36+
IN 5+
IN 5-/IN 37+
IN 6+
IN 6-/IN 38+
IN 7+
IN 7-/IN 39+
LLG N D 18
IN 8+
IN 8-/IN 40+
IN 9+
IN 9-/IN 41+
IN 10+
IN 10-/IN 42+
IN 11+
IN 11-/IN 43+
IN 12+
IN 12-/IN 44+
IN 13+
IN 13-/IN 45+
IN 14+
IN 14-/IN 46+
IN 15+
IN 15-/IN 47+
G R O U N D F O R D A C 0 35
D A C 0 O U T PU T 36
G R O U N D F O R D A C 1 37
D A C 1 O U T PU T 38
C T R 0 C LK IN 39
D IN 2/C T R 0 G AT E 40
C O U N T E R 0 O U T P U T 41
D IN 0/AD PA C E R IN 42
D IN 1/AD G AT E /A D T R IG 43
D IN 3 44
D IN 4 45
D IN 5 46
-5V R EF O U T 47
+5V S U PP LY O U T 48
S S H O U T 49
C H A SS IS G N D 50

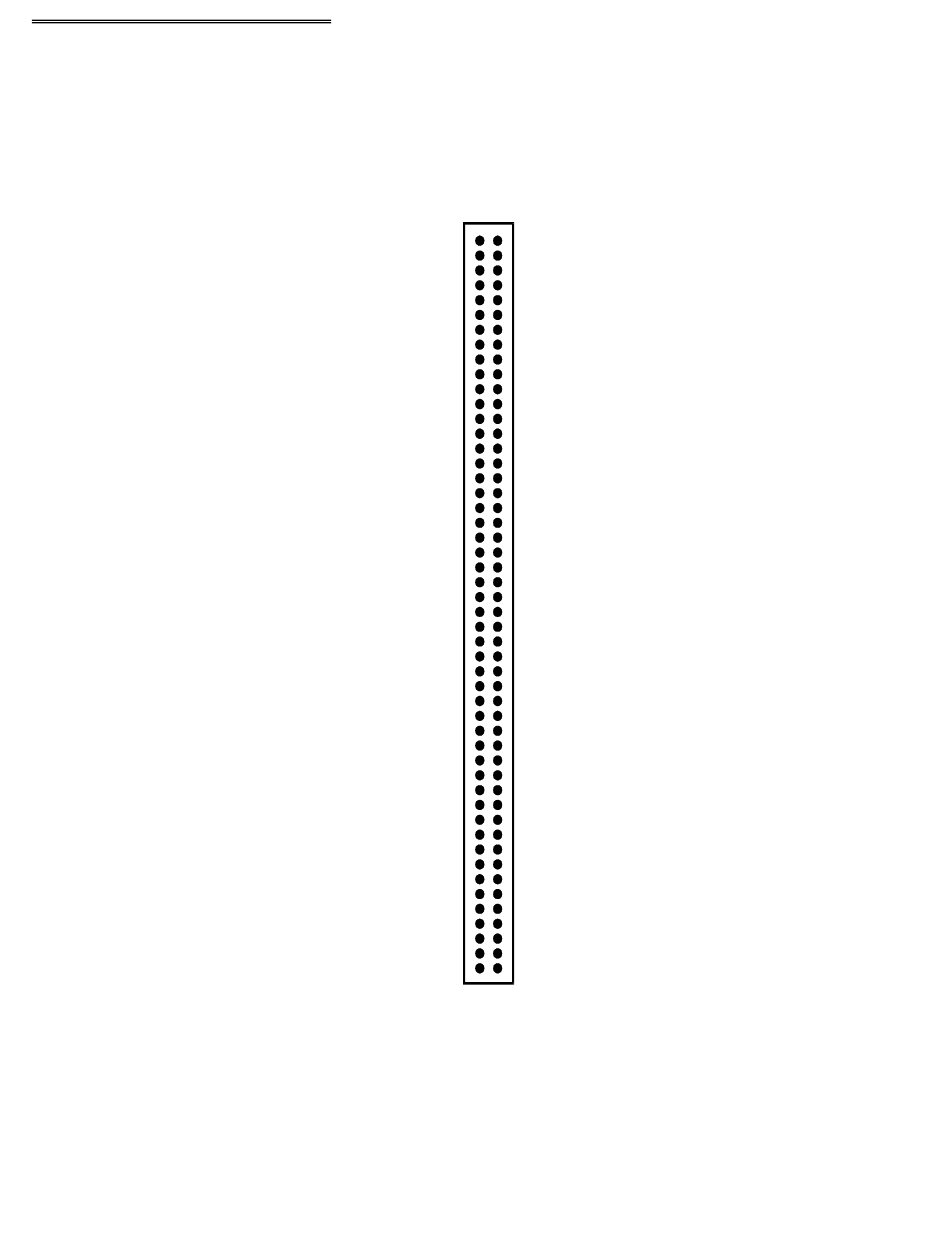

CIO -DA S6402 ANALOG SIGNAL C ONNECTOR - View from rear of the com puter.
Figure 3-8. 100-Pin I/O Connector
1 51 LLG N D
2 52 IN 16+
3 53 IN 16-/IN 48+
4 54 IN 17+
5
55 IN 17-/IN 49+
6 56
IN 18+
7 57
IN 18-/IN 50+
8 58 IN 19+
9 59 IN 19-/IN 51+
10 60 IN 20+
11 61 IN 20-/IN 52+
12 62 IN 21+
13 63 IN 21-/IN 53+
14 64 IN 22+
15 65
IN 22-/IN 54+
16 66
IN 23+
17 67 IN 23-/IN 55+
68 LLG N D
19 69 IN 24+
20 70 IN 24-/IN 56+
21 71 IN 25+
22 72 IN 25-/IN 57+
23 73 IN 26+
24
74 IN 26-/IN 58+
25
75 IN 27+
26 76 IN 27-/IN 59+
27 77 IN 28+
28 78 IN 28-/IN 60+
29 79 IN 29+
30 80 IN 29-/IN 61+
31 81 IN 30+
32 82 IN 30-/IN 62+
33
83 IN 31+
34
84 IN 31-/IN 63+
85 D O U T 0
86 D O U T 1
87 D O U T 2
88 D O U T 3
89 C H A S S IS G N D
90 +12V S U P P LY O U T
91 C H A S S IS G N D
92 -12V S U P P LY O U T
93 D IN 6
94 D IN 7
95 D O U T 4
96 D O U T 5
97 D O U T 6
98 D O U T 7
99 E XT E R N A L IN T E R R U P T IN
100 C H A S S IS G N D
