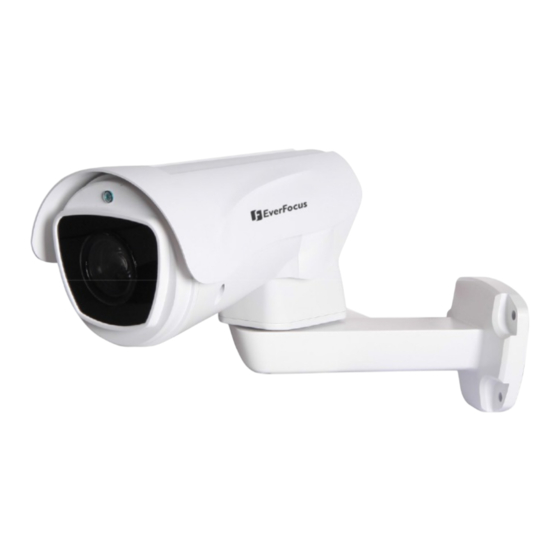

EverFocus EZA6210 User Manual

2megapixel ir night vision outdoor dome ptz camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

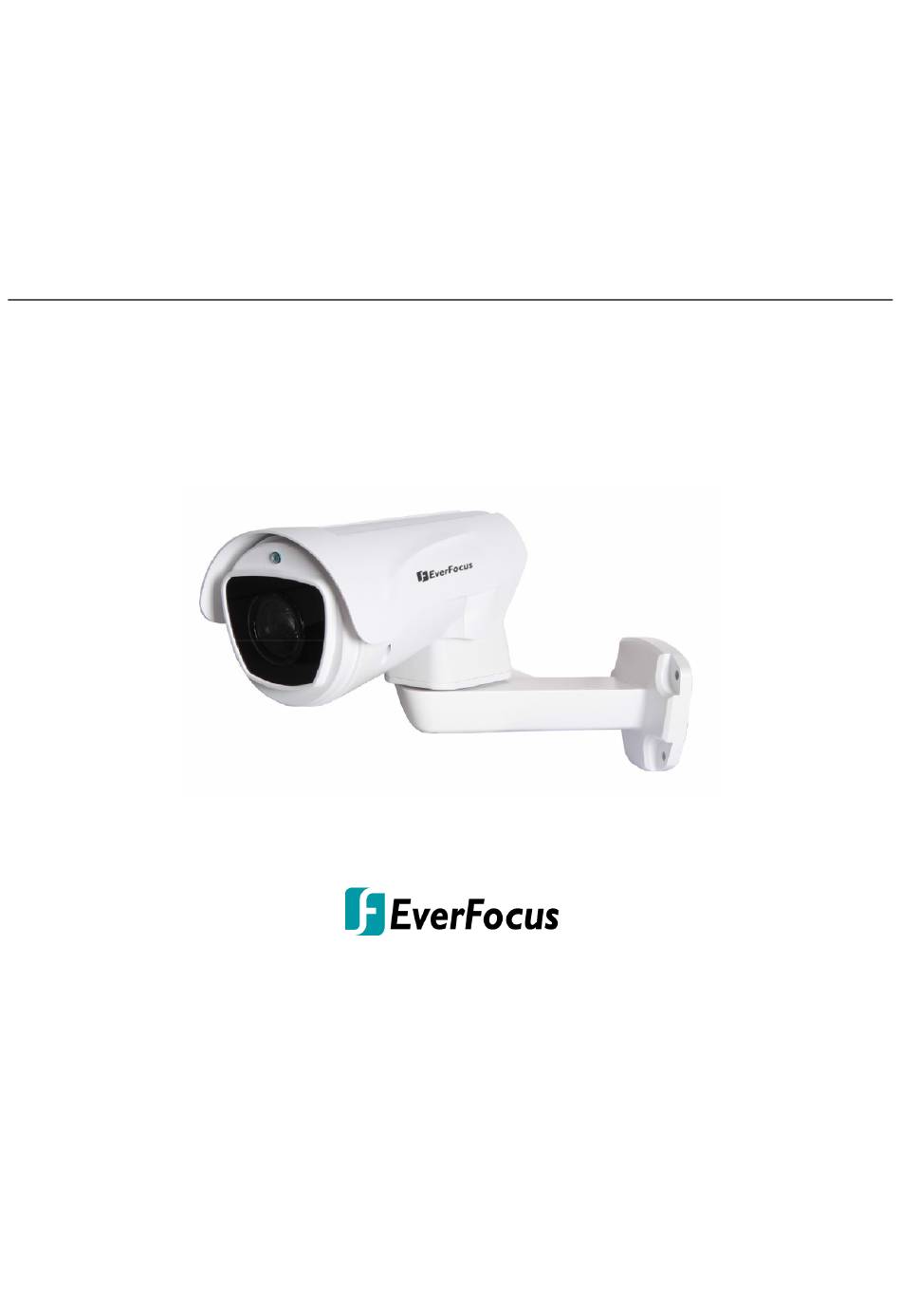

EZA6210
2Megapixel IR Night Vision
Outdoor Dome PTZ Camera
User's Manual
Copyright © EverFocus Electronics Corp.
Release Date: September, 2021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EZA6210 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for EverFocus EZA6210

Summary of Contents for EverFocus EZA6210

  • Page 1 EZA6210 2Megapixel IR Night Vision Outdoor Dome PTZ Camera User’s Manual Copyright © EverFocus Electronics Corp. Release Date: September, 2021...
  • Page 2 Copyright All rights reserved. No part of the contents of this manual may be reproduced or transmitted in any form or by any means without written permission of the EverFocus Electronics Corporation. EverFocus 2F., No.12, Ln. 270, Sec. 3, Beishen Rd., Shenkeng Dist., New Taipei City 222, Taiwan...

  • Page 3: About This Document

    - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Warning: Changes or modifications made to this equipment, not expressly approved by EverFocus or parties authorized by EverFocus could void the user's authority to operate the equipment.
  • Page 4 EZA6210 Precautions 1. Do not install the camera near electric or magnetic fields. Install the camera away from TV/radio transmitters, magnets, electric motors, transformers and audio speakers since the electromagnetic fields generated from these devices may distort the video image or otherwise interfere with camera operation.

  • Page 5: Table Of Contents

    EZA6210 CONTENTS IN T R OD U C TIO N ................................1 Features ........................... 1 Dimensions ..........................1 Packing List ..........................2 Function Description ........................ 2 IN S T ALL A TI ON ................................4 Wall Mounted Bracket ......................4 OPE RA TI ON I N S T R UC T IO N ............................

  • Page 6: Introduction

    EZA6210 1. Introduction Model Lens Power Source EZA6210 10X Optical Zoom; 5.1~51mm DC12V 2A 1.1 Features 2MP Progressive scan CMOS sensor  5.1~51mm motorized lens  PTZ function support , Pan, Tilt, 10x Optical Zoom  Provides True Day/Night functionality with automatic IR filter operation ...

  • Page 7: Packing List

    Note: Equipment configurations and supplied accessories vary by country. Please consult your local EverFocus office or agents for more information. Please also keep the shipping carton for possible future use. 2. Contact the shipper if any items appear to have been damaged in the shipping process.
  • Page 8 EZA6210 If a bright backlight is present, the target in the picture may appear dark or as a silhouette, BLC enhance the target in the center of the picture, the dome uses the center of the pictures to adjust the iris. if there is a bright light source outside this area, it will wash out to white, the camera will adjust the iris so that the target in the sensitive area will properly exposed.

  • Page 9: Installation

    EZA6210 2. Installation 2.1 Wall Mounted Bracket 3. Operation Instruction 3.1 Basic Function Operate the basic functions of PTZ according to the following method after the self-test. This specification is only common instructions.  Zoom Press ZOOM- button to make the lens farther and minify the scene.

  • Page 10: Special Function

    EZA6210  Iris Press IRIS- to gradually shrink the iris and decrease the image brightness. Press IRIS+ to enlarge the iris and increase the image brightness.  Preset Point Setting preset press button “preset”+”number”+”enter”. Calling preset press button “call”+”number”+”enter”. Deleting preset press button “clear”+”number”+”enter”.
  • Page 11 EZA6210 Preset No. Function Preset No. Function 81（41） Auto day/ night Call tour 2 82（42） Switch to night 98（38） Call tour 1 Switch to day 99（39） Pan scan Force on far light Twice 137 Switch to AHD Force on near light...

  • Page 12: Osd Menu Index

    EHA6204 4. OSD Menu Index No. Main Menu Layer Layer Layer Camera SONY-9600-1 Protocol PELCO D-P System Dome ID Comm 2400.N.8.1 Version T345T200803 Exit Device ID Check ID 0000 Target ID Soft Protocol Auto Comm Baud Rate 2400 BPS Comm Reset Save Exit Working Mode...
  • Page 13 EZA6210 Auto Flip Others Exit Exit Camera Auto Zoom Speed Quick Digital Zoom Focus Auto Camera Iris Auto Freeze Exit Language English Language Exit System 25HZ P and T Zoom Action Dispaly Dome ID Comm Time Exit Dome Restart Sys Data...

  • Page 14: Osd Menu

    EZA6210 5. OSD Menu <MAIN MENU> SYSTEM DOME CAMERA DISPLAY LANGUAGE RESET EXIT 5.1 System <SYSTEM> CAMERA SONY-9600-1 PROTOCAL PELCO D-P DOME ID COMM 2400.N.8.1 VERSION EXIT MFG: Max 15 characters display on the screen. CAMERA: Camera module protocol. PROTOCOL: Display the protocol of the dome.

  • Page 15: Dome

    EZA6210 5.2 Dome <DOME> COMM IR DISPLAY GUARD TOURS A-B SCAN PAN SCAN PARK ACTION ADVANCED EXIT...
  • Page 16 EZA6210 4.2.1 COMM <COMM> DEVICE ID 0000 CHECK ID TARGET ID AUTO SOFT PROTOCAL 2400 BPS BAUD RATE COMM RESET SAVE EXIT DEVICE ID: It is only and used to distinct from the ID of other domes. CHECK ID: Distinguishing several domes with same ID and altering target ID, soft protocol and baud rate need to enter check ID in line with the device ID, otherwise altering can’t be completed.
  • Page 17 EZA6210 4.2.2 IR DISPLAY <IR DISPLAY> WORKING MODE Auto TESTING TIME 08 sec. OUTPUT POWER 100% ILLUMINATION ON AMBIENT LIGHT IR SWITCH ZOOM EXIT WORKING MODE: Working mode has auto, black/white, color selectable. Default is auto. TESTING TIME: On IR auto working mode and the programmed time, the IR will execute the programmed action, eg.

  • Page 18: Guard Tour

    EZA6210 4.2.3 GUARD TOUR <GUARD TOUR 01> <GUARD TOUR> POINT TIME SPEED GUARD TOUR SETTING INIT RUNNING DELETE EXIT GUARD TOUR: Total 3 guard tours selectable: 01, 02, 03. SETTING: Each guard tour includes max 16 presets. The number of the preset is from 0-64. 0 is not valid, dwell time is 1 to 60s selectable.

  • Page 19: A-B Scan

    EZA6210 4.2.4 A-B SCAN <GUARD TOUR> PRESET A PRESET B SCAN SPEED 08 sec. DEWELL TIME RUNNING DELETE EXIT PRESET A: On A-B scan, A point can be preset from 0 to 64. PRESET B: On A-B scan, B point can be preset from 0 to 64.

  • Page 20: Park Action

    EZA6210 4.2.6 PARK ACTION <PARK ACTION> PARL MODE PARK TIME 01 min. SETTING CALL DELETE EXIT PARK MODE: Park mode includes OFF, Park action, A-B scan, Pan scan, guard tour01, guard tour02, guard tour03 and Preserve action. When park mode is OFF status, the dome doesn’t run park mode.

  • Page 21: Advanced

    EZA6210 4.2.7 ADVANCED <ADVANCED> PWR ON ACT Memory PATIO SPEED AUTO FLIP OTHERS EXIT PWR ON ACTION: Power on action can be set as Memory, A-B scan, Pan scan, Park action, Guard tour 01, Guard tour 02, Guard tour 03 and No action.

  • Page 22: Camera

    EZA6210 5.3 Camera <CAMERA> Auto ZOOM SPEED Quick DIGITAL ZOOM FOCUS Auto IRIS Auto FREEZE EXIT DIGITAL ZOOM: Not available. FOCUS: Focus is auto and manual selectable. IRIS: Iris is auto and manual selectable. BLC: BLC is ON and OFF selectable.

  • Page 23: Language

    EZA6210 5.4 Language You can select a language for the dome. <LANGUAGE> LANGUAGE English EXIT LANGUAGE: Language can be set English. Default settings are English. 5.5 Display <DISPLAY> SYSTEM 25HZ P AND T ZOOM ACTION DOME ID COMM TIME EXIT SYSTEM: Select a display format.

  • Page 24: Reset

    EZA6210 5.6 Reset <RESET> DOME RESTART SYS DATA CAM DATA PRESET EXIT DOME RESTART: It starts self-test by OSD menu. SYS DAYA: Making all PTZ data recover the factory default. CMA DATA: Recovering camera data as default ( remark: it needs camera support).

  • Page 25: Specifications

    EZA6210 5. Specifications Product Model EZA6210 Camera Image Sensor 1/2.9" SONY 2.1MP CMOS Sensor Image Resolution TV System PAL/NTSC S/N Ratio >50db 30°/S Horizontal Rotation Speed 0°~200° Horizontal Rotation Range 25°/s Tilt Rotation Speed -45°~40° Tilt Rotation Range Preset Points...

  • Page 26: Appendix

    EZA6210 Appendix A. Anti-lightning, Anti-surge This product is extremely air discharge and lightning protection with TVS tube technology, which can effectively prevent the transient lightning below voltage 3000V, surge and damages caused by other types of pulse signals. However, necessary protective measures should be made in the premise of ensuring electrical safety for outdoor installation according to the actual situation : •...

  • Page 27: Clean Transparent Cover

    EZA6210 Clean Transparent Cover In order to assure a clear image of dome, the under cover of dome should be cleaned regularly. • Be careful when cleaning and hold the outer ring of undercover by hands to avoid directly touching with it. Because the acid sweat of finger membrane may corrode the surface coating of undercover.

  • Page 28: Exception Handling

    EZA6210 D. Exception Handling Issue Possible Reason Solution Cable harness is improperly Verify that the orientation of the After power is applied, connected connector input there is no motion Verify the voltage of the input (self-test) and no video Input power voltage is too low power image.
  • Page 29 TEL: +81-3-5625-8188 sales@everfocus.com FAX: +81 3 5625 8189 www.everfocus.co.jp info@everfocus.co.jp Ihr EverFocus Produkt wurde entwickelt Your EverFocus product is designed und hergestellt mit qualitativ and manufactured with high quality hochwertigen Materialien und materials and components which can Komponenten, die recycelt und wieder be recycled and reused.
