Atdec AD-TVC Installation Manual

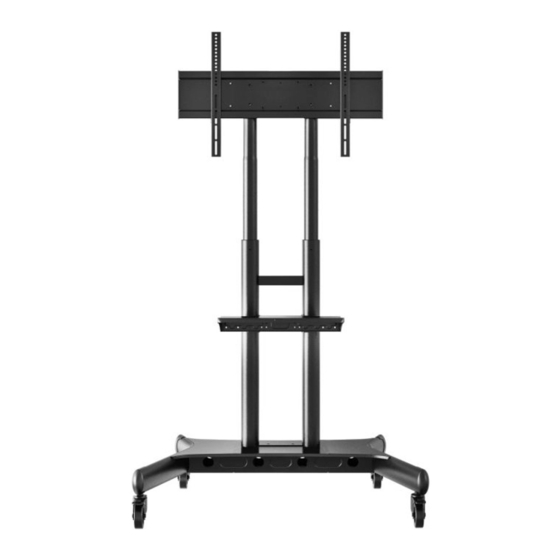

TV Cart
COMPONENT CHECKLIST
E
Bracket
(x2)
G
Rail
(x1)
F
Shelf
(x1)
B
Wheel
(x4)
IMPORTANT INFORMATION
! Please ensure this product is installed as per these installation instructions.
! The manufacturer accepts no responsibility for incorrect installation.
! Note: The maximum load to be applied to the shelf is 5Kg (11lbs)
J
H
D
End Cap 6mm
Upper
(x4) Allen
key
Column
(x1)
(x2)
N
Screw
Screw
M4x16mm M4x35mm
(x6)
C
Lower
Columns
(x1)
N
Screw
Screw
M6x16mm M6x35mm
(x6)
A
P
Washer
Base
M5
(x1)
(x6)
K L M
Screw Screw M8 Spring
M4x8mm M8x14mm
Washer
(x2) (x12) (x6)
N N
N
Screw Screw
M5x16mm M5x35mm
(x6) (x6) (x6)
N
N N
Screw Screw
M8x35mm
M8x16mm
(x6) (x6) (x6)
P P
Washer Spacer
1/4" 12mm
(x6) (x6)
Installation Guide
AD-TVC
REQUIRED TOOLS
• Phillips Head Screwdriver
WEIGHT RANGE
0 - 50kg
(0 - 110lbs)
AD-TVC Page 1 of 2
