WARNING
Location and Installation
System Diagram
© 2015 Marine Canada Acquisition Inc. DBA SEASTAR SOLUTIONS 3831 No. 6 Road, Richmond, B.C. Canada V6V 1P6
SUPPLEMENT INSTRUCTIONS
Copy Part# 682147, Rev. C
Date: 02/2017
DASH PANEL INSTALLATION
INSTRUCTION FOR SINGLE-
ENGINE EPS
Overview
The dash panel is an alternative to the CANtrak display for indicating
steering system status and faults to the vessel operator. It consists
of a two-color LED indicator lamp, an audible buzzer, and a
pushbutton used to mute the buzzer.

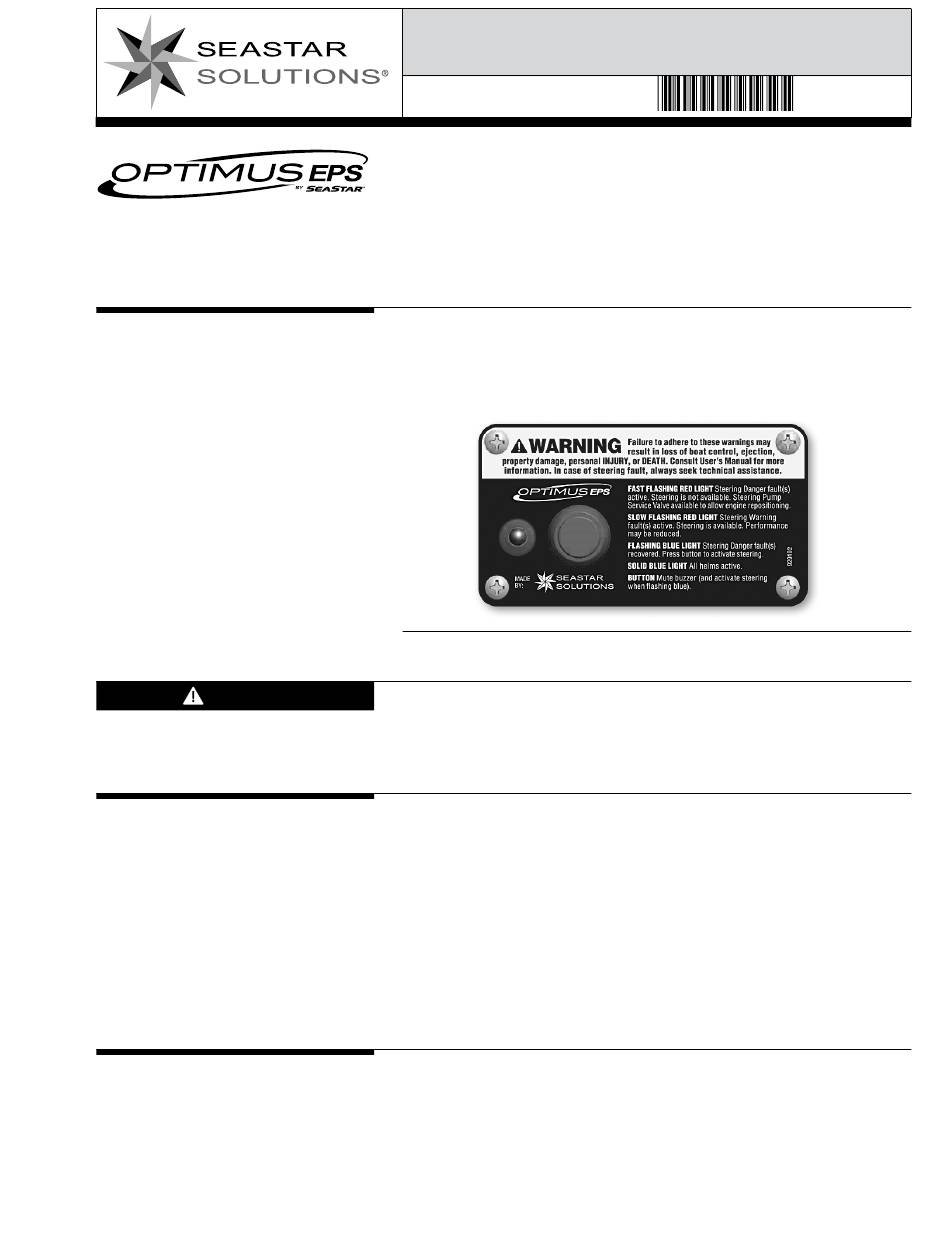

Figure A. Dash panel.
This instruction does not replace your Optimus EPS installation
manual. Read and follow all instructions and safety information
in the installation manual(s) for your system.
Locate the dash panel where it is clearly visible to an operator
at the helm station. Ensure that the pushbutton is easily
accessible. Use the template provided in this instruction to mark
the mounting holes and the required cutouts on the dash. Before
cutting, measure the template and check the dimensions are
correct. If it is not correct it may not have been copied or printed
actual size.
Four #6-32 screws (1.75" long), flat washers, and locking nuts
are provided in the hardware kit. You may substitute different
screws for thinner or thicker dashboards if desired.
Figure B shows the general system diagram for the single-engine
Optimus EPS system with dash panel.
Page 1 of 8
Fax: 604.270.7172
Web: www.seastarsolutions.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the OPTIMUS EPS and is the answer not in the manual?

Questions and answers

Related Manuals for Seastar Solutions OPTIMUS EPS

Summary of Contents for Seastar Solutions OPTIMUS EPS

  • Page 1 System Diagram Figure B shows the general system diagram for the single-engine Optimus EPS system with dash panel. © 2015 Marine Canada Acquisition Inc. DBA SEASTAR SOLUTIONS 3831 No. 6 Road, Richmond, B.C. Canada V6V 1P6 Fax: 604.270.7172 Web: www.seastarsolutions.com...
  • Page 2 PORT AUTOPILOT SMART CYLINDER OPTIONAL Figure B. Optimus EPS system diagram, single station, single engine, with dash panel. © 2015 Marine Canada Acquisition Inc. DBA SEASTAR SOLUTIONS 3831 No. 6 Road, Richmond, B.C. Canada V6V 1P6 Fax: 604.270.7172 Web: www.seastarsolutions.com...
  • Page 3 SIDE OF THE SPLICES FOR STRAIN RELIEF. (PLUG WITH SUPPLIED CAP IF NOT USED) SWITCH PANEL Figure C. © 2015 Marine Canada Acquisition Inc. DBA SEASTAR SOLUTIONS 3831 No. 6 Road, Richmond, B.C. Canada V6V 1P6 Fax: 604.270.7172 Web: www.seastarsolutions.com...
  • Page 4 Seal or TE DuraSeal). These splices are not supplied. Refer to the manufacturer’s documentation for the correct installation tool. © 2015 Marine Canada Acquisition Inc. DBA SEASTAR SOLUTIONS 3831 No. 6 Road, Richmond, B.C. Canada V6V 1P6 Fax: 604.270.7172 Web: www.seastarsolutions.com...
  • Page 5 If two helms are detected on CAN1 the number of helms will Helms change to 2. If a helm is then disconnected the system will fault. © 2015 Marine Canada Acquisition Inc. DBA SEASTAR SOLUTIONS 3831 No. 6 Road, Richmond, B.C. Canada V6V 1P6 Fax: 604.270.7172 Web: www.seastarsolutions.com...
  • Page 6 1–1/2 to 2 turns. Make sure the service valve on the pump is closed. Figure E. © 2015 Marine Canada Acquisition Inc. DBA SEASTAR SOLUTIONS 3831 No. 6 Road, Richmond, B.C. Canada V6V 1P6 Fax: 604.270.7172 Web: www.seastarsolutions.com...
  • Page 7 TIP: When the system is correctly purged the cylinder should have no more than 3/8” of movement when physically shaking the engine back and forth. © 2015 Marine Canada Acquisition Inc. DBA SEASTAR SOLUTIONS 3831 No. 6 Road, Richmond, B.C. Canada V6V 1P6 Fax: 604.270.7172 Web: www.seastarsolutions.com...

  • Page 8: Mounting Template

    If you must photocopy this mounting template for use, check ALL measurements using a measuring device prior to using as a template. © 2015 Marine Canada Acquisition Inc. DBA SEASTAR SOLUTIONS 3831 No. 6 Road, Richmond, B.C. Canada V6V 1P6 Fax: 604.270.7172 Web: www.seastarsolutions.com...
