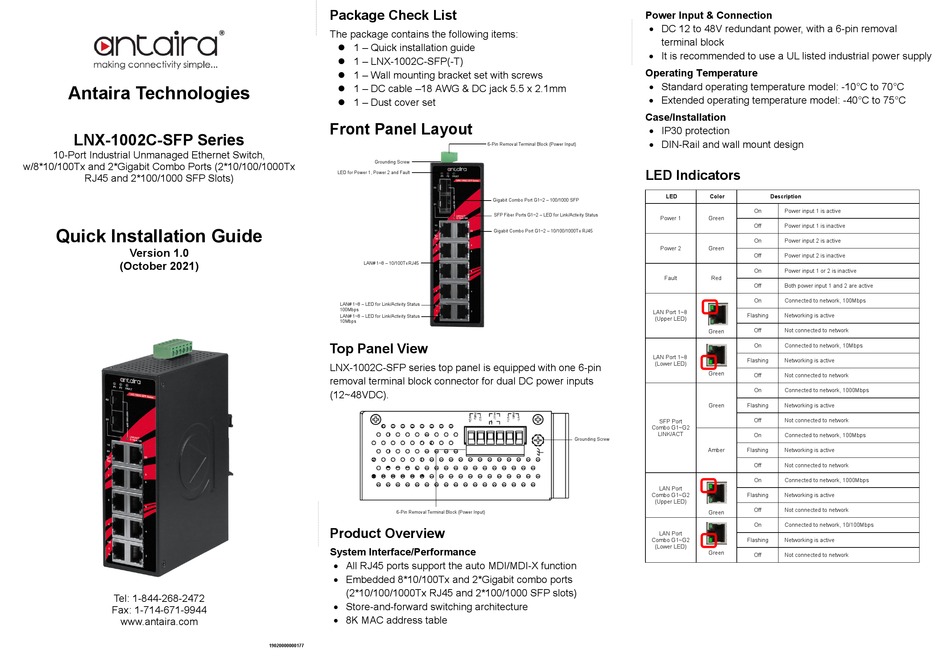

Antaira Technologies
LNX-1002C-SFP Series
10-Port Industrial Unmanaged Ethernet Switch,
w/8*10/100Tx and 2*Gigabit Combo Ports (2*10/100/1000Tx
RJ45 and 2*100/1000 SFP Slots)
Version 1.0
(October 2021)
Tel: 1-844-268-2472
Fax: 1-714-671-9944
www.antaira.com

Package Check List

The package contains the following items:
 1 – Quick installation guide
 1 – LNX-1002C-SFP(-T)
 1 – Wall mounting bracket set with screws
 1 – DC cable –18 AWG & DC jack 5.5 x 2.1mm
 1 – Dust cover set

Front Panel Layout

Grounding Screw
LED for Power 1, Power 2 and Fault
LAN# 1~8 – 10/100Tx RJ45
LAN# 1~8 – LED for Link/Activity Status
100Mbps
LAN# 1~8 – LED for Link/Activity Status
10Mbps

Top Panel View

LNX-1002C-SFP series top panel is equipped with one 6-pin
removal terminal block connector for dual DC power inputs
(12~48VDC).
6-Pin Removal Terminal Block (Power Input)

Product Overview

System Interface/Performance

• All RJ45 ports support the auto MDI/MDI-X function
• Embedded 8*10/100Tx and 2*Gigabit combo ports
(2*10/100/1000Tx RJ45 and 2*100/1000 SFP slots)
• Store-and-forward switching architecture
• 8K MAC address table
19020000000177
Power Input & Connection
• DC 12 to 48V redundant power, with a 6-pin removal
terminal block
• It is recommended to use a UL listed industrial power supply

Operating Temperature

• Standard operating temperature model: -10°C to 70°C
• Extended operating temperature model: -40°C to 75°C

Case/Installation

• IP30 protection
• DIN-Rail and wall mount design
6-Pin Removal Terminal Block (Power Input)

LED Indicators

LED
Gigabit Combo Port G1~2 – 100/1000 SFP
SFP Fiber Ports G1~2 – LED for Link/Activity Status
Power 1
Gigabit Combo Port G1~2 – 10/100/1000Tx RJ45
Power 2
Fault
LAN Port 1~8
(Upper LED)
LAN Port 1~8
(Lower LED)
SFP Port
Combo G1~G2
LINK/ACT
Grounding Screw
LAN Port
Combo G1~G2
(Upper LED)
LAN Port
Combo G1~G2
(Lower LED)
Color
Description
On
Power input 1 is active
Green
Off
Power input 1 is inactive
On
Power input 2 is active
Green
Off
Power input 2 is inactive
On
Power input 1 or 2 is inactive
Red
Off
Both power input 1 and 2 are active
On
Connected to network, 100Mbps
Flashing
Networking is active
Off
Not connected to network
Green
On
Connected to network, 10Mbps
Flashing
Networking is active
Green
Off
Not connected to network
On
Connected to network, 1000Mbps
Green
Flashing
Networking is active
Off
Not connected to network
On
Connected to network, 100Mbps
Amber
Flashing
Networking is active
Off
Not connected to network
On
Connected to network, 1000Mbps
Flashing
Networking is active
Off
Not connected to network
Green
On
Connected to network, 10/100Mbps
Flashing
Networking is active
Green
Off
Not connected to network
