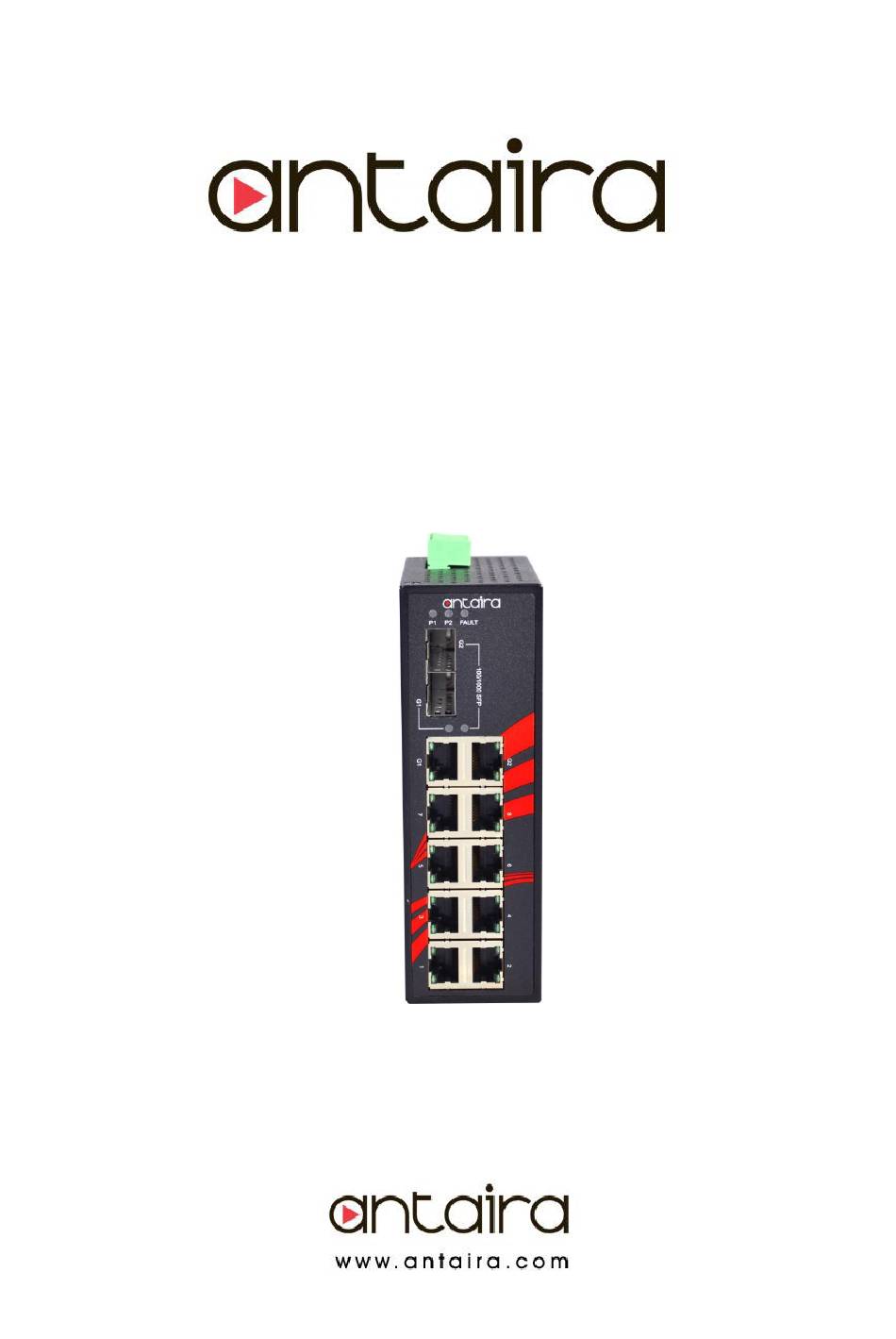

- Page 1 Antaira Technologies - Industrial Ethernet Switches LNX-1002C-SFP series User Manual V1.0 LNX-1002C-SFP Series 10-Port Industrial Unmanaged Ethernet Switches, with 8*10/100Tx and 2* Gigabit Combo Ports (2*10/100/1000Tx RJ45, and 2*100/1000 SFP Slots) User Manual Version 1.0...
- Page 2 Trademark Information Antaira is a registered trademark of Antaira Technologies, LLC, Microsoft Windows and the Windows logo are the trademarks of Microsoft Corp. NetWare is the registered trademark of Novell Inc. WMM and WPA are the registered trademarks of Wi-Fi Alliance.
- Page 3 Industrial Grade Gigabit Unmanaged Ethernet Switches User Manual Version 1.0 (March 2015) This manual supports the following models: LNX-1002C-SFP LNX-1002C-SFP-T This document is the current official release manual. Please check our website (www.antaira.com) for any updated manual or contact us by e-mail (support@antaira.com).
-
Page 4: Table Of Contents
Antaira Technologies - Industrial Ethernet Switches LNX-1002C-SFP Series User Manual V1.0 Table of Contents 1. Overview ............... 1 1.1 Key Features ............1 1.2 Package Contents ..........2 1.3 Safety Precaution ..........2 2. Hardware Description ..........3 2.1 Physical Dimensions .......... 3 2.2 Front Panel ............ -
Page 5: Overview
In addition, the built-in relay warning function alerts maintainers when power failures occur. The LNX-1002C-SFP series includes two models: one with an operating temperature range of -10 to 70°C and the other with an extended operating temperature range of -40 to 75°C. This product series has been designed to fulfill special needs for industrial automation and harsh outdoor environment applications. -
Page 6: Package Contents
Antaira Technologies - Industrial Ethernet Switches LNX-1002C-SFP Series User Manual V1.0 1.2 Package Contents 1 - LNX-1002C-SFP (T): 10-port industrial unmanaged Ethernet switch, with 8*10/100Tx, 2* Gigabit combo ports (2*10/100/1000Tx RJ45, and 2* 100/1000 SFP slots) 1 - User manual ... -
Page 7: Hardware Description
LNX-1002C-SFP Series User Manual V1.0 2. Hardware Description 2.1 Physical Dimensions Figure 2.1, below, shows the physical dimensions of Antaira Technologies’ LNX-1002C-SFP series: 10-port industrial unmanaged switch with 8*10/100Tx and 2* Gigabit combo ports (2*10/100/1000Tx RJ45 and 2*100/1000 SFP slots). -
Page 8: Front Panel
Antaira Technologies - Industrial Ethernet Switches LNX-1002C-SFP Series User Manual V1.0 2.2 Front Panel The front panel of the LNX-1002C-SFP series: 10-port industrial unmanaged switch with 8*10/100Tx and 2* Gigabit combo ports (2*10/100/1000Tx RJ45 and 2*100/1000 SFP slots) is shown below in Figure 2.2. -
Page 9: Led Indicators
Combo G1 ~G2 Flashing Networking is active (Upper LED) Not connected to network Green Connected to network, 10/100Mbps LAN Port Flashing Networking is active Combo G1 ~G2 Not connected to network (Lower LED) Table 2.1 - LED Indicators for the LNX-1002C-SFP Series... -
Page 10: Ethernet Ports
Antaira Technologies - Industrial Ethernet Switches LNX-1002C-SFP Series User Manual V1.0 2.5 Ethernet Ports RJ-45 Ports RJ-45 Ports (Auto MDI/MDIX): The RJ-45 ports (LAN 1~8) are auto-sensing for 10Base-T or 100Base-Tx device connections. The Gigabit combo RJ-45 ports (LAN G1~G2) are auto-sensing for 10Base-T, 100Base-Tx, and 1000Base-T device connections. - Page 11 Antaira Technologies - Industrial Ethernet Switches LNX-1002C-SFP Series User Manual V1.0 The following figures show the cabling schematics for straight-through and crossover cables. Figure 2.4 - Straight-Through Cables Schematic Figure 2.5 - Crossover Cables Schematic The following figures show the 10 and 100 Ethernet RJ-45 pin outs.
-
Page 12: Cabling
(switch, hub, workstation, etc.) must be less than 100 meters (328 ft.) in length. 2.6.1 Gigabit Combo Port - Copper/SFP (Mini-GBIC) Antaira Technologies’ LNX-1002C-SFP series has two auto-detected Gigabit combo ports (2*10/100/1000Tx RJ45 and 2*100/1000 SFP slots for fiber connection). ... - Page 13 Antaira Technologies - Industrial Ethernet Switches LNX-1002C-SFP Series User Manual V1.0 The small form-factor pluggable (SFP) is a compact optical transceiver used in optical communications for both telecommunication and data communication applications. To connect the transceiver and LC cable, please follow the steps below: First, insert the SFP transceiver module into the SFP slot as shown below in Figure 2.9.
- Page 14 Antaira Technologies - Industrial Ethernet Switches LNX-1002C-SFP Series User Manual V1.0 To remove the LC connector from the transceiver, please follow the steps shown below: 1. Press the upper side of the LC connector from the transceiver and pull it out to release as shown below in Figure 2.12.
-
Page 15: Wiring The Power Inputs
Antaira Technologies - Industrial Ethernet Switches LNX-1002C-SFP Series User Manual V1.0 2.7 Wiring the Power Inputs Please follow the steps below to insert the power wire. 1. Insert the positive and negative wires into the PWR1 (V1+, V1-) and PWR2 (V2+, V2-) contacts on the terminal block connector as shown below in Figure 2.14. -
Page 16: Wiring The Fault Alarm Contact
Antaira Technologies - Industrial Ethernet Switches LNX-1002C-SFP Series User Manual V1.0 2.8 Wiring the Fault Alarm Contact The fault alarm contact is in the middle of the terminal block connector as the picture shows below in Figure 2.16. By inserting the wires, it will detect the fault status including power failure or port link failure (managed industrial switch only) and form a normal open circuit. -
Page 17: Mounting Installation
Antaira Technologies - Industrial Ethernet Switches LNX-1002C-SFP Series User Manual V1.0 3. Mounting Installation 3.1 DIN-Rail Mounting The DIN-Rail is pre-installed on the industrial Ethernet switch from the factory. If the DIN-Rail is not on the industrial Ethernet switch, please refer to Figure 3.1 to learn how to install the DIN-Rail on the switch. - Page 18 Antaira Technologies - Industrial Ethernet Switches LNX-1002C-SFP Series User Manual V1.0 Follow the steps below to learn how to hang the industrial Ethernet switch. 1. Use the screws to install the DIN-Rail bracket on the rear side of the industrial Ethernet switch.
-
Page 19: Wall Mounting
Antaira Technologies - Industrial Ethernet Switches LNX-1002C-SFP Series User Manual V1.0 3.2 Wall Mounting Follow the steps below to mount the industrial Ethernet switch using the wall mounting bracket as shown below in Figure 3.4. 1. Remove the DIN-Rail bracket from the industrial Ethernet switch by loosening the screws. -
Page 20: Hardware Installation
LNX-1002C-SFP Series User Manual V1.0 4. Hardware Installation 4.1 Installation Steps This section will explain how to install Antaira Technologies’ LNX-1002C-SFP series: 10-port industrial unmanaged switch with 8*10/100Tx and 2* Gigabit combo ports (2*10/100/1000Tx RJ45 and 2*100/1000 SFP slots). Installation Steps 1. -
Page 21: Network Application
Antaira Technologies - Industrial Ethernet Switches LNX-1002C-SFP Series User Manual V1.0 5. Network Application This segment provides an example of an industrial Ethernet switch application (Figure 5.1). Figure 5.1 Industrial Ethernet Switch Application Reference... -
Page 22: Trouble Shooting
Check for loose power connections, power losses or surges at the power outlet. Please contact Antaira Technologies for technical support service at (844) 268-2472, if the problem still cannot be resolved. ... -
Page 23: Technical Specifications
Antaira Technologies - Industrial Ethernet Switches LNX-1002C-SFP Series User Manual V1.0 7. Technical Specifications Table 7.1 has the technical specifications for Antaira Technologies’ LNX-1002C-SFP series: 10- port industrial unmanaged switch with 8*10/100Tx and 2* Gigabit combo ports (2*10/100/1000Tx RJ45 and 2*100/1000 SFP slots). - Page 24 Antaira Customer Service and Support (Antaira US Headquarter) + 844-268-2472 (Antaira Europe Office) + 48-22-862-88-81 (Antaira Asia Office) + 886-2-2218-9733 Please report any problems to Antaira: www.antaira.com support@antaira.com www.antaira.eu info@antaira.eu www.antaira.com.tw info@antaira.com.tw Any changes to this material will be announced on the Antaira website.
