Antaira Technologies

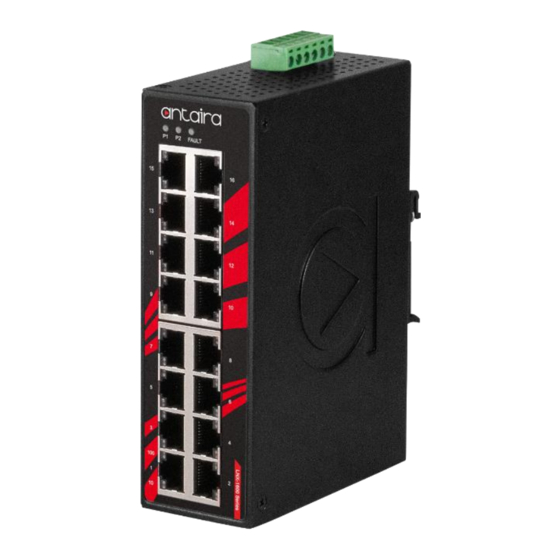

LNX-1600-E Series
16-Port Industrial Unmanaged Ethernet Switch,
with 16*10/100Tx, E-Mark Version

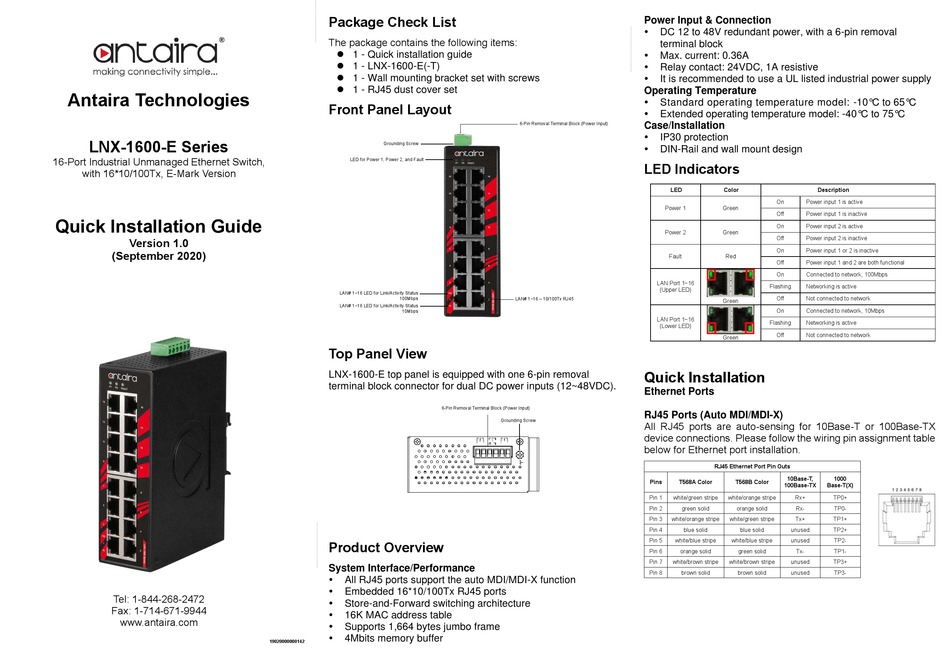

Quick Installation Guide
Version 1.0
(September 2020)
Tel: 1-844-268-2472
Fax: 1-714-671-9944
www.antaira.com

Package Check List

The package contains the following items:
⚫ 1 - Quick installation guide
⚫ 1 - LNX-1600-E(-T)
⚫ 1 - Wall mounting bracket set with screws
⚫ 1 - RJ45 dust cover set

Front Panel Layout

Grounding Screw
LED for Power 1, Power 2, and Fault
LAN# 1~16 LED for Link/Activity Status
100Mbps
LAN# 1~16 LED for Link/Activity Status
10Mbps

Top Panel View

LNX-1600-E top panel is equipped with one 6-pin removal
terminal block connector for dual DC power inputs (12~48VDC).
6-Pin Removal Terminal Block (Power Input)

Product Overview

System Interface/Performance

All RJ45 ports support the auto MDI/MDI-X function
Embedded 16*10/100Tx RJ45 ports
Store-and-Forward switching architecture
16K MAC address table
Supports 1,664 bytes jumbo frame
4Mbits memory buffer
19020000000142
Power Input & Connection
DC 12 to 48V redundant power, with a 6-pin removal
terminal block
Max. current: 0.36A
Relay contact: 24VDC, 1A resistive
It is recommended to use a UL listed industrial power supply

Operating Temperature

Standard operating temperature model: -10°C to 65°C
Extended operating temperature model: -40°C to 75°C
6-Pin Removal Terminal Block (Power Input)

Case/Installation

IP30 protection
DIN-Rail and wall mount design

LED Indicators

LED
Power 1
Power 2
Fault
LAN Port 1~16
(Upper LED)
LAN# 1~16 – 10/100Tx RJ45
LAN Port 1~16
(Lower LED)

Quick Installation

Ethernet Ports

RJ45 Ports (Auto MDI/MDI-X)

Grounding Screw
All RJ45 ports are auto-sensing for 10Base-T or 100Base-TX
device connections. Please follow the wiring pin assignment table
below for Ethernet port installation.
Pins
T568A Color
Pin 1
white/green stripe
Pin 2
Pin 3
white/orange stripe
Pin 4
Pin 5
white/blue stripe
Pin 6
orange solid
Pin 7
white/brown stripe
Pin 8
Color
Description
On
Power input 1 is active
Green
Off
Power input 1 is inactive
On
Power input 2 is active
Green
Off
Power input 2 is inactive
On
Power input 1 or 2 is inactive
Red
Off
Power input 1 and 2 are both functional
On
Connected to network, 100Mbps
Flashing
Networking is active
Off
Not connected to network
Green
On
Connected to network, 10Mbps
Flashing
Networking is active
Off
Not connected to network
Green
RJ45 Ethernet Port Pin Outs
10Base-T,
1000
T568B Color
100Base-TX
Base-T(X)
white/orange stripe
Rx+
TP0+
green solid
orange solid
Rx-
TP0-
white/green stripe
Tx+
TP1+
blue solid
blue solid
unused
TP2+
white/blue stripe
unused
TP2-
green solid
Tx-
TP1-
white/brown stripe
unused
TP3+
brown solid
brown solid
unused
TP3-
