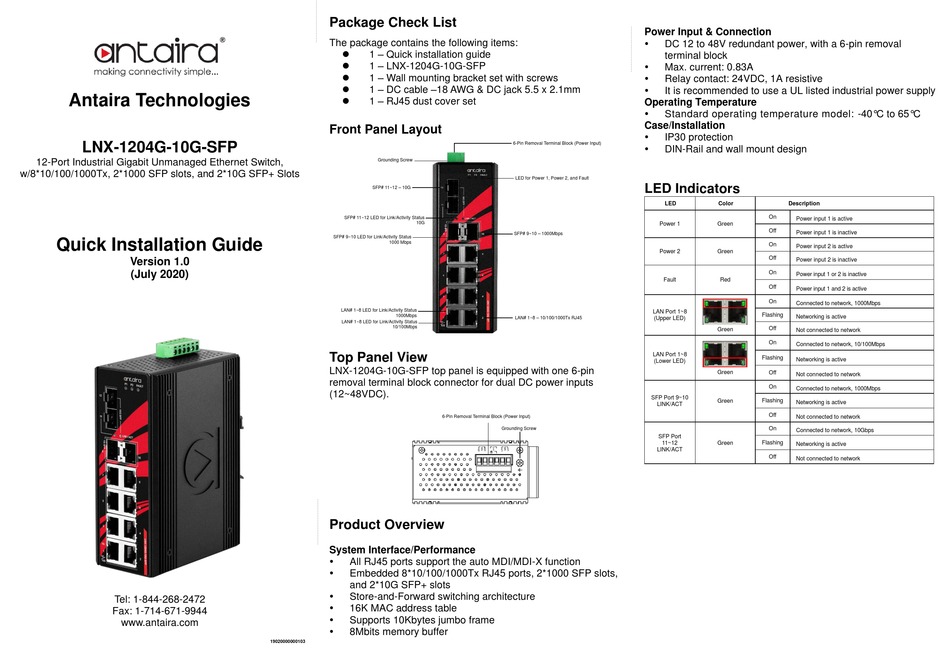

Antaira Technologies
LNX-1204G-10G-SFP
12-Port Industrial Gigabit Unmanaged Ethernet Switch,
w/8*10/100/1000Tx, 2*1000 SFP slots, and 2*10G SFP+ Slots
Quick Installation Guide
Version 1.0
(July 2020)
Tel: 1-844-268-2472
Fax: 1-714-671-9944
www.antaira.com
Package Check List
The package contains the following items:
⚫
1 – Quick installation guide
⚫
1 – LNX-1204G-10G-SFP
⚫
1 – Wall mounting bracket set with screws
⚫
1 – DC cable –18 AWG & DC jack 5.5 x 2.1mm
⚫
1 – RJ45 dust cover set

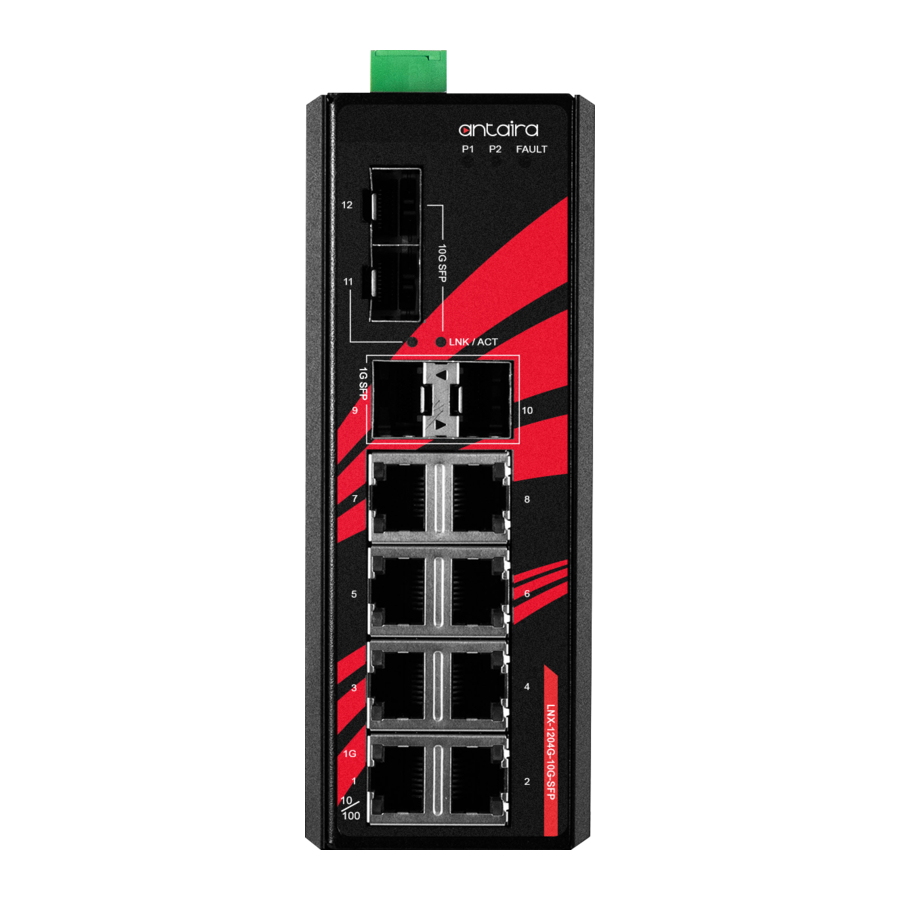

Front Panel Layout
Grounding Screw
SFP# 11~12 – 10G
SFP# 11~12 LED for Link/Activity Status
10G
SFP# 9~10 LED for Link/Activity Status
1000 Mbps
LAN# 1~8 LED for Link/Activity Status
1000Mbps
LAN# 1~8 LED for Link/Activity Status
10/100Mbps
Top Panel View
LNX-1204G-10G-SFP top panel is equipped with one 6-pin
removal terminal block connector for dual DC power inputs
(12~48VDC).
6-Pin Removal Terminal Block (Power Input)
Product Overview
System Interface/Performance
All RJ45 ports support the auto MDI/MDI-X function
Embedded 8*10/100/1000Tx RJ45 ports, 2*1000 SFP slots,
and 2*10G SFP+ slots
Store-and-Forward switching architecture
16K MAC address table
Supports 10Kbytes jumbo frame
8Mbits memory buffer
19020000000103
Power Input & Connection
DC 12 to 48V redundant power, with a 6-pin removal
terminal block
Max. current: 0.83A
Relay contact: 24VDC, 1A resistive
It is recommended to use a UL listed industrial power supply
Operating Temperature
Standard operating temperature model: -40°C to 65°C
Case/Installation
IP30 protection
6-Pin Removal Terminal Block (Power Input)
DIN-Rail and wall mount design
LED for Power 1, Power 2, and Fault
LED Indicators
LED
Power 1
SFP# 9~10 – 1000Mbps
Power 2
Fault
LAN Port 1~8
LAN# 1~8 – 10/100/1000Tx RJ45
(Upper LED)
LAN Port 1~8
(Lower LED)
SFP Port 9~10
LINK/ACT
Grounding Screw
SFP Port
11~12
LINK/ACT
Color
Description
On
Power input 1 is active
Green
Off
Power input 1 is inactive
On
Power input 2 is active
Green
Off
Power input 2 is inactive
On
Power input 1 or 2 is inactive
Red
Off
Power input 1 and 2 is active
On
Connected to network, 1000Mbps
Flashing
Networking is active
Off
Green
Not connected to network
On
Connected to network, 10/100Mbps
Flashing
Networking is active
Green
Off
Not connected to network
On
Connected to network, 1000Mbps
Green
Flashing
Networking is active
Off
Not connected to network
On
Connected to network, 10Gbps
Green
Flashing
Networking is active
Off
Not connected to network
