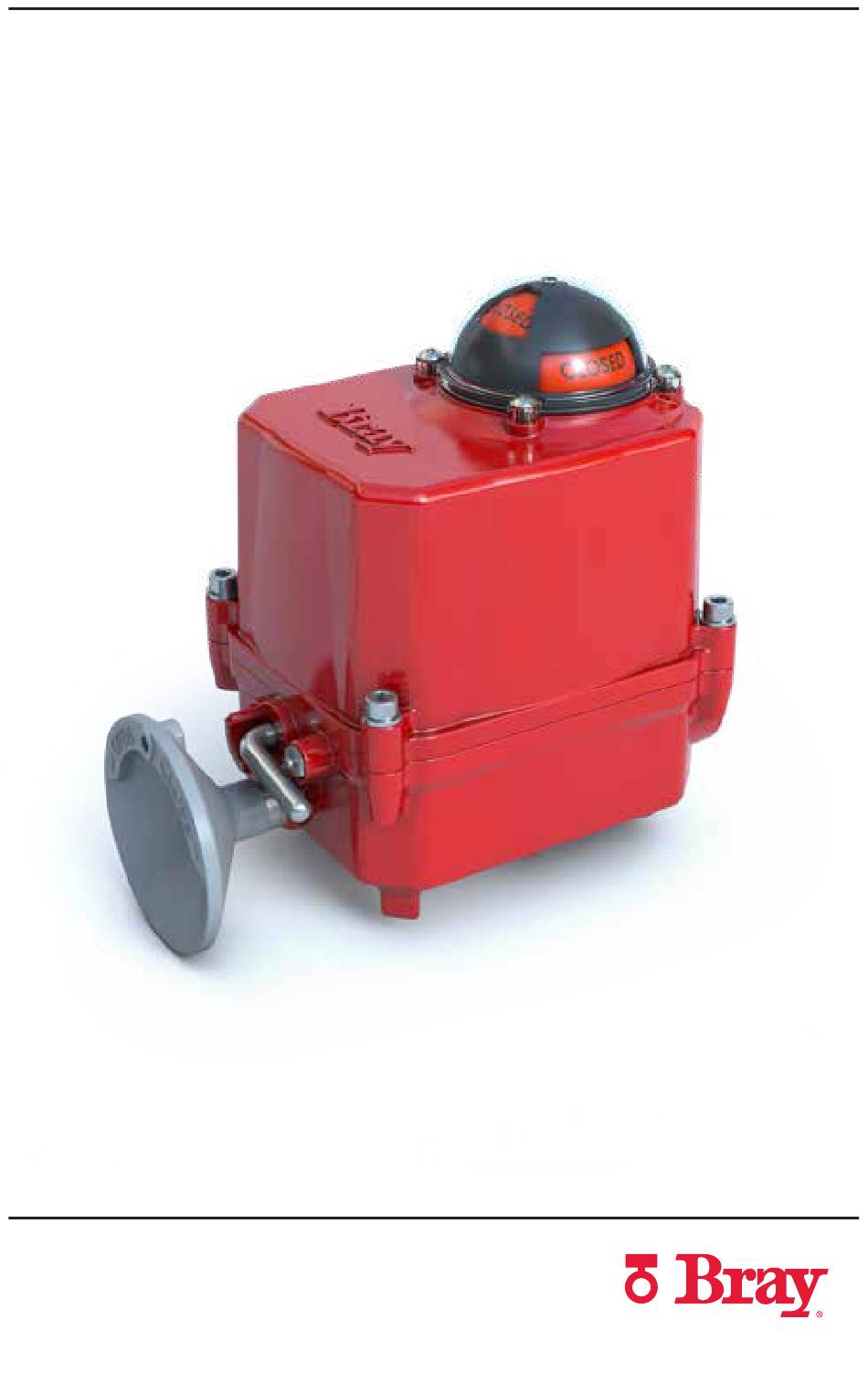

- Page 1 SERIES 71 ELECTRIC ACTUATOR Installation, Operation and Maintenance Manual BRAYCOMMERCIALDIVISION.COM THE HIGH PERFORMANCE COMPANY...
- Page 2 This Page Intentionally Left Blank...
-
Page 3: Table Of Contents
APPENDIX G: MOTOR EXPLODED VIEW ..... . 23 FOR MORE INFORMATION ON THIS PRODUCT AND OTHER BRAY PRODUCTS PLEASE VISIT OUR WEBSITE – www.braycommercialdivision.com... -
Page 4: Definition Of Terms
Series 71 – Electric Actuator Installation, Operation and Maintenance Manual READ AND FOLLOW THESE INSTRUCTIONS SAVE THESE INSTRUCTIONS 2.0 DEFINITION OF TERMS WARNING Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury. CAUTION Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury. -
Page 5: Qualified Personnel

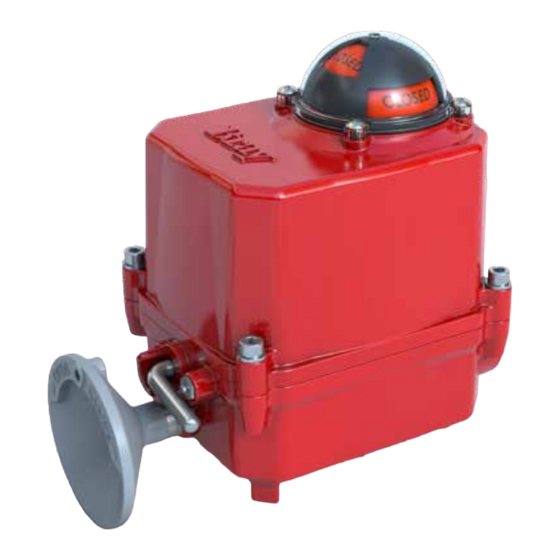

First aid. 4.0 INTRODUCTION The Bray Series 71 is a quarter turn electric actuator with manual declutchable override for use on any quarter turn valve or device requiring up to 531 lbs-in (60 Nm) of torque. Standard operating speed is 30 seconds for single phase line powered units. -
Page 6: Part Numbering System
Series 71 – Electric Actuator Installation, Operation and Maintenance Manual 5.0 PART NUMBERING SYSTEM - REFERENCE CHART Series – Torque Options – Actuator Control Voltage – Trim – – – Series Series 71 - QTR Turn Torque 531 lbf-in/60 Nm Options Standard - Aux Switches Aux Switches + Heater... -
Page 7: Electrical Operation
Installation, Operation and Maintenance Manual ELECTRICAL OPERATION The motors used in the Bray Series 71 are of either permanent split capacitor (PSC) design for single phase line applications or permanent magnet (PM) design for 24AC/DC power. Travel limit switches are mechanical form (SPDT) with contact rated at 3A 125/250 VAC. -
Page 8: S71 120Vac On/Off Actuator With Interposing Relay Board
Series 71 – Electric Actuator Installation, Operation and Maintenance Manual 7.2.1 S71 120VAC ON/OFF ACTUATOR WITH INTERPOSING RELAY BOARD The back feeding of one actuator by another one wired in parallel is eliminated by using the S71 I.R.B. If the actuator is running Open and the customer switches “instantaneously”... - Page 9 Series 71 – Electric Actuator Installation, Operation and Maintenance Manual S71 120VAC ON/OFF ACTUATOR WITH INTERPOSING RELAY BOARD S71 120VAC ON/OFF ACTUATOR WITH INTERPOSING RELAY ASSEMBLY...
-
Page 10: S71 24V On/Off Actuator With On/Off Controller
Series 71 – Electric Actuator Installation, Operation and Maintenance Manual 7.2.2 S71 24V ON/OFF ACTUATOR WITH ON/OFF CONTROLLER Whether supplying AC or DC power, the 24V On/Off Controller provides a reference direction signal and DC power to an H-bridge to power and control motor direction. - Page 11 Series 71 – Electric Actuator Installation, Operation and Maintenance Manual S71 24VAC ON/OFF ACTUATOR WITH ON/OFF CONTROLLER BOARD S71 24VAC ON/OFF ACTUATOR WITH ON/OFF CONTROLLER ASSEMBLY...
-
Page 12: S71 120Vac Modulating Actuator With S71 Servo Controller
Series 71 – Electric Actuator Installation, Operation and Maintenance Manual 7.2.3 S71 120VAC MODULATING ACTUATOR S71 SERVO CONTROLLER Power connection that energizes the S71 Servo and powers the actuator under control. The voltage supplied should be based on the actuator nameplate voltage and the voltage listed on the S71 Servo label. -
Page 13: S71 24V Modulating Actuator S71 Servo Controller
Series 71 – Electric Actuator Installation, Operation and Maintenance Manual 7.2.4 S71 24V MODULATING ACTUATOR S71 SERVO CONTROLLER Power connection that energizes the S71 Servo and powers the actuator under control. The voltage supplied should be based on the actuator nameplate voltage and the voltage listed on the S71 Servo label. - Page 14 Series 71 – Electric Actuator Installation, Operation and Maintenance Manual S71 24VAC MODULATING ACTUATOR WITH SEVRO S71 BOARD S71 24VAC MODULATING ACTUATOR WITH S71 SERVO ASSEMBLY...
-
Page 15: Storage
9.0 COMMISSIONING MOUNTING THE ACTUATOR All Bray Series 71 electric actuators are suitable for direct mounting on Bray valves. With proper mounting hardware, the S71 actuator can be installed onto other quarter-turn valves or devices. -
Page 16: Wiring The Actuator
Series 71 – Electric Actuator Installation, Operation and Maintenance Manual WIRING THE ACTUATOR WARNING Turn off all power and lockout/tag out service panel before installing or modifying any electrical wiring. • Take the actuator cover off. The cover should be kept on hand for reference. •... -
Page 17: Maintenance
11.0 INSTALLABLE OPTIONS 11.1 HEATER Bray offers an optional heater as a factory installable option for the Series 71 actuator to prevent condensation from forming inside the actuator. Units with On/Off actuation use a positive temperature coefficient (PTC) style heater which has a unique temperature – resistance characteristic. The heater self-regulates by increasing its electrical resistance relative to the internal temperature. -
Page 18: Spinner
11.3 RECEPTACLES Bray offers plug-in receptacles as a field or factory option for quick and easy field wiring of Series 71 actuators. Cord sets to fit these connectors can also be ordered in several lengths. Unless otherwise specified, power receptacles will be 5-pin mini style, standard duty with a black anodized aluminum finish. -
Page 19: Appendix A: Basic Tools
Series 71 – Electric Actuator Installation, Operation and Maintenance Manual 12.0 APPENDIX A: BASIC TOOLS COMPONENT SIZE REFERENCE TOOL TORQUE Appendix D, 89-97 in-lbs Cover Bolt Hex Key, 5mm Item 7 [10-11 Nm] Appendix D, 9 in-lbs Indicator Dome Screws Hex Socket, 8mm Item 9 [1Nm]... -
Page 20: Appendix B: Actuator Troubleshooting Chart
Series 71 – Electric Actuator Installation, Operation and Maintenance Manual 13.0 APPENDIX B: ACTUATOR TROUBLESHOOTING CHART Check wiring and power Actuator does not operate Wiring is incorrect supply Actuator operates in Field wiring is reversed Rewire field wiring reverse directions Limit switches are Readjust travel limit depressed... -
Page 21: Appendix C: Actuator Exploded View
Series 71 – Electric Actuator Installation, Operation and Maintenance Manual 14.0 APPENDIX C: ACTUATOR EXPLODED VIEW COVER ASSEMBLY INDICATOR SHAFT ASSEMBLY HEATER/MOTOR & BOARD ASSEMBLY BASE ASSEMBLY... -
Page 22: Appendix D: Cover Exploded View
Series 71 – Electric Actuator Installation, Operation and Maintenance Manual 15.0 APPENDIX D: COVER EXPLODED VIEW ITEM NO. PART NUMBER DESCRIPTION QTY. 70-0000-75306-51Z INDICATOR COVER 5A-0400-75303-517 INDICATOR SHADE 5A-0400-7480X-529 INDICATOR ROTOR 08-0066-76470-561 O-RING, INDICATOR COVER 71-0000-73311/12 NAMEPLATE S71 COVER SOCKET HEAD CAP SCREW - M6X30MM 075400-72500534 LOCK WASHER, SPLIT, M5... -
Page 23: Appendix E: Base Exploded View
Series 71 – Electric Actuator Installation, Operation and Maintenance Manual 16.0 APPENDIX E: BASE EXPLODED VIEW ITEM NO. PART NUMBER DESCRIPTION QTY. S71 BASE ASSEMBLY SQUARE SEAL RING CAPACITOR SOCKET HEAD CAP SCREW - M4X8MM M4 SPLIT WASHER O-RING, QUADRANT GEAR, AN120, INTERNAL DIAMETER: 25.07MM, CS: 2.62MM O-RING, HANDWHEEL,... -
Page 24: Appendix F: Indicator Shaft Exploded View
Series 71 – Electric Actuator Installation, Operation and Maintenance Manual 17.0 APPENDIX F: INDICATOR SHAFT EXPLODED VIEW ITEM NO. DESCRIPTION QTY. INDICATOR SHAFT M4 COUPLING NUT M4 SPLIT WASHER SWITCH BOTTOM PLATE POTENTIOMETER GEAR PLASTIC PCB GUARD SOCKET HEAD CAP SCREW - M4X12MM PAN HEAD SCREW - M2X49MM SPACER - 7MM OD, 8MM LONG - NYLON LIMIT SWITCH BOARD PCB... -
Page 25: Appendix G: Motor Exploded View
Series 71 – Electric Actuator Installation, Operation and Maintenance Manual 18.0 APPENDIX G: HEATER/MOTOR EXPLODED VIEW ITEM NO. PART NUMBER DESCRIPTION QTY. 120V MOTOR DRIVE GEAR 09-0001-71109-533 HEATER SOCKET HEAD CAP SCREW - 07-5104-72102-529 M2 X 6MM MOTOR BRACKET LOCK WASHER, INTERNAL 07-5100-72507-529 TEETH, M2 07-5100-72408-529... - Page 26 Series 71 – Electric Actuator Installation, Operation and Maintenance Manual This Page Intentionally Left Blank...
- Page 27 All statements, technical information, and recommendations in this bulletin are for general use only. Consult Bray representatives or factory for the specific requirements and material selection for your intended application. The right to change or modify product design or product without prior notice is reserved.
