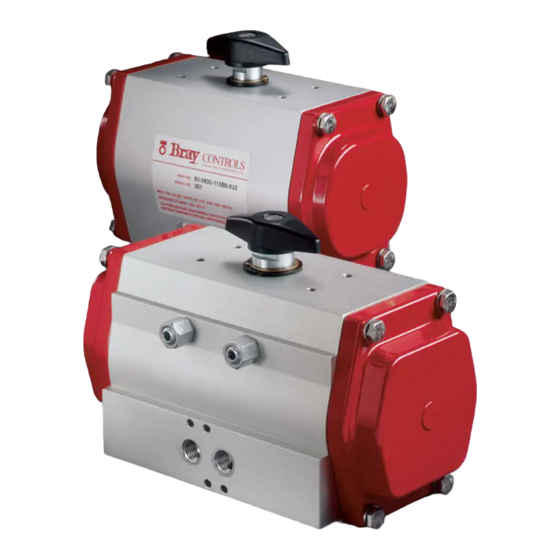

SERIES 92/93
PNEUMATIC ACTUATOR
OPERATION AND MAINTENANCE MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 92 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Bray 92 Series

Summary of Contents for Bray 92 Series

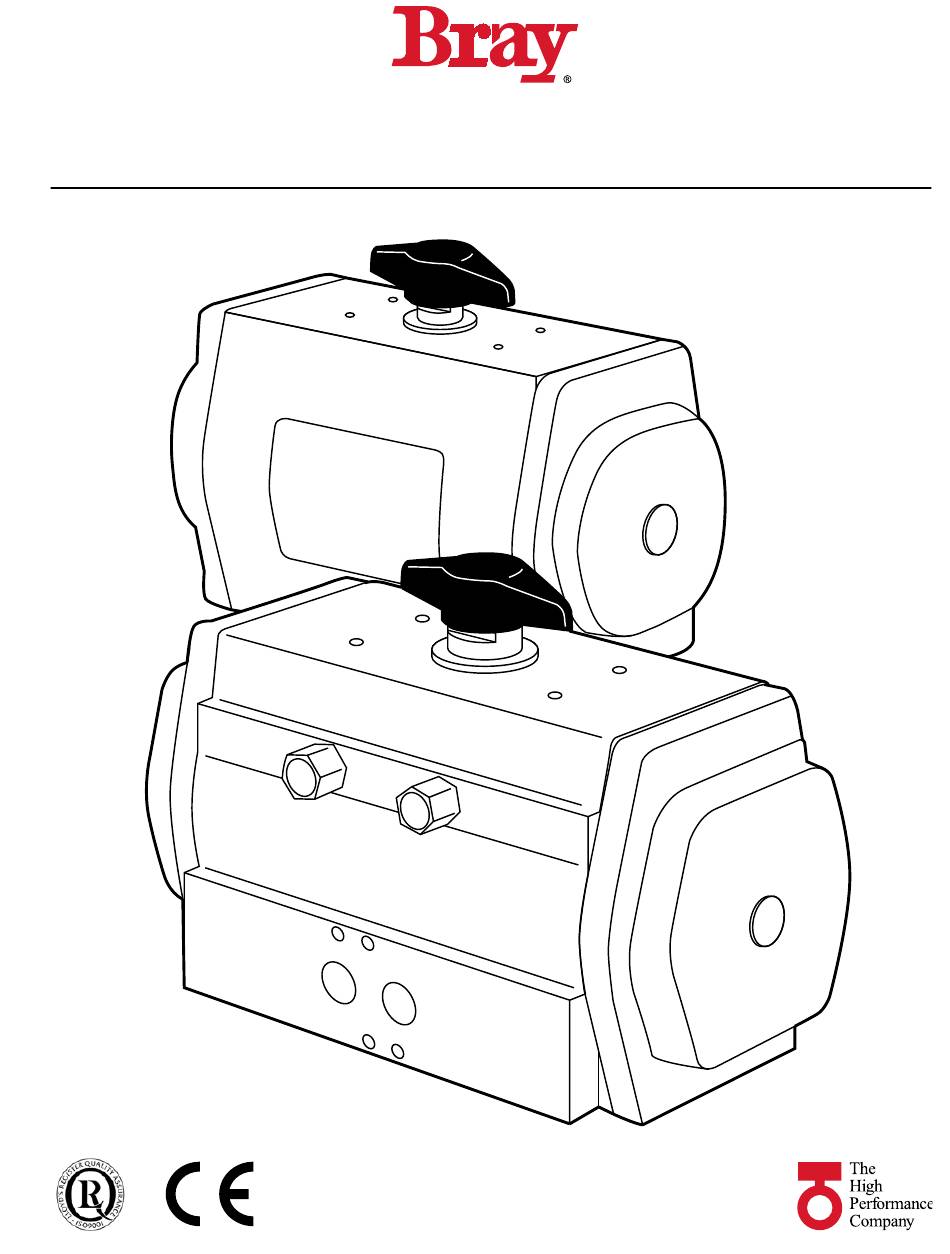

  • Page 1 SERIES 92/93 PNEUMATIC ACTUATOR OPERATION AND MAINTENANCE MANUAL...

  • Page 2: Table Of Contents

    able of onTenTs Safety Information - Definition of Terms ..................1 Description of Operation ........................2 Operating Medium .............................. 2 Installation ................................ 2 Fail Open Assemblies ..........................2 Fail Closed Assemblies..........................4 Mounting Actuator to the Valve ......................4 Setting the Travel Stops ......................... 4 Maintenance ...............................

  • Page 3: Safety Information - Definition Of Terms

    All information herein is proprietary and confidential and may not be copied or reproduced without the expressed written consent of BRAY INTERNATIONAL, Inc. The technical data herein is for general information only. Product suitability should be based solely upon customer’s detailed knowledge and experience with their application.

  • Page 4: Description Of Operation

    All information herein is proprietary and confidential and may not be copied or reproduced without the expressed written consent of BRAY INTERNATIONAL, Inc. The technical data herein is for general information only. Product suitability should be based solely upon customer’s detailed knowledge and experience with their application.
  • Page 5 All information herein is proprietary and confidential and may not be copied or reproduced without the expressed written consent of BRAY INTERNATIONAL, Inc. The technical data herein is for general information only. Product suitability should be based solely upon customer’s detailed knowledge and experience with their application.

  • Page 6: Fail Closed Assemblies

    Figure 1 All information herein is proprietary and confidential and may not be copied or reproduced without the expressed written consent of BRAY INTERNATIONAL, Inc. The technical data herein is for general information only. Product suitability should be based solely upon customer’s detailed knowledge and experience with their application.

  • Page 7: Maintenance

    All information herein is proprietary and confidential and may not be copied or reproduced without the expressed written consent of BRAY INTERNATIONAL, Inc. The technical data herein is for general information only. Product suitability should be based solely upon customer’s detailed knowledge and experience with their application.

  • Page 8: Troubleshooting

    All information herein is proprietary and confidential and may not be copied or reproduced without the expressed written consent of BRAY INTERNATIONAL, Inc. The technical data herein is for general information only. Product suitability should be based solely upon customer’s detailed knowledge and experience with their application.

  • Page 9: Disassembly

    All information herein is proprietary and confidential and may not be copied or reproduced without the expressed written consent of BRAY INTERNATIONAL, Inc. The technical data herein is for general information only. Product suitability should be based solely upon customer’s detailed knowledge and experience with their application.

  • Page 10: Adding Spring Cartridges

    EACH PISTON All information herein is proprietary and confidential and may not be copied or reproduced without the expressed written consent of BRAY INTERNATIONAL, Inc. The technical data herein is for general information only. Product suitability should be based solely upon customer’s detailed knowledge and experience with their application.

  • Page 11: Removing Spring Cartridges

    All information herein is proprietary and confidential and may not be copied or reproduced without the expressed written consent of BRAY INTERNATIONAL, Inc. The technical data herein is for general information only. Product suitability should be based solely upon customer’s detailed knowledge and experience with their application.

  • Page 12: General Pneumatic System Recommendations

    All information herein is proprietary and confidential and may not be copied or reproduced without the expressed written consent of BRAY INTERNATIONAL, Inc. The technical data herein is for general information only. Product suitability should be based solely upon customer’s detailed knowledge and experience with their application.

  • Page 13: Series 92/93 Parts Diagram

    Flat Head Screw All information herein is proprietary and confidential and may not be copied or reproduced without the expressed written consent of BRAY INTERNATIONAL, Inc. The technical data herein is for general information only. Product suitability should be based solely upon customer’s detailed knowledge and experience with their application.
  • Page 14 A Division of BRAY INTERNATIONAL, Inc. 13333 Westland East Blvd. Houston, Texas 77041 281.894.5454 FAX 281.894.9499 www.bray.com Bray is a registered trademark of Bray InternatIonal, Inc. ® © 2013 Bray International. all rights reserved. oM-92_93-001 01-2013...
