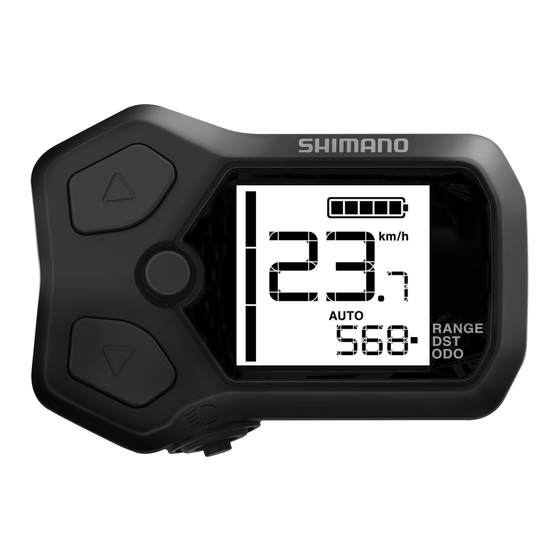

- Page 1 (English) UM-7K50A-001 User's Manual Switch Unit Integrated Type Cycle Computer Check our website for the latest manuals. https://si.shimano.com...
-
Page 2: Table Of Contents
Contents IMPORTANT NOTICE..................3 Important safety information ................ 4 SHIMANO STEPS battery management systems and compatibility.... 5 Notice....................... 6 Regular inspections before riding the bicycle ..........7 Booklet structure .................... 8 Names and functions of parts................ 9 Names and functions of parts ................9 Notation method for operations ..............10... -
Page 3: Important Notice
A dealer's manual for professional and experienced bicycle mechanics is available on our website ( https://si.shimano.com Please observe the appropriate rules and regulations of the country, state or region in which you conduct your business as a dealer. -
Page 4: Important Safety Information
Be sure to follow the instructions provided in the manuals when installing the product. It is recommended that you use SHIMANO genuine parts. If bolts and nuts become loose or damaged, the bicycle may suddenly fall over, result in a serious injury. -
Page 5: Shimano Steps Battery Management Systems And Compatibility
This manual only describes products compatible with Gen.2. With some exceptions, first-generation and Gen.2 products of SHIMANO STEPS components are not compatible with each other. For details, refer to the compatibility information on the SHIMANO product website ( https://productinfo.shimano.com/#/com The Gen.2 battery and compatible battery mount are marked “Gen.2” as indicated in the figure. -
Page 6: Notice
Care and maintenance Contact the place of purchase for updates of the component software. The most up-to-date information is available on the SHIMANO website. Do not use the thinners or harsh solvents to clean the products. Such substances may damage the surface. -
Page 7: Regular Inspections Before Riding The Bicycle
Regular inspections before riding the bicycle Regular inspections before riding the bicycle Before riding the bicycle, check the following items. If any problems are found, consult your place of purchase or a distributor. Does the drivetrain perform gear shifting smoothly? Is there any looseness or damage in the component parts? Are the components securely installed to the frame/handlebar/stem, etc.? Do any abnormal noises occur while riding? -
Page 8: Booklet Structure
Booklet structure Booklet structure SHIMANO STEPS user's manuals are split among several booklets, as described below. Be sure to read these user's manuals thoroughly before use, and follow them for correct use. Store the user's manuals so that they can be referenced at any time. -
Page 9: Names And Functions Of Parts
Names and functions of parts Names and functions of parts Names and functions of parts Names and functions of parts Power button 3-switch type switch unit (right) Light button 2-switch type switch unit (right) Switch unit integrated type cycle computer MTB type switch unit (right) The operation for each switch is indicated below. -
Page 10: Notation Method For Operations
Names and functions of parts Notation method for operations Shifting up (3-switch / 2-switch type) Shifting down (MTB type) Shifting down (3-switch / 2-switch type) Shifting up (MTB type) Switch between auto and manual gear shifting When two auto gear shifting settings are registered, the settings switch in the following order: Manual >... -
Page 11: Installing And Removing The Cycle Computer
Installing and removing the cycle computer Installing and removing the cycle computer Installing and removing the cycle computer Installing and removing the cycle computer For the installation/removal procedure, contact your place of purchase or a distributor. -
Page 12: Basic Operation
When the power of this product is turned ON, all components connected to the drive unit are also turned ON (such as assist driving, the electronic gear shifting mechanism, and the lights). Before turning the power ON, please refer to the “ SHIMANO STEPS Special Battery and Parts User's Manual (Gen.2) ” to check the following: The battery is firmly attached to the battery mount. - Page 13 Basic operation Viewing the screen Battery level indicator (Refer to “ Battery level indicator .”) Current speed Displays the current speed. Auto gear shifting display Displayed for auto gear shifting. ( Refer to “Auto gear shifting display” Traveling data display (Refer to “...
- Page 14 The cycle computer uses zero to indicate a battery level where assistance cannot be performed. SHIMANO STEPS provides an amount of battery separate from the assist function for additional equipment such as lights and ABS. Therefore, the above-mentioned battery level may differ from that which can be checked on the battery.
-
Page 15: Turning The Light On/Off
Basic operation Turning the light ON/OFF Approximately one second after switching to AUTO2 Turning the light ON/OFF If a light is connected to the drive unit, this product can be used to operate the light. Press the light button. It switches between ON and OFF each time it is pressed. Light button The light power is linked with the main power. - Page 16 Basic operation Switching the traveling data display On the main screen: Press <A>. Current gear position Traveling range The traveling data switches in the following order each time <A> is pressed. Display item Explanation [GEAR] Current gear position [RANGE] Traveling range [DST] Traveling distance [ODO]...
-
Page 17: Making Walking And Pushing The Bicycle Easy (Walk Assist)
Basic operation Making walking and pushing the bicycle easy (walk assist) On the main screen: Press <A>. (Switches the traveling data display to [DST]) Press and hold <A>. (Continue to hold down until the number displayed for [DST] flashes.) When the number displayed for [DST] is flashing: Press <A>. The traveling data is reset. - Page 18 Basic operation Making walking and pushing the bicycle easy (walk assist) Carefully push the bicycle while pressing Y again. The drive unit operates while Y is pressed to assist you in pushing the bicycle. Walk assist operates at a maximum of 6 km/h. Be careful because the bicycle starts moving just by pressing Y.
-
Page 19: Changing Settings
Changing settings Changing settings Changing settings Changing settings With this product, the following settings can be changed. If you want to change the settings, contact your place of purchase. You can switch the display units of speed and distance to km or miles. If the bicycle has a Di2 internal geared hub, you can set/change the gear position when starting from a stop. -
Page 20: Troubleshooting
Troubleshooting Gear shifting adjustment with the electronic gear shifting unit [ADJUST] Troubleshooting Gear shifting adjustment with the electronic gear shifting unit [ADJUST] If gear shifting feels abnormal, contact the place of purchase. When gear shifting operation is impossible If you are unable to change gears using the electronic gear shifting, check the cycle computer display for the following. - Page 21 If an error code “E***” (where *** is letters or numbers) is displayed on the entire screen, the product may have malfunctioned. Refer to the “ SHIMANO STEPS Special Battery and Parts User's Manual (Gen.2) ” and follow one of the procedures below to reset the display: Press the battery power button to turn the power OFF.
-
Page 22: When A Problem Occurs
Troubleshooting When a problem occurs When a problem occurs The FAQ for the SHIMANO STEPS series can be accessed with the following: https://bike.shimano.com/faq/STP0A... - Page 23 High Tech Campus 92, 5656 AG Eindhoven, The Netherlands Phone: +31-402-612222 Roebuck Way, Knowlhill, Milton Keynes, Buckinghamshire, MK5 8HL, United Kingdom 3-77 Oimatsu-cho, Sakai-ku, Sakai City, Osaka 590-8577, Japan Please note: specifications are subject to change for improvement without notice. (English) © Nov. 2022 by SHIMANO INC. ITP...
