INSTALLATION

The appliance must be installed by a
qualified technician and according to
the regulations in force.

Positioning

See General safety instructions.
Depending on the type of installation, this
appliance belongs to classes:
Class 1
Class 2 - subclass 1
The appliance can be placed against walls that
are higher than the work surface, at a minimum
distance of X mm from the side of the appliance.
Any wall units installed above the appliance's
worktop must be positioned at least Y mm from
it.
X
Y
If a hood is installed above the
appliance, refer to the hood instructions
manual to make sure the correct
clearance is left.
91477A444/C
Free-standing
Built-in
150 mm
750 mm

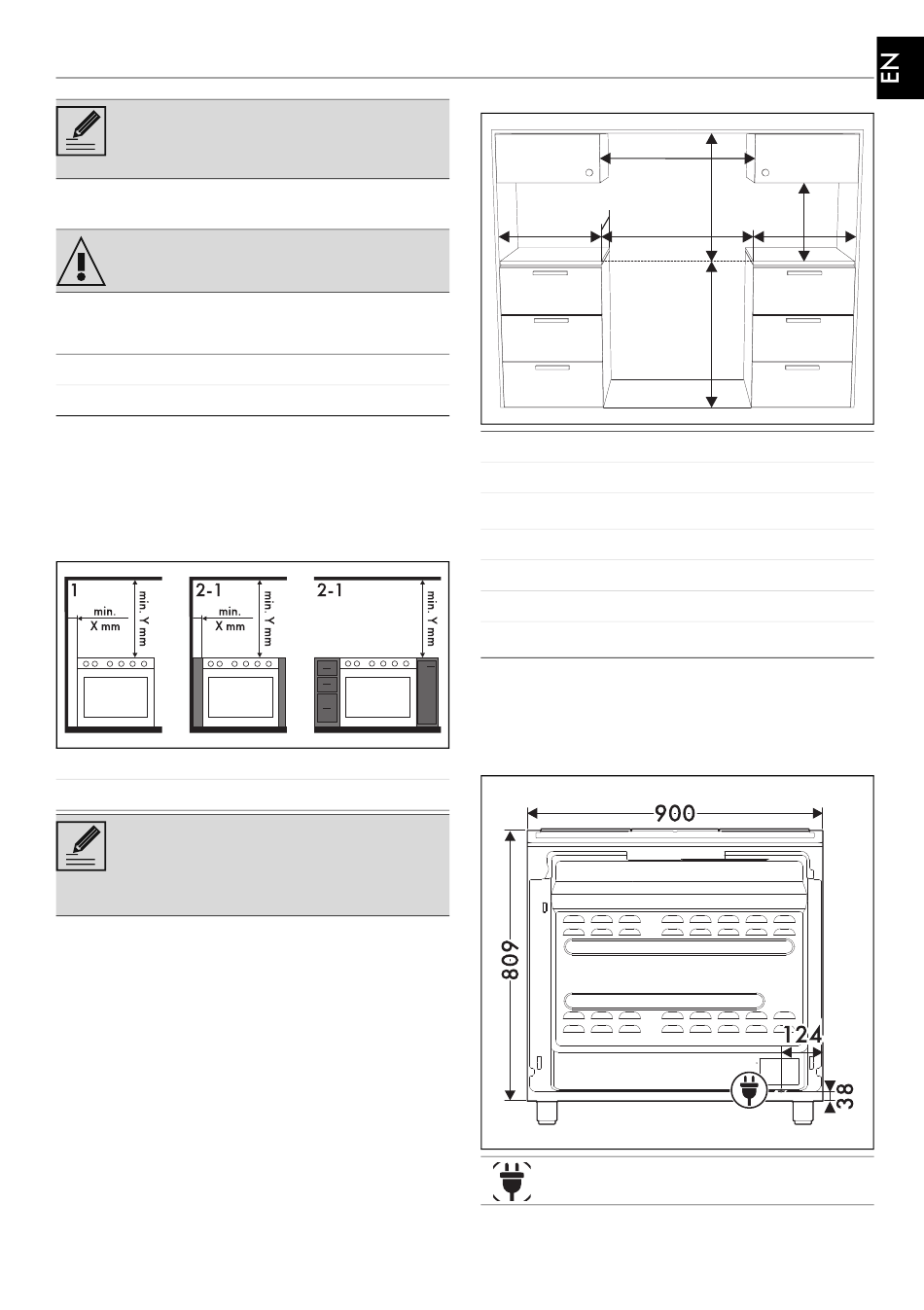

Appliance overall dimensions
B B
C C
A
B
1
C
D
H
I
2
L
1
Minimum distance from side walls or other
flammable material.
2
Minimum cabinet width (=A)
Appliance dimensions
Position of electrical connection
L L
H H
I I
C C
A A
D D
900 mm
600 mm
min. 150 mm
879 ÷ 919 mm
750 mm
450 mm
900 mm
INSTALLATION - 27
