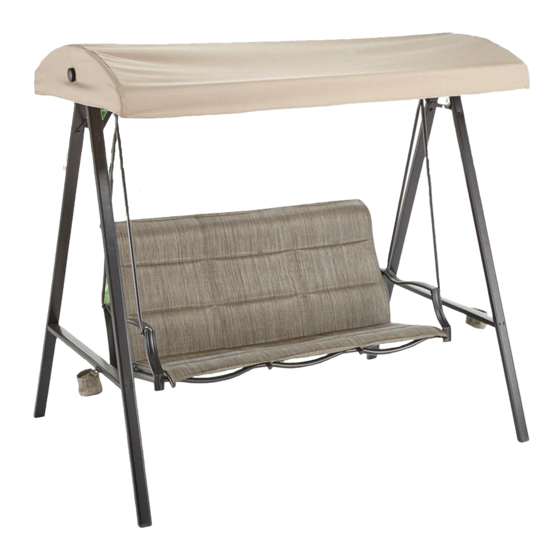

Statesville 3 person steel swing with polyester canopy
Hide thumbs Also See for GSS00227B:
Table of Contents

Advertisement

Quick Links

Download this manual
Item # 000 000 000
Model # GSS00227B
USE AND CARE GUIDE
STATESVILLE 3 PERSON STEEL SWING WITH POLYESTER CANOPY
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service.
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
THANK YOU
y through the purchase of this swing. We strive to continually create
quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GSS00227B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HAMPTON BAY GSS00227B

Summary of Contents for HAMPTON BAY GSS00227B

  • Page 1 We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs. Thank you for choosing Hampton Bay!

  • Page 2: Table Of Contents

    Table of Contents Table of Contents ............2 Pre-Assembly ..............3 Safety Information ............2 Planning Assembly ..............3 Hardware Included ..............3 Product Caution ..............2 Safety Warnings ..............2 Package Contents ..............4 Assembly ................5 Warranty ................

  • Page 3: Pre-Assembly

    Pre-Assembly PLANNING ASSEMBLY Read all instructions before assembly. To avoid damaging this product, assemble it on a soft, non-abrasive surface such as carpet or cardboard. NOTE: More than one person may be required to assemble this product. HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity...

  • Page 4: Package Contents

    Pre-Assembly (continued) PACKAGE CONTENTS Part Description Quantity Part Description Quantity Top bar Left side bar Right side bar Seat Back Left arm Right arm Curved bar Support bar Swing pipe Canopy Cup holder...

  • Page 5: Assembly

    Assembly ASSEMBLING THE SWING FRAME Attach two sets of the legs (B) to the top bar (A) using M8x100 bolts and nut (AA). Attach the two connectors (LL) to the legs (B) and the top bar (A) using M8x45 bolts and nuts (CC) and M8x50 bolts and nuts (BB). Attach the left side bar (C) and the right side bar (D) to the legs (B) using M6x40 bolts (FF).
  • Page 6 Assembly (continued) ATTACHING THE ARMS AND THE SWING PIPES TO THE SEAT AND THE BACK Attach the arms (G & H) to the seat (E) using M8x30 bolts and nuts (DD). Attach the arms (G & H) to the back (F) using M6x30 bolts and washers (GG) and M6x15 bolts (II). Attach the swing pipes (K) to the arms (G &...
  • Page 7 Assembly (continued) ATTACHING THE SEAT TO THE SWING FRAME Attach the whole seat to the swing frame using the hooks (JJ). HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON for further assistance.
  • Page 8 Assembly (continued) ASSEMBLING THE TOP FRAME AND THE CANOPY Attach the two curved bars (I) to the support bars (J) using M6x30 bolts (HH). Fully tighten all of the bolts on the top frame using the hex wrench (MM) before placing the canopy (L). Place the canopy (L) on the assembled top frame.
  • Page 9 Assembly (continued) ATTACHING THE TOP FRAME TO THE LEGS Tighten the Velcro (1) on the two sides of the top frame. Attach the assembled top frame to the assembled swing frame using the screw knobs (KK) on both sides. Place the cup holders (M) to the side bars (C & D) on both sides. HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON for further assistance.

  • Page 10: Care And Cleaning

    Assembly (continued) TIGHTENING THE BOLTS Once all of the bolts are in place, fully tighten all of the bolts. Make sure that the swing is tightly assembled and stable before use. Care and Cleaning For best results, clean the frame and fabric with a damp cloth and dry thoroughly. This will help prevent mildew by removing dirt particles that may accumulate.
  • Page 11 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service. 8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM Retain this manual for future use.
