Item # 1001 626 347
Model # GSS00227B
USE AND CARE GUIDE

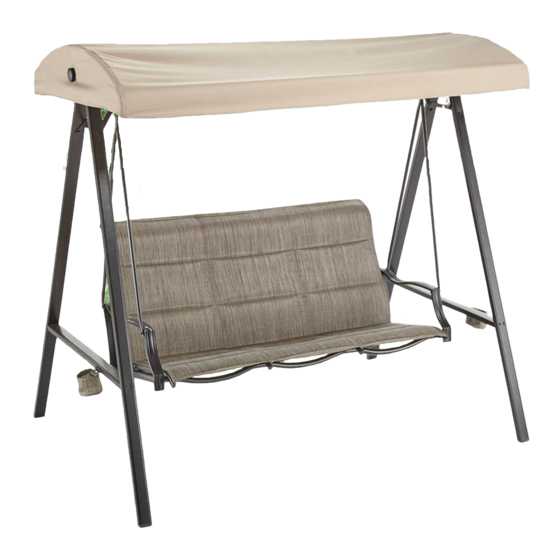

STATESVILLE 3 PERSON STEEL PADDED SLING SWING
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service.
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
THANK YOU
y through the purchase of this swing. We strive to continually create
quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GSS00227B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HAMPTON BAY GSS00227B

Summary of Contents for HAMPTON BAY GSS00227B

  • Page 1 We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs. Thank you for choosing Hampton Bay!

  • Page 2: Table Of Contents

    Table of Contents Table of Contents ............2 Pre-Assembly ..............3 Safety Information ............2 Planning Assembly ..............3 Hardware Included ..............3 Product Caution ..............2 Safety Warnings ..............2 Package Contents ..............4 Assembly ................5 Warranty ................

  • Page 3: Pre-Assembly

    Pre-Assembly PLANNING ASSEMBLY Read all instructions before assembly. To avoid damaging this product, assemble it on a soft, non-abrasive surface such as carpet or cardboard. NOTE: More than one person may be required to assemble this product. HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity...

  • Page 4: Package Contents

    Pre-Assembly (continued) PACKAGE CONTENTS Part Part Description Description Quantity Quantity Top bar Left side bar Right side bar Seat Back Left arm Right arm Curved bar Support bar Swing pipe Canopy Cup holder...

  • Page 5: Assembly

    Assembly ASSEMBLING THE SWING FRAME Attach two sets of the legs (B) to the top bar (A) using M8x100 combination bolts, washers, and nuts (AA). Attach the support bars (LL) to the top bar (A) and the legs (B) using M8x50 combination bolts, washers, and nuts (BB) and M8x45 combination bolts and nuts (CC).
  • Page 6 Assembly (continued) ATTACHING THE ARMS AND THE SWING PIPES TO THE SEAT AND THE BACK Attach the arms (G & H) to the seat (E) using M8x30 combination bolts (DD). Attach the arms (G & H) to the back (F) using M6x30 combination bolts (GG) and M6x15 combination bolts (II). Attach the swing pipes (K) to the arms (G &...
  • Page 7 Assembly (continued) ATTACHING THE SEAT TO THE SWING FRAME Attach the assembled seat to the swing frame using the hooks (JJ). HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON for further assistance.
  • Page 8 Assembly (continued) ASSEMBLING THE TOP FRAME Attach the support bars (J) to the two curved bars (I) using M6x30 bolts (HH). Fully tighten all of the bolts on the top frame using the hex wrench (MM) before placing the canopy (L). Place the canopy (L) on the assembled top frame and tie the canopy (L) to the curved bars (I) by affixing the Velcro.
  • Page 9 Assembly (continued) ATTACHING THE TOP FRAME TO THE TOP BAR Attach the assembled top frame to the top bar (A) using the knobs (KK) on both sides. Adjust the angle of the top frame and fully tighten the knobs (KK) in the clockwise direction. Place the cup holders (M) to the side bars (C &...

  • Page 10: Care And Cleaning

    Assembly (continued) TIGHTENING THE BOLTS Make sure that the swing is tightly assembled and stable before use. Care and Cleaning For best results, clean the frame and fabric with a damp cloth and dry thoroughly. This will help prevent mildew by removing dirt particles that may accumulate.
  • Page 11 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service. 8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM Retain this manual for future use.
