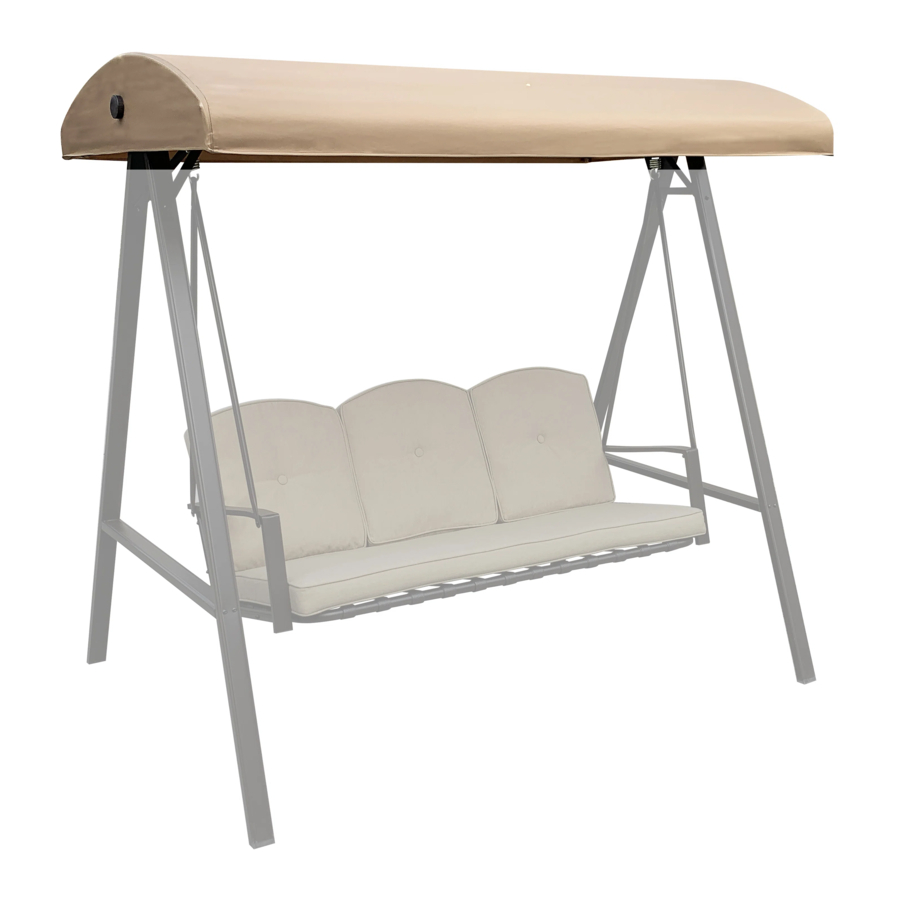

HAMPTON BAY Cunningham GSS00132D Manual

Also See for Cunningham GSS00132D:

Use and care manual (12 pages)

Use and care manual (12 pages)

Table of Contents

Contents

1 Pre-Assembly
2 Assembly
3 Care and Cleaning
4 Important Safety Instructions
5 Documents / Resources
- 5.1 Download manual

HAMPTON BAY Cunningham GSS00132D Manual

Pre-Assembly

PLANNING ASSEMBLY

Read all instructions before assembly.
To avoid damaging this product, assemble it on a soft, non-abrasive surface such as carpet or cardboard.
information NOTE: More than one person may be required to assemble this product.

HARDWARE INCLUDED

NOTE: Hardware not shown to actual size.

Part	Description	Quantity
AA	M8x100 combination bolt, washer and nut	4+1
BB	M8x90 combination bolt, washer and nut	4+1
CC	M8x50 combination bolt, washer and nut	2+1
DD	M8x45 combination bolt, washer and nut	4+1
EE	M6x85 combination bolt, washer and nut	4+1
FF	M6x60 combination bolt, washer and nut	4+1
GG	M6x40 combination bolt	8+1
HH	M6x30 bolt	6+1
II	Hook	2
JJ	Support bar	2
KK	Screw knob	2
LL	Hex wrench	1
MM	Wrench	1

PACKAGE CONTENTS

Part	Description	Quantity
A	Top bar	1
B	Leg	4
C	Side bar	2
D	Seat	1
E	Arm	2
F	Long swing pipe	2
G	Short swing pipe	2
H	Curved bar	2
I	Support bar	3
J	Canopy	1
K	Back cushion	3
L	Seat cushion	1

Assembly

Assembling the swing frame
- Attach two sets of the legs (B) to the top bar (A) using M8x100 combination bolts, washers and nuts (AA).
- Attach the support bars (JJ) to the legs (B) and the top bar (A) using M8x50 combination bolts, washers and nuts (CC) and M8x45 combination bolts, washers and nuts (DD).
- Attach the two side bars (C) to the legs (B) using M6x40 combination bolts (GG).
- Once all of the bolts are in place, fully tighten the bolts.
Attaching the arms to the seat
- Attach the arms (E) to the seat (D) using M8x90 combination bolts, washers and nuts (BB) and M6x85 combination bolts, washers and nuts (EE).
- Once all of the bolts are in place, fully tighten the bolts.
Attaching the long swing pipes and the short swing pipes to the arms
- Attach the long swing pipes (F) and the short swing pipes (G) to the arms (E) using M6x60 combination bolts, washers and nuts (FF).
- Connect the top of the two swing pipes (F and G) using the hooks (II).
- Once all of the bolts are in place, fully tighten the bolts.

Attaching the seat to the swing frame
- Attach the assembled seat to the swing frame using the hooks (II).
Assembling the top frame
- Attach the support bars (I) to the curved bars (H) using M6x30 bolts (HH).
- Fully tighten all of the bolts on the top frame using the hex wrench (LL) before placing the canopy.
- Place the canopy (J) on the assembled top frame and tie the canopy (J) to the curved bars (H) by affixing the Velcro.
  NOTE: Pay attention to the direction of the curved bars (H).
Attaching the top frame to the top bar
- Attach the top frame to the top bar (A) using the screw knobs (KK) on both sides.
- Adjust the angle of the top frame and fully tighten the screw knobs (KK) in the clockwise direction.
- Place the back cushions (K) and the seat cushion (L) on the seat.
Tightening the bolts
- Ensure the swing is tightly assembled and stable before use.

Care and Cleaning

For best results, clean the swing with a damp cloth and dry thoroughly. This will help prevent mildew by removing dirt particles that may accumulate.
Do not clean with abrasive materials, bleach, or solvents.
Store the swing in a dry, sheltered place when not in use.
Keep the swing away from re, extreme heat, freezing conditions, and inclement weather such as rain, hail, sleet, snow, or wind.

HOMEDEPOT.CA
Please contact 1-855-HD-HAMPTON for further assistance.
1-855-HD-HAMPTON

Important Safety Instructions

SAVE THESE INSTRUCTIONS

This swing was as made for the explicit purpose of providing outdoor functions and is not to be used as a toy.
This product is intended for normal outdoor use; however, the manufacturer recommends storing and / or covering this set when any formidable / severe weather is approaching.

Do not locate this product near open flames. Do not use this product as a support. Do not shake, lean or climb on the product. Children under the age of 10, near the product, should be supervised by a competent adult at all times. This product is NOT intended for commercial use and will void the warranty.

READ ALL INSTRUCTIONS BEFORE USE
To reduce the risk of injury to persons:

Close supervision is necessary when this product is used by ornear children, or disabled persons, if applicable.
Use this furnishing only for its intended use as described in theseinstructions. Do not use attachments not recommended by the manufacturer.
Please keep children out of the assembly area before assembly.

Weight limit for the swing chair is 250 lbs (113.39 kg) for each seat.

This swing unit is heavy, and may require two adults for safe assembly.

Do not shake from side to side when using the product.

Do not locate the product near any heat source.

Do not place heavy objects on the swing.
