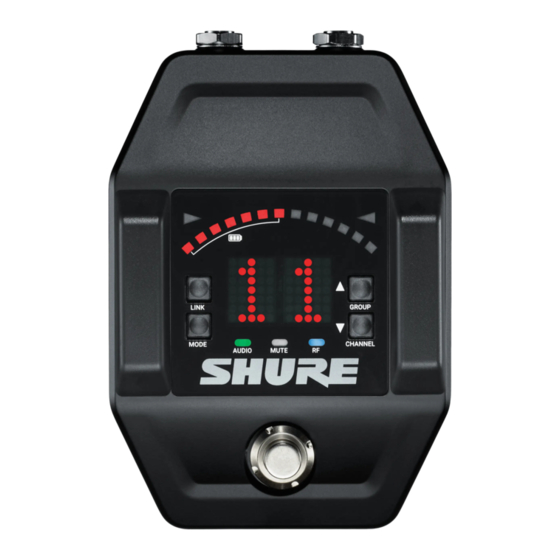

GLXD6+
Guitar Pedal Receiver
Online user guide for GLXD6+ wireless system. Includes setup instructions, specifications, and more.
Version: 1.1 (2023-A)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GLXD6+ and is the answer not in the manual?

Questions and answers

Summary of Contents for Shure GLXD6+

  • Page 1 GLXD6+ Guitar Pedal Receiver Online user guide for GLXD6+ wireless system. Includes setup instructions, specifications, and more. Version: 1.1 (2023-A)
  • Page 2: Table Of Contents

    Charging from an AC Power Source Resetting the Transmitter Charging Status LEDs Charging Times and Transmitter Runtimes Troubleshooting Transmitter Battery Meter Accessories Important Tips for Care and Storage of Shure Recharge­ able Batteries Specifications Tips to Improve Wireless System Performance Diagrams Additional Tips Frequency Tables...
  • Page 3: Glxd6+ Guitar Pedal Receiver

    Shure Incorporated GLXD6+ Guitar Pedal Receiver System Overview GLX-D+ Dual Band Digital Wireless offers confidence without complexity. Dual-band operation in 2.4 and 5.8 GHz more than doubles the available bandwidth to avoid interference without audio interruption. The receiver is compatible with a selection of lavalier, headset, and vocal microphones.
  • Page 4: Display Screen, Indicators, And Controls

    Shure Incorporated Connect DC power supply (9 to 15 V DC, 400 mA minimum). ① DC power connector Note: Compatible with positive tip or negative tip power supplies. ② INSTR IN Use receiver as a wired guitar pedal tuner. Connect to amplifier or mixer.
  • Page 5: Tuner Mode

    Shure Incorporated UN (controls unlocked) -- (frequency not available) ③ Link button Press to manually link receiver to a transmitter or to activate the remote ID function. ④ Mode button Press to enable audio gain adjustment. Use ▲ ▼ buttons to adjust gain.
  • Page 6: Set Up The Receiver

    Shure Incorporated ⑦ Frequency detuned/Ref­ A dot is displayed when the tuning or pitch has been set to a non-standard value. erence pitch offset indica­ Note: Non-standard tuning or pitch settings scroll across the receiver display during power-up. Set Up the Receiver Connect the PS24 power supply to the receiver and plug the cord into an AC power source.
  • Page 7: Bodypack Transmitter

    Shure Incorporated Bodypack Transmitter ① Antenna Carries wireless signal. ② Status LED LED color and state indicate transmitter status. ③ Power switch Turns the transmitter on/off. ④ TA4M input port Connects to a 4-Pin mini connector (TA4F) microphone or instrument cable.
  • Page 8: Transmitter Status Led

    ◦ Press momentarily to activate remote ID function. ⑦ Battery compartment Holds 1 Shure rechargeable battery. Transmitter Status LED LED is green during normal operation. LED color or flashing indicates a change in transmitter status as shown in the following table:...
  • Page 9: Batteries And Charging

    Shure Incorporated Batteries and Charging GLX-D+ transmitters are powered by Shure SB904 lithium-ion rechargeable batteries. Advanced battery chemistry maximizes runtimes with zero memory effects, eliminating the need to discharge batteries prior to charging. When not in use, recommended battery storage temperature is 10°C (50°F) to 25°C (77°F).
  • Page 10: Charging Times And Transmitter Runtimes

    Shure Incorporated Charging Times and Transmitter Runtimes Use the following table to determine approximate battery runtime based on the duration of charging time when in 5.8 GHz mode. Times shown are in hours and minutes. Transmitters automatically power­off after approximately 1 hour to conserve bat­...
  • Page 11: Important Tips For Care And Storage Of Shure Rechargeable Batteries

    Shure Incorporated Important Tips for Care and Storage of Shure Rechargeable Batteries Proper care and storage of Shure batteries results in reliable performance and ensures a long lifetime. • Always store batteries and transmitters at room temperature • Ideally, batteries should be charged to approximately 40% of capacity for long-term storage •...
  • Page 12: Locking And Unlocking The Controls

    Shure Incorporated Locking and Unlocking the Controls The controls of the receiver and transmitter can be locked to prevent unauthorized setting changes or power­off. The lock sta­ tus is not changed by power cycles. Locking the Receiver Controls Simultaneously press and hold the group and channel buttons until LK appears on the screen. Repeat to unlock.
  • Page 13: Tuner Menu

    Shure Incorporated To change the band mode: Press and hold the channel button while powering on the receiver. Continue to hold the channel button for approximate­ ly 5 seconds until the band selection menu opens. Press the up/down gain button to select a band mode. The screen will flash momentarily and scan for the best channel to use.
  • Page 14: Choosing Live Or Mute Audio Output

    Shure Incorporated Strobe A sequence of three LEDs will travel across the tuning bar in the direction of sharp or flat. The LEDs will remain stationary when the note is in tune. Note: Indicator and Output settings are displayed in a scroll from left to right.
  • Page 15: Display Brightness

    Shure Incorporated Display Brightness The receiver has a built-in light sensor to automatically adjust the display brightness. To manually adjust the brightness choose one of the following settings: Detune The tuner can be set to display standard tuning for instruments that have been detuned up sharp or flat in the following incre­...
  • Page 16: Reference Pitch

    Shure Incorporated Reference Pitch The reference pitch can be offset from standard A440 in a range of 432 Hz to 447 Hz in 1 Hz increments. When adjusting the pitch, the last 2 digits of the value will be displayed. For example, "32" would appear on the display when the pitch has been set to 432 Hz.
  • Page 17: Strobe Mode

    Shure Incorporated Strobe Mode Both tuning indicators will illuminate and the strobe segments will remain stationary when the note is in tune. Using a Third-Party Power Supply To power your wireless receiver pedal, we recommend using the included power supply or a power supply with isolated power outputs.
  • Page 18: Firmware

    Download Shure Update Utility from shure.com To update your firmware, connect the device to your computer using a USB-C cable and open the Shure Update Utility. Resetting Components Use the reset function if it is necessary to restore the transmitter or receiver to their factory settings.
  • Page 19: Resetting The Transmitter

    Shure Incorporated Resetting the Transmitter Restores the transmitter to the following factory settings: • Controls = unlocked Press and hold the transmitter link button while turning on the transmitter until power LED turns off. When the link button is released, the transmitter will automatically initiate linking to find an available receiver. Press the link but­...
  • Page 20: Accessories

    Cable, Instrument, 2.5 foot (.75 m), 4 Pin Mini Connector (TA4F) to 1/4­inch Connec­ WA302 tor. Cable, Instrument, 2-foot (0.7m), 4-pin Mini Connector (TA4F) with Right-Angle 1/4- WA304 inch Connector, used with Shure Wireless Bodypack Transmitters Shure Rechargeable Battery SB904 USB-C Battery Charger SBC10-USBC...
  • Page 21: Specifications

    2400 - 2483.5 MHz and 5725 - 5875 MHz 2400 - 2483.5 MHz and 5725 - 5825 MHz Dependent on frequency band Transmit Mode Shure proprietary digital RF Output Power 10 mW E.I.R.P. maximum Operating Temperature Range 0°C (32°F) to 50°C (122°F)
  • Page 22 Shure Incorporated 2.4 GHz only: Up to 4 typical, 5 optimal GLXD6+ Power Requirements 9 V – 15 V, 400 mA (efficiency level VI power supply) Antenna Type Dual-band PIFA Dimensions 5.4 x 3.7 x 1.89 in. (138 x 95 x 48 mm) Weight 19.75 oz (560 g)
  • Page 23 Shure Incorporated Maximum Input Level -20 dBm GLXD1+ Power Requirements Shure Rechargeable Li-Ion Battery SB904 USB Power Supply (US/Canada) SBC10-USB15WSUSTWJ Antenna Type Dual-band Internal Monopole Dimensions 4.5 x 2.6 x 1.1 in. (115 x 66.94 x 28.51 mm), (H x W x D) Weight 5.4 oz (153.1 g), without battery...
  • Page 24 Shure Incorporated Nominal Capacity 2420 mAh (8.71 Wh) Nominal Voltage 3.6 V Dimensions 2.87 x 0.83 x 0.82 inches (72.8 x 20.96 x 20.80 mm), (H x W x D) Weight 1.89 oz. (53.7 g) Housing PC/ABS Ambient Temperature Range Charging: 0°C (32°F) to 40°C (104°F)
  • Page 25: Diagrams

    Shure Incorporated Maximum Input Power 200 mA @ 100 V AC (full load) Output Voltage 5 v DC @ 1 A Maximum Output Power Diagrams 25/38...
  • Page 26: Frequency Tables

    Shure Incorporated Frequency Tables Z2 (2.4 GHz only) Group 1 Gr 1 - Ch 1 2424 2425 2442 2443 2462 2464 Gr 1 - Ch 2 2418 2419 2448 2450 2469 2471 Gr 1 - Ch 3 2411 2413 2430...
  • Page 27 Shure Incorporated Group 4 2476 2478 Group A 2405 2412 2418 2425 2431 2438 2444 2450 2457 2464 2471 2477 Group B 2404 2409 2414 2419 2425 2431 2436 2441 2446 2452 2458 2463 2468 2473 2478 Group 1 (2.4 GHz)
  • Page 28 Shure Incorporated Group B (2.4 GHz) 2404 2409 2414 2419 2424 2429 2434 2439 2444 2449 2454 2459 2464 2469 2474 2478 Group 1 (5.8 GHz) Gr 1 - Ch 1 5730 5760 5790 5820 Gr 1 - Ch 2...
  • Page 29 Shure Incorporated Group B (5.8 GHz) 5729 5734 5739 5744 5749 5754 5759 5764 5769 5774 5779 5784 5789 5794 5799 5804 5809 5814 5819 5824 5829 5836 5841 5846 Group 1 (2.4 GHz) Gr 1 - Ch 1 2405...
  • Page 30 Shure Incorporated Group 1 (5.8 GHz) Gr 1 - Ch 1 5730 5766 5802 5838 Gr 1 - Ch 2 5736 5772 5808 5844 Gr 1 - Ch 3 5742 5778 5814 5851 Gr 1 - Ch 4 5748 5784...
  • Page 31 Shure Incorporated Group B (5.8 GHz) 5729 5734 5739 5744 5749 5754 5759 5764 5769 5774 5779 5784 5789 5794 5799 5804 5809 5814 5819 5824 5829 5834 5839 5844 5850 5856 5861 5866 5871 Group 1 (2.4 GHz) Gr 1 - Ch 1...
  • Page 32 Shure Incorporated Group 1 (5.8 GHz) Gr 1 - Ch 1 5730 5754 5778 5802 Gr 1 - Ch 2 5736 5760 5784 5808 Gr 1 - Ch 3 5742 5766 5790 5814 Gr 1 - Ch 4 5748 5772...
  • Page 33: Important Safety Instructions

    Shure Incorporated IMPORTANT SAFETY INSTRUCTIONS READ these instructions. KEEP these instructions. HEED all warnings. FOLLOW all instructions. DO NOT use this apparatus near water. CLEAN ONLY with dry cloth. DO NOT block any ventilation openings. Allow sufficient distances for adequate ventilation and install in accordance with the manufacturer’s instructions.
  • Page 34: Warning

    EMC performance. • Use this battery charger only with the Shure charging modules and battery packs for which it is designed. Use with other than the specified modules and battery packs may increase the risk of fire or explosion.
  • Page 35: Certifications

    This device may not cause harmful interference. This device must accept any interference received, including interference that may cause undesired operation. Shure has determined that this product is a Class B harmonized product. The following sections provide country-specific EMC/ EMI or product safety information.
  • Page 36 Paraguay Distributor: Microsystems S.R.L., Senador Long 664 c/Dr. Lilio, Asunción, Paraguay Connection and use of this communications equipment is permitted by the Nigerian Communications Commission. 運用に際しての注意 この機器の使用周波数帯では、電子レンジ等の産業・科学・医療用機器のほか工場の製造ライン等で使用されている移動体識別用の 構内無線局(免許を要する無線局)及び特定小電力無線局(免許を要しない無線局)並びにアマチュア無線局(免許を要する無 線局)が運用されています。 この機器を使用する前に、近くで移動体識別用の構内無線局及び特定小電力無線局並びにアマ   チュア無線局が運用さ れていないことを確認して下さい。 万一、この機器から移動体識別用の構内無線局に対して有害な電波干渉の事例が発生した場合には、 速やかに使用周波 数を変更するか又は電波の発射を停止した上、下記連絡先にご連絡頂き、混  信回避のための処置等(例えば、パーティ ションの設置など)についてご相談して下さい。 その他、この機器から移動体識別用の特定小電力無線局あるいはアマチュア無線局に対して有害な電波干渉の事例が発生 した場合など何かお困りのことが起きたときは、保証書に記載の販売代  理店または購入店へお問い合わせください。代 でもご覧いただけます。 理店および販売店情報は Shure 日本語ウェブサイト  http://www.shure.co.jp 現品表示記号について 36/38...
  • Page 37 0.1% weight over weight (w/w) is available upon request. CE Notice: Hereby, Shure Incorporated declares that this product with CE Marking has been determined to be in compliance with Euro­ pean Union requirements. The full text of the EU declaration of conformity is available at the following site: https:// www.shure.com/en-EU/support/declarations-of-conformity.
  • Page 38 Shure Incorporated 38/38...
