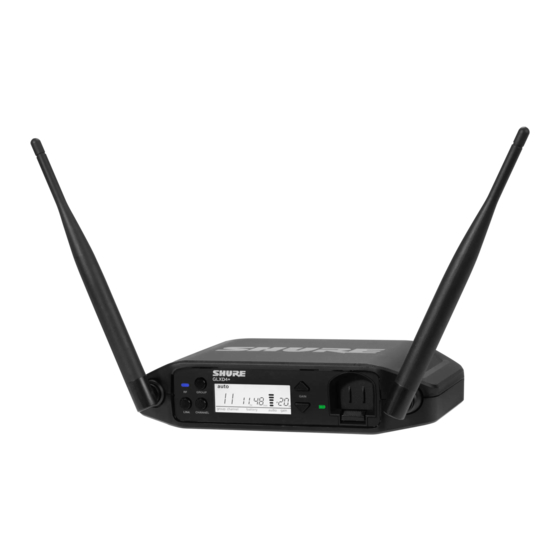

- Page 1 GLXD4+ Wireless Receiver Online user guide for GLXD4+ wireless system. Version: 0.1 (2022-K)
-
Page 2: Table Of Contents
Charging from an AC Power Source Accessories Charging Status LEDs Specifications Charging Times and Transmitter Runtimes Diagrams Important Tips for Care and Storage of Shure Recharge able Batteries Frequency Tables Tips to Improve Wireless System Performance IMPORTANT SAFETY INSTRUCTIONS Additional Tips... -
Page 3: Glxd4+ Wireless Receiver
Wireless Receiver System Overview The GLX-D+ wireless systems from Shure combines the leading edge of automatic frequency management technology with bestinclass intelligent lithiumion battery rechargeability, worldrenowned microphones and unparalleled design and construc tion. Available in a wide offering of bodypack and handheld configurations - including vocal, headset and presenter systems as well as traditional guitar options. - Page 4 Shure Incorporated ① Antenna Two antennas per receiver. Antennas pick up the signal from the transmitter. ② RF status LED ◦ ON = Linked transmitter is on ◦ Flashing = Searching for transmitter ◦ OFF = Linked transmitter off or transmitter unlinked ③...
-
Page 5: Receiver Screen
Shure Incorporated ⑪ Power supply port Connect the supplied 15 V DC external power supply. ⑫ Mic output XLR microphone output port supplies microphone-level audio output. ⑬ USB-C port Connect to computer to download firmware updates. ⑭ Instr output TRS ¼" (6.35mm) audio output. Connect to mixers, recorders, and amplifiers. -
Page 6: Set Up The Receiver
Shure Incorporated ⑦ Transmitter locked Displayed when linked transmitter controls are locked. ⑧ Scanning Indicates a scan is in progress. ⑨ Auto Indicates that the selected group has backup channels available. Set Up the Receiver Connect the PS43 power supply to the receiver and plug the cord into an AC power source. -
Page 7: Transmitters
Shure Incorporated Transmitters ① Antenna Carries wireless signal. ② Status LED LED color and state indicate transmitter status. ③ Power switch Turns the transmitter on/off. ④ TA4M input port Connects to a 4-Pin mini connector (TA4F) microphone or instrument cable. -
Page 8: Transmitter Status Led
Shure Incorporated Holds 1 Shure rechargeable battery. ⑧ Microphone cartridge GLXD2+ transmitter models are available with the following cartridge types: SM58, Beta 58, Beta 87A. Transmitter Status LED LED is green during normal operation. LED color or flashing indicates a change in transmitter status as shown in the following table:... -
Page 9: Correct Microphone Placement
Shure Incorporated Correct Microphone Placement • Hold the microphone within 12 inches from the sound source. • For a warmer sound with increased bass presence, move the microphone closer to the sound source. • Do not cover grille with hand. -
Page 10: Batteries And Charging
Shure Incorporated Batteries and Charging GLX-D+ transmitters are powered by Shure SB904 lithium-ion rechargeable batteries. Advanced battery chemistry maximizes runtimes with zero memory effects, eliminating the need to discharge batteries prior to charging. When not in use, recommended battery storage temperature is 10°C (50°F) to 25°C (77°F). -
Page 11: Charging Status Leds
Note: If receiver is powered off and remains plugged in, battery will continue charging. Important Tips for Care and Storage of Shure Rechargeable Batteries Proper care and storage of Shure batteries results in reliable performance and ensures a long lifetime. •... -
Page 12: Tips To Improve Wireless System Performance
Shure Incorporated Tips to Improve Wireless System Performance If you encounter interference or dropouts, try the following suggestions: Place receiver at least 3 meters (10 feet) away from Wi-Fi access points, computers, or other active 2.4 GHz and 5.8 GHz sources. -
Page 13: System Set Up
Shure Incorporated • Keep transmitters more than 2 meters (6 feet) apart. This is less critical with shorter receiver-to-transmitter distances or if receivers are connected to a GLX-D+ frequency manager. Note: If transmitters are within 6 inches of non-GLX-D+ transmitters or microphone cartridges, audible noise is possible. -
Page 14: Multiple Receiver Systems
Shure Incorporated Multiple Receiver Systems To run more than two receivers at the same time, the GLX-D+ frequency manager is recommended to improve RF reliability (only compatible with GLXD4R+). However, you can run multiple receivers without the frequency manager. Select the group by determining the total number of receivers in your system. -
Page 15: Gain Adjustment
Shure Incorporated To change the band mode: Press and hold the channel button while powering on the receiver. Continue to hold the channel button for approximate ly 5 seconds until the band selection menu opens. Press the up/down gain button to select a band mode. The screen will flash momentarily and scan for the best channel to use. -
Page 16: Firmware
Download Shure Update Utility from shure.com To update your firmware, connect the device to your computer using a USB-C cable and open the Shure Update Utility. Resetting Components Use the reset function if it is necessary to restore the transmitter or receiver to their factory settings. - Page 17 Shure Incorporated Issue Indicator Status Solution Turn on transmitter. Make sure the batteries are installed correct Receiver RF LED off Link transmitter and receiver. Charge or change transmitter battery. Make sure AC adapter is securely plugged Receiver display off into electrical outlet.
-
Page 18: Accessories
Cable, Instrument, 2.5 foot (.75 m), 4 Pin Mini Connector (TA4F) to 1/4inch Connec WA302 tor. Cable, Instrument, 2-foot (0.7m), 4-pin Mini Connector (TA4F) with Right-Angle 1/4- WA304 inch Connector, used with Shure Wireless Bodypack Transmitters Shure Rechargeable Battery SB904 USB-C Battery Charger SBC10-USBC... - Page 19 Shure Incorporated RF Output Power 10 mW E.I.R.P. maximum Ambient Temperature Range Charging: 0°C (32°F) to 40°C (104°F) Operating: 0°C (32°F) to 45°C (113°F) Polarity Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) pro...
- Page 20 Pin Assignments XLR Output 1=ground, 2=hot, 3=cold 6.35 mm (1/4") connector Tip=audio, Ring=no audio, Sleeve=ground RECEIVER ANTENNA INPUT: Impedance 50 Ω Maximum Input Level -20 dBm GLXD1+ Power Requirements Shure Rechargeable Li-Ion Battery SB904 USB Power Supply (US/Canada) SBC10-USB15WSUSTWJ 20/36...
- Page 21 Ground (cable shield) + 5 V bias Audio Tied through active load to ground (on instru ment adapter cable, pin 4 floats) GLXD2+ Power Requirements Shure Rechargeable Li-Ion Battery SB904 USB Power Supply (US/Canada) SBC10-USB15WSUSTWJ Dimensions 9.69 in. (246 mm) Weight SM58 9.7 oz (275 g), without battery...
- Page 22 Shure Incorporated BETA 87A 9.3 oz (265 g), without battery Housing Aluminum alloy, ABS plastic Maximum Input Level SM58 146 dB SPL BETA 58 147 dB SPL BETA 87A 147 dB SPL SB904 Battery Type Rechargeable Li-Ion Nominal Capacity 2420 mAh (8.71 Wh) Nominal Voltage 3.6 V...
-
Page 23: Diagrams
Shure Incorporated Maximum Input Power 600 mA @ 100 V AC (full load) Output Voltage 5 v DC @ 3 A Maximum Output Power 15 W SBC10-USB Power Supply Input Voltage Range 100 to 240 V AC Maximum Input Power... -
Page 24: Frequency Tables
Shure Incorporated Frequency Tables Z2 (2.4 GHz only) Group 1 Gr 1 - Ch 1 2424 2425 2442 2443 2462 2464 Gr 1 - Ch 2 2418 2419 2448 2450 2469 2471 Gr 1 - Ch 3 2411 2413 2430... - Page 25 Shure Incorporated Group 4 2476 2478 Group A 2405 2412 2418 2425 2431 2438 2444 2450 2457 2464 2471 2477 Group B 2404 2409 2414 2419 2425 2431 2436 2441 2446 2452 2458 2463 2468 2473 2478 Group 1 (2.4 GHz)
- Page 26 Shure Incorporated Group B (2.4 GHz) 2404 2409 2414 2419 2424 2429 2434 2439 2444 2449 2454 2459 2464 2469 2474 2478 Group 1 (5.8 GHz) Gr 1 - Ch 1 5730 5760 5790 5820 Gr 1 - Ch 2...
- Page 27 Shure Incorporated Group B (5.8 GHz) 5729 5734 5739 5744 5749 5754 5759 5764 5769 5774 5779 5784 5789 5794 5799 5804 5809 5814 5819 5824 5829 5836 5841 5846 Group 1 (2.4 GHz) Gr 1 - Ch 1 2405...
- Page 28 Shure Incorporated Group 1 (5.8 GHz) Gr 1 - Ch 1 5730 5766 5802 5838 Gr 1 - Ch 2 5736 5772 5808 5844 Gr 1 - Ch 3 5742 5778 5814 5851 Gr 1 - Ch 4 5748 5784...
- Page 29 Shure Incorporated Group B (5.8 GHz) 5729 5734 5739 5744 5749 5754 5759 5764 5769 5774 5779 5784 5789 5794 5799 5804 5809 5814 5819 5824 5829 5834 5839 5844 5850 5856 5861 5866 5871 Group 1 (2.4 GHz) Gr 1 - Ch 1...
- Page 30 Shure Incorporated Group 1 (5.8 GHz) Gr 1 - Ch 1 5730 5754 5778 5802 Gr 1 - Ch 2 5736 5760 5784 5808 Gr 1 - Ch 3 5742 5766 5790 5814 Gr 1 - Ch 4 5748 5772...
-
Page 31: Important Safety Instructions
Shure Incorporated IMPORTANT SAFETY INSTRUCTIONS READ these instructions. KEEP these instructions. HEED all warnings. FOLLOW all instructions. DO NOT use this apparatus near water. CLEAN ONLY with dry cloth. DO NOT block any ventilation openings. Allow sufficient distances for adequate ventilation and install in accordance with the manufacturer’s instructions. -
Page 32: Warning
EMC performance. • Use this battery charger only with the Shure charging modules and battery packs for which it is designed. Use with other than the specified modules and battery packs may increase the risk of fire or explosion. -
Page 33: Certifications
This device must accept any interference received, including interference that may cause undesired operation. Certified under FCC Part 15. Shure has determined that this product is a Class B harmonized product. The following sections provide country-specific EMC/ EMI or product safety information. - Page 34 運用に際しての注意 この機器の使用周波数帯では、電子レンジ等の産業・科学・医療用機器のほか工場の製造ライン等で使用されている移動体識別用の 構内無線局（免許を要する無線局）及び特定小電力無線局（免許を要しない無線局）並びにアマチュア無線局（免許を要する無 線局）が運用されています。 この機器を使用する前に、近くで移動体識別用の構内無線局及び特定小電力無線局並びにアマ チュア無線局が運用さ れていないことを確認して下さい。 万一、この機器から移動体識別用の構内無線局に対して有害な電波干渉の事例が発生した場合には、 速やかに使用周波 数を変更するか又は電波の発射を停止した上、下記連絡先にご連絡頂き、混 信回避のための処置等（例えば、パーティ ションの設置など）についてご相談して下さい。 その他、この機器から移動体識別用の特定小電力無線局あるいはアマチュア無線局に対して有害な電波干渉の事例が発生 した場合など何かお困りのことが起きたときは、保証書に記載の販売代 理店または購入店へお問い合わせください。代 でもご覧いただけます。 理店および販売店情報は Shure 日本語ウェブサイト http://www.shure.co.jp 現品表示記号について 現品表示記号は、以下のことを表しています。 この無線機器は 2.4GHz 帯の電波を使用し、変調方式は「その他」の方式、想定与 干渉距離は 80m です。 2,400MHz～ 2,483.5MHz の全帯域を使用し、移動体識別装置の帯域を回避することはできません。 Waste Electrical and Electronic Equipment (WEEE) Directive 34/36...
- Page 35 0.1% weight over weight (w/w) is available upon request. CE Notice: Hereby, Shure Incorporated declares that this product with CE Marking has been determined to be in compliance with Euro pean Union requirements. The full text of the EU declaration of conformity is available at the following site: https:// www.shure.com/en-EU/support/declarations-of-conformity.
- Page 36 Shure Incorporated 36/36...
