GLXD4R+

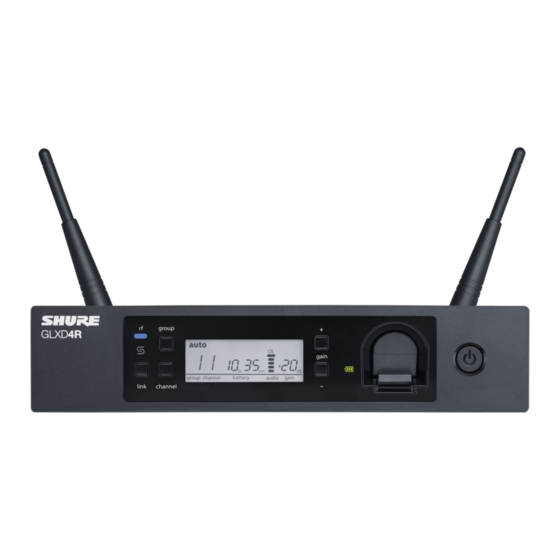

Set Up the Receiver
1.
Attach the included antennas to the back of the receiver.
2.
Connect the power supply to the receiver and plug the cord into an AC power source.
3.
Connect the audio output to an amplifier or mixer.
Install Transmitter Batteries
Bodypack:
1.
Move the locking lever to the open position and slide the battery door open.
2.
Place the battery into the transmitter.
3.
Close the battery door.
Handheld:
1.
Unscrew and remove the battery cover.
2.
Place the battery into the transmitter.
3.
Replace and tighten the battery cover.
Shure Incorporated
3/11
Advertisement
Table of Contents
Related Manuals for Shure GLXD4R+
Summary of Contents for Shure GLXD4R+
- Page 1 Shure Incorporated GLXD4R+ Set Up the Receiver Attach the included antennas to the back of the receiver. Connect the power supply to the receiver and plug the cord into an AC power source. Connect the audio output to an amplifier or mixer.
-
Page 2: System Setup
Shure Incorporated System Set Up Important: Before beginning, turn off all receivers and transmitters. Turn on and link each receiver/transmitter pair one at a time to prevent cross-linking. Turn on a receiver. Press and hold the group button to select a group (if necessary). If the group is already set, press the channel button to scan for the best available channel. -
Page 3: Gain Adjustment
Shure Incorporated Important! Do not turn on and operate both linked transmitters at any time. Turn off both transmitters before beginning. Press the group button to select a group. The receiver automatically scans the selected group to find the best available channel. -
Page 4: Locking And Unlocking The Controls
Note: The transmitter status LED will flash red/green if a locked switch is set to the off position. Firmware New versions of the firmware can be uploaded and installed using the Shure Update Utility tool. Download Shure Update Utility from shure.com... - Page 5 Shure Incorporated KEEP these instructions. HEED all warnings. FOLLOW all instructions. DO NOT use this apparatus near water. CLEAN ONLY with dry cloth. DO NOT block any ventilation openings. Allow sufficient distances for adequate ventilation and install in accordance with the manufacturer’s instructions.
-
Page 6: Information To The User
• Consult the dealer or an experienced radio/TV technician for help. Certified under FCC Part 15. Shure has determined that this product is a Class B harmonized product. The following sections provide country-specific EMC/ EMI or product safety information. Certifications... - Page 7 Paraguay Distributor: Microsystems S.R.L., Senador Long 664 c/Dr. Lilio, Asunción, Paraguay Connection and use of this communications equipment is permitted by the Nigerian Communications Commission. 運用に際しての注意 この機器の使用周波数帯では、電子レンジ等の産業・科学・医療用機器のほか工場の製造ライン等で使用されている移動体識別用の 構内無線局（免許を要する無線局）及び特定小電力無線局（免許を要しない無線局）並びにアマチュア無線局（免許を要する無 線局）が運用されています。 この機器を使用する前に、近くで移動体識別用の構内無線局及び特定小電力無線局並びにアマ チュア無線局が運用さ れていないことを確認して下さい。 万一、この機器から移動体識別用の構内無線局に対して有害な電波干渉の事例が発生した場合には、 速やかに使用周波 数を変更するか又は電波の発射を停止した上、下記連絡先にご連絡頂き、混 信回避のための処置等（例えば、パーティ ションの設置など）についてご相談して下さい。 その他、この機器から移動体識別用の特定小電力無線局あるいはアマチュア無線局に対して有害な電波干渉の事例が発生 した場合など何かお困りのことが起きたときは、保証書に記載の販売代 理店または購入店へお問い合わせください。代 理店および販売店情報は Shure 日本語ウェブサイト でもご覧いただけます。 http://www.shure.co.jp 現品表示記号について 9/11...
- Page 8 0.1% weight over weight (w/w) is available upon request. CE Notice: Hereby, Shure Incorporated declares that this product with CE Marking has been determined to be in compliance with European Union requirements. The full text of the EU declaration of conformity is available at the following site: https:// www.shure.com/en-EU/support/declarations-of-conformity.
- Page 9 Shure Incorporated （四）应当承受辐射射频能量的工业、科学及医疗（ISM）应用设备的干扰或其他合法的无线电台（站）干扰； （五）如对其他合法的无线电台（站）产生有害干扰时，应立即停止使用，并采取措施消除干扰后方可继续使用； （六）在航空器内和依据法律法规、国家有关规定、标准划设的射电天文台、气象雷达站、卫星地球站（含测控、测距、接收、 导航站）等军民用无线电台（站）、机场等的电磁环境保护区域内使用微功率设备，应当遵守电磁环境保护及相关行业主管部门 的规定。 11/11...
