Mercia Garden Products 04GREEN0606SD-V6 Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
x2
2mm Drill bit

Advertisement

loading
Need help?

Need help?

Do you have a question about the 04GREEN0606SD-V6 and is the answer not in the manual?

Questions and answers

Related Manuals for Mercia Garden Products 04GREEN0606SD-V6

Summary of Contents for Mercia Garden Products 04GREEN0606SD-V6

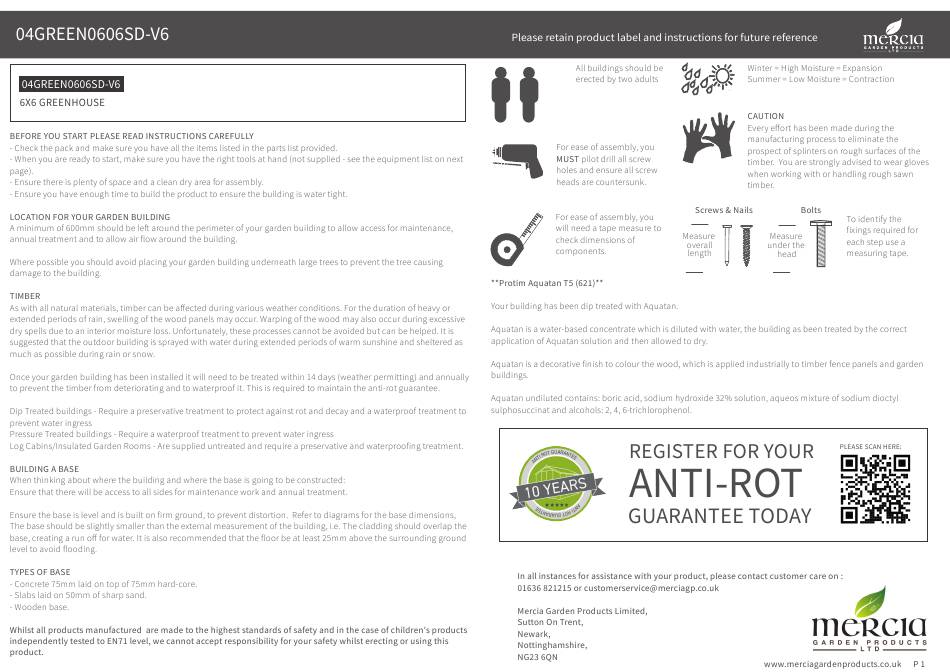

  • Page 1 2mm Drill bit...
  • Page 3 Before assembly please make sure you have a suitable base ready to erect your building Opening Window AI-04GREENOW560X460-V1 Fascia - 12x56x1075mm x4 MADE IN GREAT BRITAIN S1256-1075mm Overall Dimensions: Base Dimensions: Width = 1928mm Width = 1864mm Base Frame - 44x44x1864mm x2 Depth = 1824mm Depth = 1776mm F4444-1864mm...
  • Page 4 Step 1 IMPORTANT: Pre-drill before xing screws. Strip -12x56x1576mm x4 Strip -12x44x993mm x8 S1256-1576mm S1244-993mm Lay the Base Frames down as shown in the diagram. Ensure the base is square and laid on level ground, x Strip -12x44x1805mm x2 Window Cill 610mm x2 the base framing (No.
  • Page 5 Step 3 Step 5 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Attach the window strips (No. 33, 34, & 35) using Fix the remaining Window Side (No. 2) at the corner using 3 x 50mm 30mm screws as per the diagram. Ensure the framing does not protrude the width of the screws in the same way as the previous step.
  • Page 6 Step 7 Step 9 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Fix the Door frame to the base frame (No. Fix the two Door strips (No. 14) to either 13) between the Door sides. This allows side of the door panels with 3x30mm for the door sides to be correctly spaced.
  • Page 7 Step 11 IMPORTANT: Pre-drill before xing screws. Step 13 IMPORTANT: Pre-drill before xing screws. Lay the opening roof panel down (No. 5) Attach the strip (No.32) onto the window panel 30mm and place the styrene sheets (No. 27, 28) 16mm with 4x30mm black screws.
  • Page 8 Step 17 Step 15 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Place the Roof panels (No. 5) & (No. 6) Fix the strips (No. 29, 30) onto the on top of each gable, making sure they window frame using 3x30mm screws per are ush to each gable and meet at the strip.
  • Page 9 Step 19 Step 21 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Fix the door (No. 7) to the building Fix the corner trims (No.23) in position using 16x30mm black screws per using 4x30mm screws Butter y Hinge (No. 17) as shown in 16x30mm Screws the diagram.

  • Page 10: After Treatment

    Step 23 IMPORTANT: Pre-drill before xing screws. Fix the Roof trim (No. 15) to the top of the building and secure with 4x30mm screws as shown. 4x30mm Screws 30mm screw Pre drill It is ESSENTIAL that you apply wood hole treatment immediately after the building has been assembled.
