Mercia Garden Products 05DTOVPN0465DD-V2 Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
x2
2mm Drill bit

Advertisement

loading
Need help?

Need help?

Do you have a question about the 05DTOVPN0465DD-V2 and is the answer not in the manual?

Questions and answers

Related Manuals for Mercia Garden Products 05DTOVPN0465DD-V2

Summary of Contents for Mercia Garden Products 05DTOVPN0465DD-V2

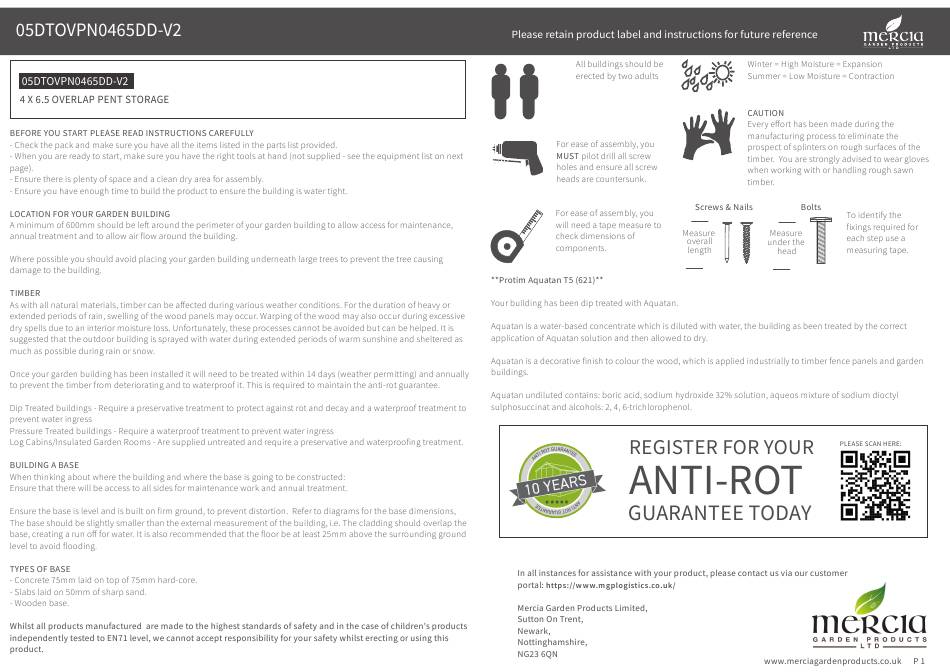

  • Page 1 2mm Drill bit...

  • Page 2: Any Questions

    PLEASE SCAN HERE: ANY QUESTIONS? Scan code contact us via our customer portal.
  • Page 3 ACCESSING VIDEO GUIDES... ACCESSING VIDEO GUIDES... 3. Scan QR code... Some steps within this set of instructions come with an added video guide for your convenience. These can be accessed via the QR code and used to aid you in constructing that step.
  • Page 4 End View Before assembly please make sure you have a Roof Support - 28x28x1133mm QTY 1 suitable base ready to erect your F2828-1133mm building End View Door Frame - 28x28x1085mm QTY 2 F2828-1085mm End View Door Side Frame - 28x28x1118mm QTY 1 F2828-1118mm MADE IN GREAT BRITAIN End View...
  • Page 5 Step 2 IMPORTANT: Pre-drill before xing screws. Pre Assembly PLEASE SCAN HERE: Parts Needed - No. 4 QTY 2 Before assembling remove the transportation blocks from the bottom of each panel. - No. 2 QTY 1 Take care removing the blocks as to not damage the panels. Tap with a at headed Place the back panels (No.
  • Page 6 Step 4 Step 6 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts Needed - No. 9 QTY 1 Parts Needed - No. 9 QTY 1 - No. 19 QTY 1 Place the rst door frame (No. Using 2x20mm screws x the 9) in-between the gable and “L”...
  • Page 7 Step 10 Step 8 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts Needed - No. 12 QTY 2 Align each door (No. 6) into the door - No. 13 QTY 1 gap and secure at either side using 3x30mm screws per hinge (No.
  • Page 8 Step 12 Step 14 IMPORTANT: Pre-drill before xing screws. Cut the felt (No. 21) into two strips measuring Once the roof is xed, secure the building to the oor with 2050mm (L) x 1000mm (W) and lay onto the 15x50mm screws. roof in the order shown in the diagram.
  • Page 9 Step 17 Step 15 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts Needed - No. 22 QTY 1 Parts Needed - No. 14 QTY 3 Screw the Staple (No. 22) to the left Fix the cover trims (No. 14) to the back Door, Make sure the Hasp (No.
  • Page 10 Step 18 Once constructed, apply a preserving treatment and a waterproo ng treatment to your garden building as soon as possible. This will help to protect your building and prevent decay. See page 11 for a full guide and instructions. Once fully treated, score around the protective covers on the glazing and carefully peel the coverings back.
  • Page 11 PLEASE SCAN HERE: ANY QUESTIONS? Scan code contact us via our customer portal.
