Mercia Garden Products 01DTSHRAX1008SDFW-V1 Manual

10x8 reverse/apex shed
Hide thumbs Also See for 01DTSHRAX1008SDFW-V1:

Advertisement

Quick Links

Download this manual
x2
2mm Drill bit

Advertisement

loading
Need help?

Need help?

Do you have a question about the 01DTSHRAX1008SDFW-V1 and is the answer not in the manual?

Questions and answers

Related Manuals for Mercia Garden Products 01DTSHRAX1008SDFW-V1

Summary of Contents for Mercia Garden Products 01DTSHRAX1008SDFW-V1

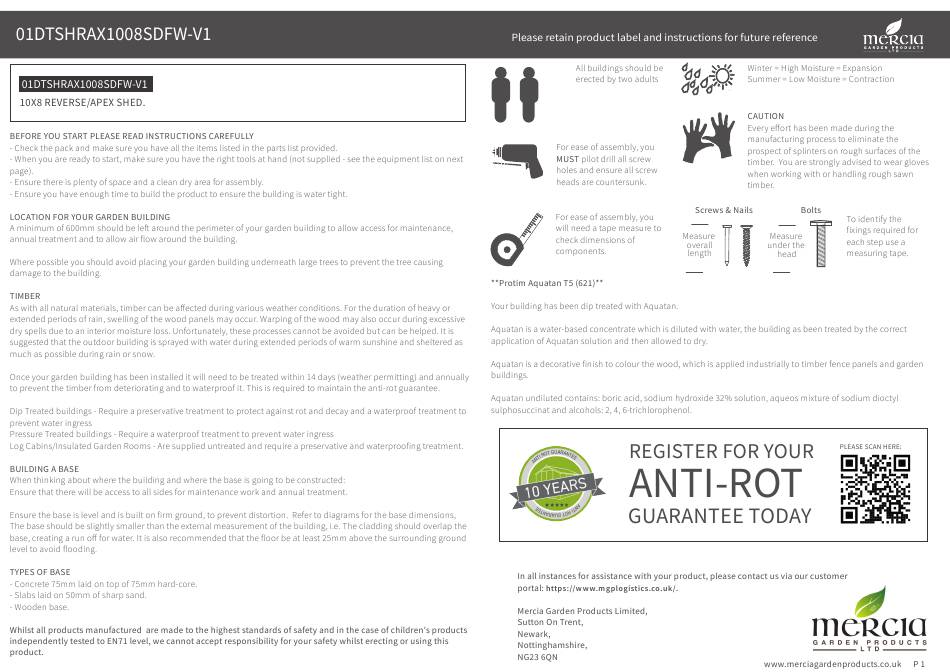

  • Page 1 2mm Drill bit...

  • Page 2: Any Questions

    PLEASE SCAN HERE: ANY QUESTIONS? Scan code contact us via our customer portal.
  • Page 3 ACCESSING VIDEO GUIDES... ACCESSING VIDEO GUIDES... 3. Scan QR code... Some steps within this set of instructions come with an added video guide for your convenience. These can be accessed via the QR code and used to aid you in constructing that step.
  • Page 4 This building that can be built as an Apex or a Reverse Apex. Also you can Before assembly choose in which arrangement you wish to have your panels set up. See the Inner Door Block 28x28x150mm QTY 1 please make sure you have a FS2828-150mm suitable base ready to erect your below images to give you an idea of which set up is most suitable for you.
  • Page 5 IMPORTANT: Pre-drill before xing screws. Nail Bag Step 1 Parts needed - No. 1 QTY 1 PLEASE SCAN HERE: There may be extra screws present in the nail bag No. 5 QTY 1 No. 24 QTY 3 60mm Screw x 12 30mm Screw x 169 Place the door (No.
  • Page 6 Step 2 IMPORTANT: Pre-drill before xing screws. Step 4 IMPORTANT: Pre-drill before xing screws. Parts needed - No. 8 QTY 2 Parts needed - No. 8 QTY 2 No. 20 QTY 8 Place the assembled oor panels (No.8) Secure the Floor (No. 8) to the Floor upside down onto a rm and level base.
  • Page 7 Step 6 Step 5 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts needed - No. 6 QTY 2 Parts needed - No. 3, (or 1, or 2 , or 4, QTY 1) No. 4, (or 1, or 2 QTY 2) No.
  • Page 8 Step 9 Step 7 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts needed - No. 3, (or 1, or 2, or 4 QTY 1) Parts needed - No. 1, (or 2, or 4 QTY 1) No. 4, (or 1, or 2 QTY 2) Locate of the Door Panel (No.
  • Page 9 Step 12 Step 11 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts needed - No. 9 QTY 4 Parts needed - No. 18 QTY 2 PLEASE SCAN HERE: No. 28 QTY 2 No. 25 QTY 2 No. 28 QTY 1 Place the Roof Panels (No.
  • Page 10 Step 13 Step 15 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts needed - No. 11 QTY 8 PLEASE SCAN HERE: Before fully xing the roof, check by eye No. 12 QTY 6 to see that the walls are straight by No.
  • Page 11 Step 16 Step 17 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts needed - No. 29 QTY 1 Parts needed - No. 16 QTY 10 No. 17 QTY 2 Cut the felt (No. 29) into three sheets Fit the Cover Trims (No.
  • Page 12 Step 20 Step 19 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts needed - No. 10 QTY 1 Parts needed - No. 27 QTY 1 No. 15 QTY 2 Screw the Pad Bolt (No. 27) on to the Use 3x30mm Screws to x each Door door (No.
  • Page 13 It is ESSENTIAL that you apply wood treatment immediately after the building has been assembled. AFTER TREATMENT: score around protective cover on glazing and carefuly peel covering back Want to share your experience with us? Leave us a review on Feefo, TrustPilot or Google. Your reviews help other people nd and trust our business, as well as helping to play an important role in our growth and improvement!
  • Page 14 PLEASE SCAN HERE: ANY QUESTIONS? Scan code contact us via our customer portal.
