Breakout Module Example: Transfer Application

7.4
This example shows the setup of a transfer in a Branch. Based on the package flow, this Branch is going in the
Forward direction ... EOB to Master. The Breakout Modules are used to break the Handshaking and allow the serial
communications to pass through. At Zone #5, we do not want the Handshaking between Zone #5 and Zone #4. This
wouldn't make sense for the application. The Breakout Module "breaks" the Handshaking so that Zone #5 cannot
make a Request to Zone #4. This same scenario is true between Zone #3 and Zone #2.

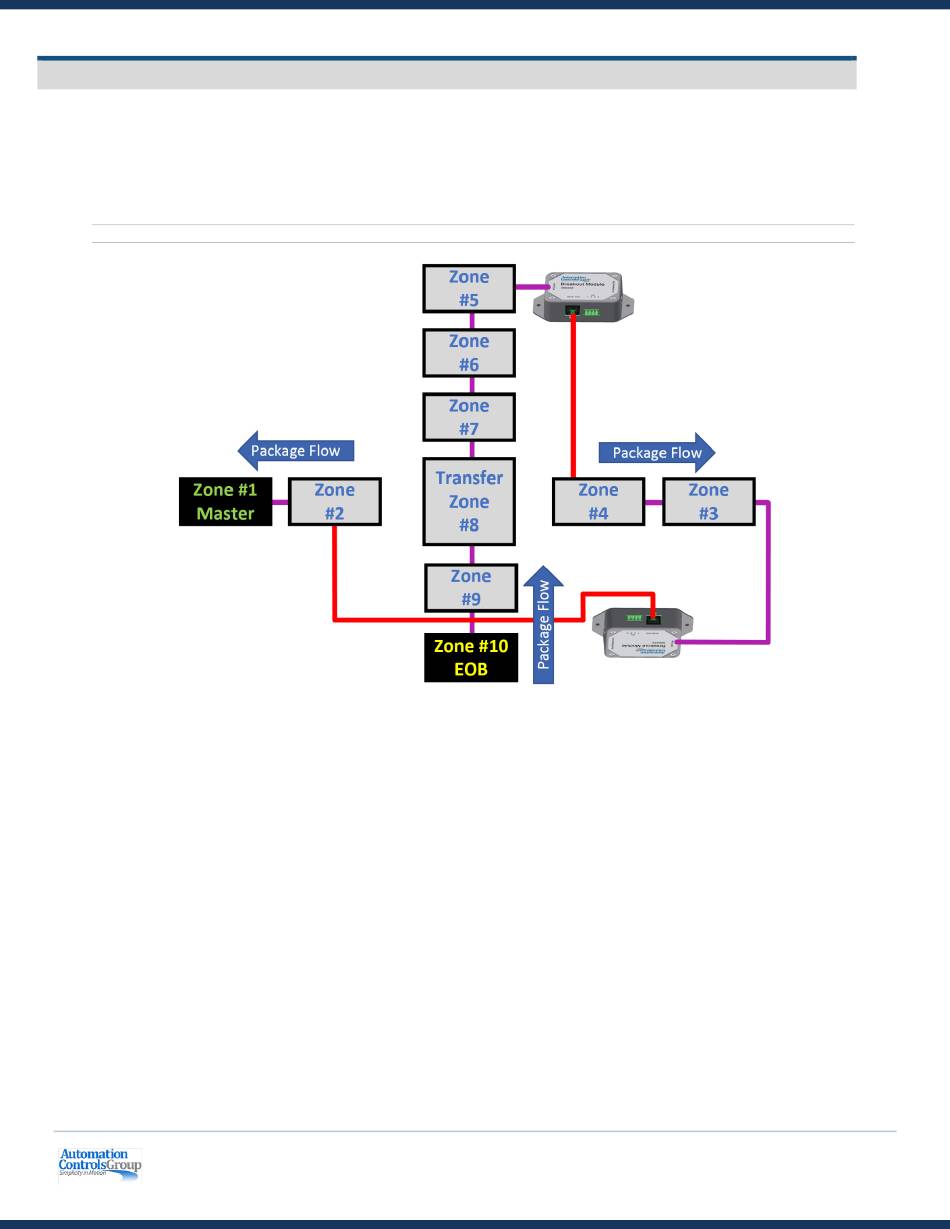

Figure 18: Breakout Modules in a Transfer Application
