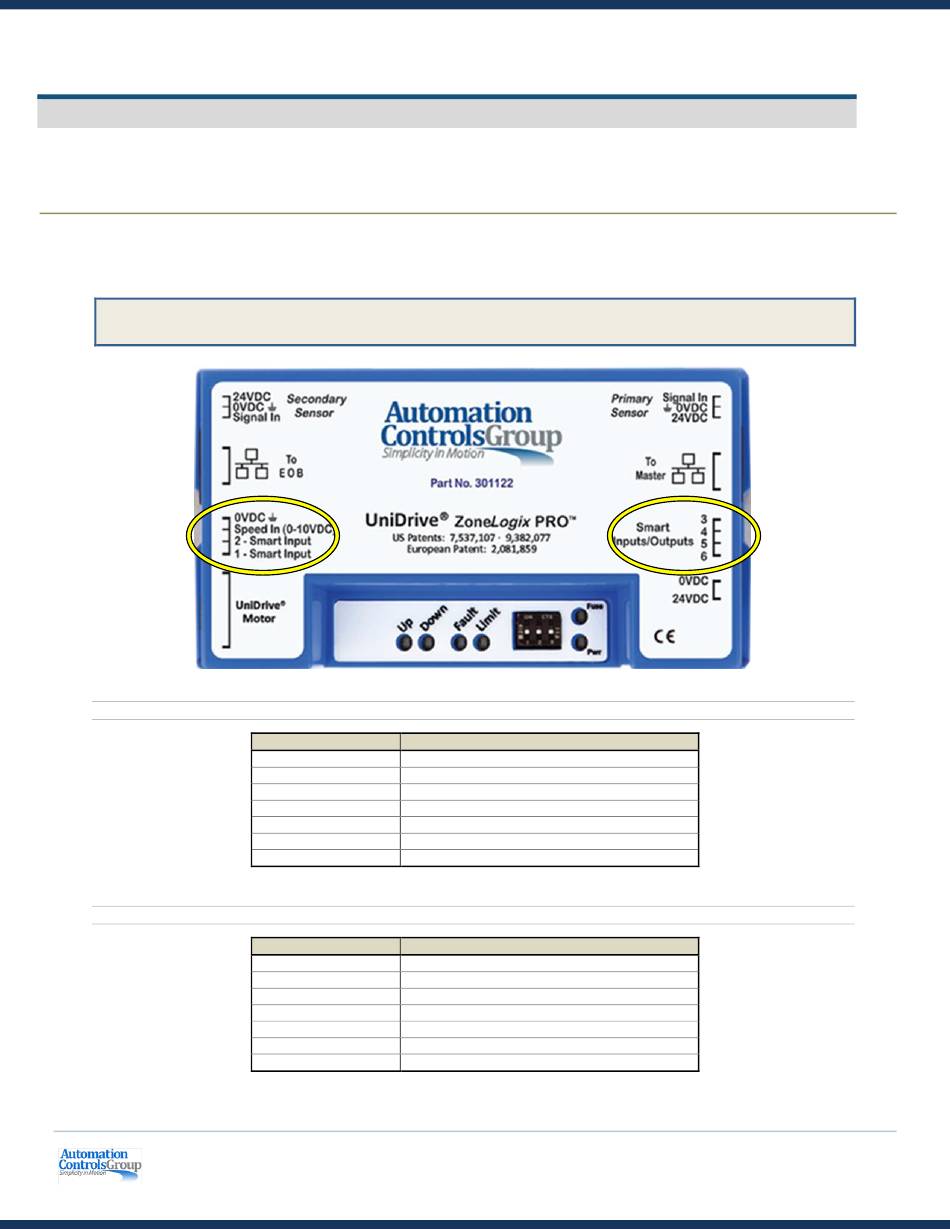

Smart I/O Connections

2.7
The function of each PNP pin depends on the configuration of the Zone Controller. See 2.3 Configuration DIP
Switches. Additional functions are available in Advanced Mode.

Basic Mode Functions

2.7.1
The following functions only apply when the Master Zone Controller DIP switch settings are configured for Basic
Mode.
IMPORTANT! All Smart I/O inputs and outputs except analog are PNP only and are active at 18 VDC or higher. The maximum
current available per output is 500 mA.

Table 3: Smart I/O Pin Definitions for the EOB Zone Controller

I/O Pin: Description:
1 Zone Hold In
2 Not Defined
3 Motor Running Out
4 Forward Request/Reverse Permission In
5 Forward Permission/Reverse Request Out
6 Zone No-Fault Out
Speed In Zone Speed (0-10 VDC Analog In)

Table 4: Smart I/O Pin Definitions for the Standard Zone Controller

I/O Pin: Description:
1 Zone Hold In
2 Local Speed Inhibit In
3 Motor Running Out
4 Forward Permission/Reverse Request In
5 Forward Request/Reverse Permission Out
6 Not Defined
Speed In Zone Speed (0-10 VDC Analog In)
ZoneLogix™ PRO Zone Controller User Guide | Revision 1.0 November 2019 | Page 16
