Advanced Mode System Configuration
Basic Mode provides a limited number of features. In Advanced Mode, the ZoneLogix™ PRO can be configured in
many different arrangements to provide the most versatile material handling control available.

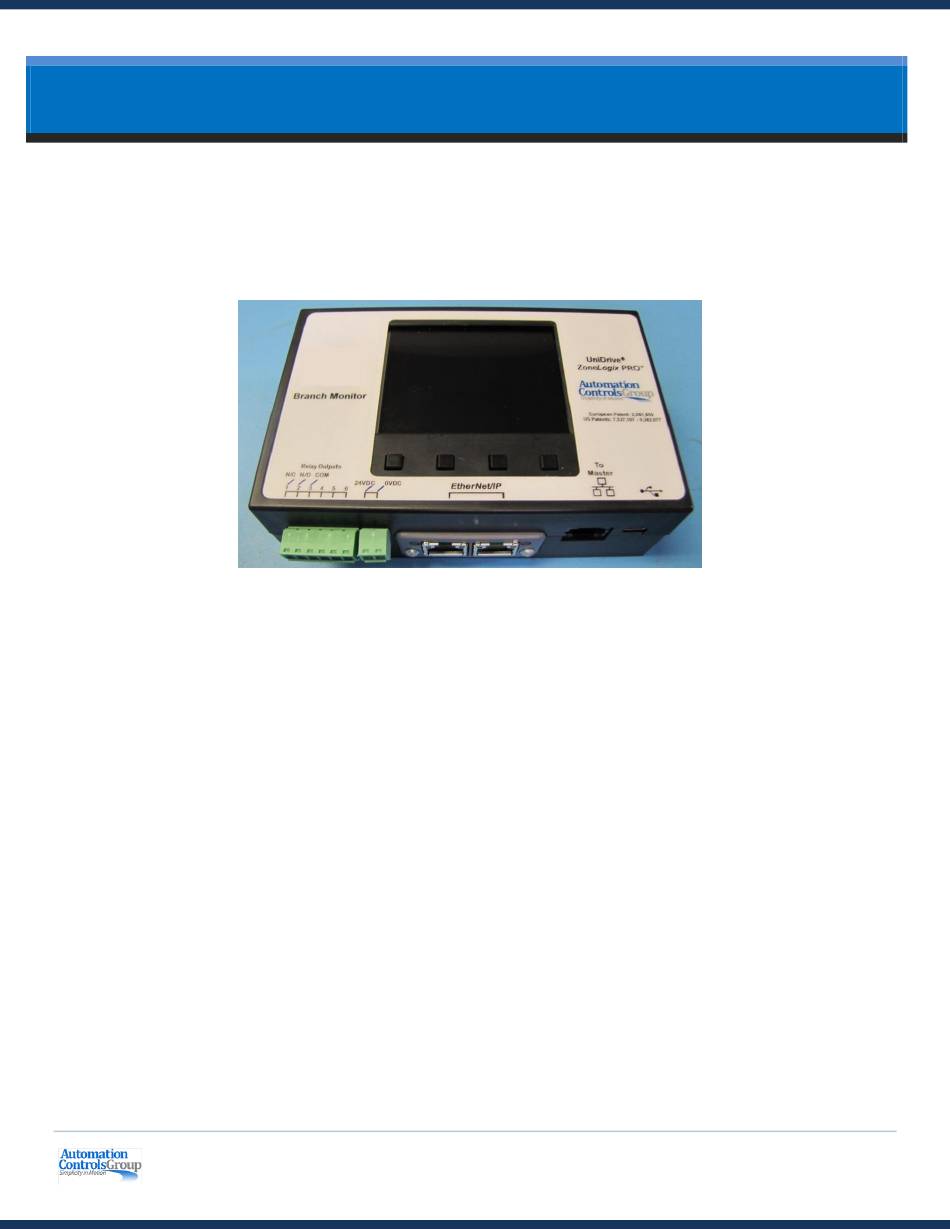

When the ZoneLogix™ PRO is configured in Advanced Mode, each zone is configured by the ZoneLogix™ PRO Branch
Monitor. Alternatively, each zone can be controlled by a PLC connected via EtherNet/IP.
See the companion ZoneLogix™ PRO Branch Monitor User Manual and ZoneLogix™ PRO Fieldbus Manual for further
information about Advanced Mode System Configuration.
ZoneLogix™ PRO Zone Controller User Guide | Revision 1.0 November 2019 | Page 24
