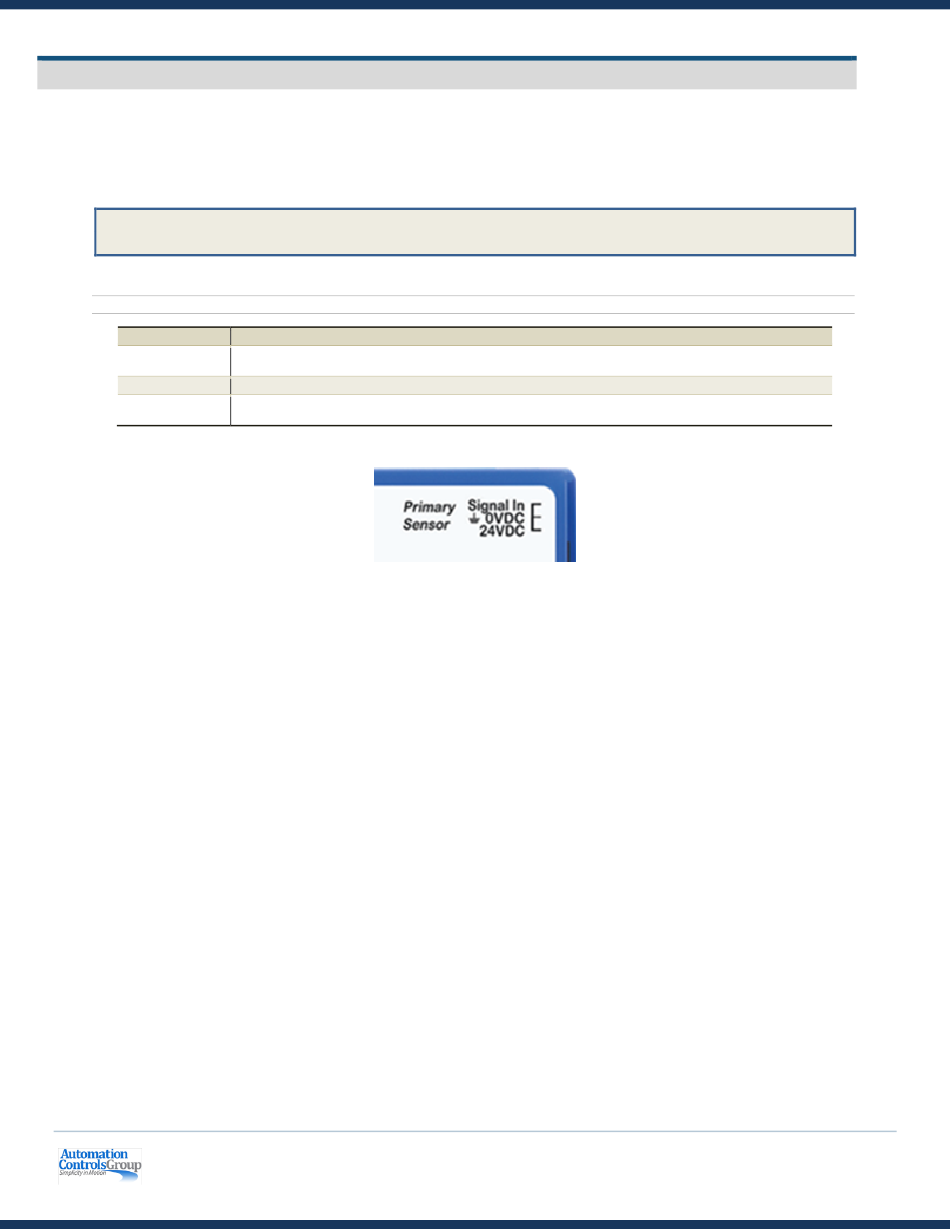

PNP Photoeye Sensor Connection

2.6
Each zone requires an object sensor to detect the objects that are in the zone when they reach the most downstream
edge of the zone. In the Forward (normal) flow direction, the Primary Sensor is the downstream sensor. In
applications where the conveyor is run in Reverse Flow, the Secondary Sensor then becomes the most downstream
sensor. Wire the leads of the sensor to the appropriate terminals on the Sensor Connection Header.
CAUTION! If the sensor is mounted on non-conductive equipment, such as a plastic slide, ground the body of the sensor to provide a
non-destructive discharge path in the event of a static electric shock.
Pin
Signal In
0VDC
24VDC

Table 2: PNP Sensor Connection Header

Notes:
PNP sensor input with maximum loading of <150 mA. This input must be 24VDC (active high) when an object blocks
the sensor.
DC Ground (See CAUTION above)
Sensor power. Use of this output for any purpose that requires more than 150 mA will cause the self-resettable
fuse to open and temporarily remove 24VDC power to the sensor.
