Configuration DIP Switches

2.3
The DIP switches are used to configure the zone type and motor rotation direction in the Forward (normal) flow
direction (EOB to Master).
NOTE: The DIP switches are read during power-up only. Set the switches, and then apply power to the Zone Controller.
NOTE: The direction of rotation is defined as viewed from the back side of the motor with the shaft extending away from the viewer.

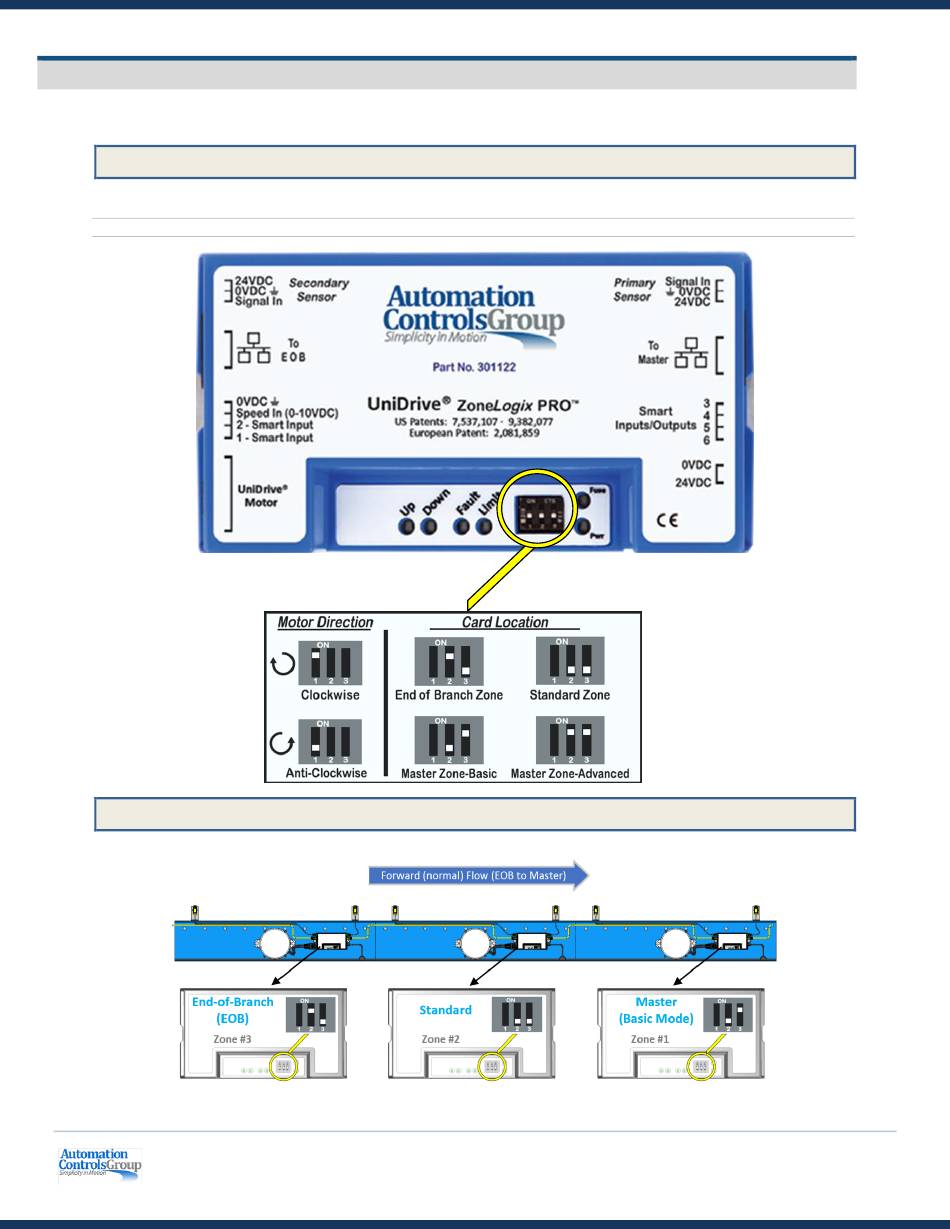

Figure 6: Default DIP Switch and Smart I/O

ZoneLogix™ PRO Zone Controller User Guide | Revision 1.0 November 2019 | Page 13
