Connect Firebox Cables; Din Rail Mounting Plate - Watchguard Firebox T35-R Hardware Manual

Turn off electrical power until the adapter and earth ground are connected, and you are
ready to turn on the Firebox.

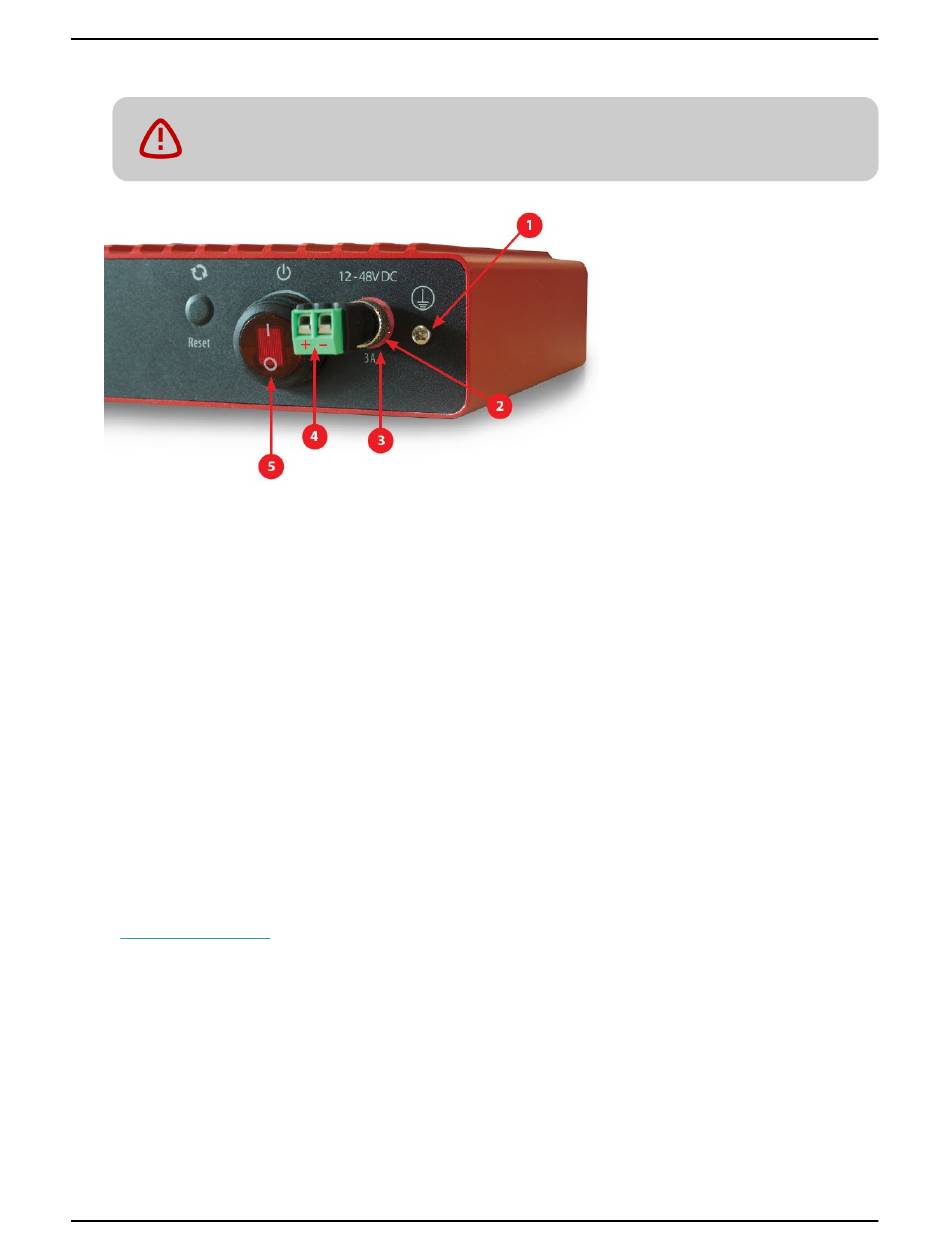

To attach the Direct DC Terminal Adapter to the Firebox:
1. Connect a 3.2 mm stranded copper ground wire to the ground terminal on the Firebox.
Connect the other end of the ground wire to the earth ground.
2. Insert the adapter into the DC port of the Firebox.
3. Tighten the retention screw.
4. Connect the positive wire to the side of the adapter indicated by a + symbol, then connect the
negative wire to the side of the adapter indicated by a — symbol.
5. Turn on the Firebox.

Connect Firebox Cables

Connect the Ethernet cables to complete the setup with WatchGuard System Manager or the Fireware Web
UI:
1. Use an Ethernet cable to connect interface 1 of the Firebox to your computer.
2. Use an Ethernet cable to connect interface 0 to a router or network that provides Internet access.
See Set Up Your Firebox

DIN Rail Mounting Plate

The DIN rail mounting plate enables you to mount the Firebox on a wall in a good location to increase the
wireless range. You can attach the mounting plate to the sides or bottom of the Firebox.
To install the mounting plate:
1. Securely screw the mounting plate to the Firebox with the included screws.
2. Clip the mounting plate onto the DIN rail.
