User Manual
Professional Surveillance Pack

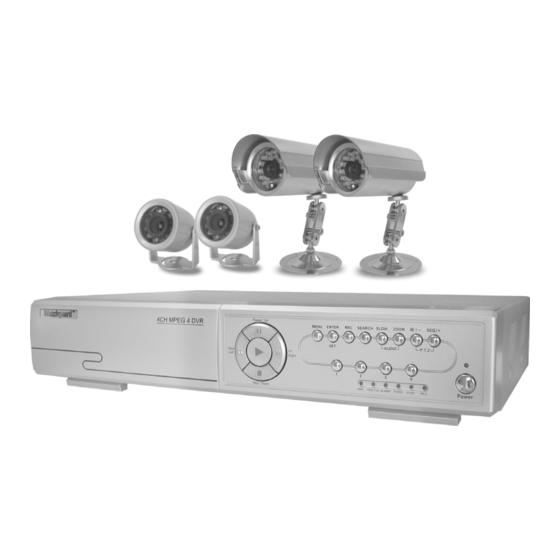

Digital Video Recorder with 4 Security Cameras
'QUICK INSTALLATION GUIDE'
DVR
- Advanced MPEG4 Video Compression Technology
- Multiplex Operation
- Long Recording Duration
- Intelligent Video Motion Detection Recording
- Remote Network Surveillance & Backup Functions
- Easy to operate like a VCR
- System Auto recovery after power loss (blackout)
www.watchguardalarms.com.au
MODEL: DVR4ENTPACK
N517
2 x Cameras –30m Infrared range for night operation
- High Quality CCD Image sensor
- 24 x IR LED's
- 420 TVL Resolution, 520 x 582 Pixels
2 x Cameras –15m Infrared range for night operation
- High Quality CCD Image sensor
- 12 x IR LED's
- 420 TVL Resolution, 520 x 582 Pixels
Advertisement
Table of Contents
Related Manuals for Watchguard DVR4ENTPACK
Summary of Contents for Watchguard DVR4ENTPACK
-
Page 1: Quick Installation Guide

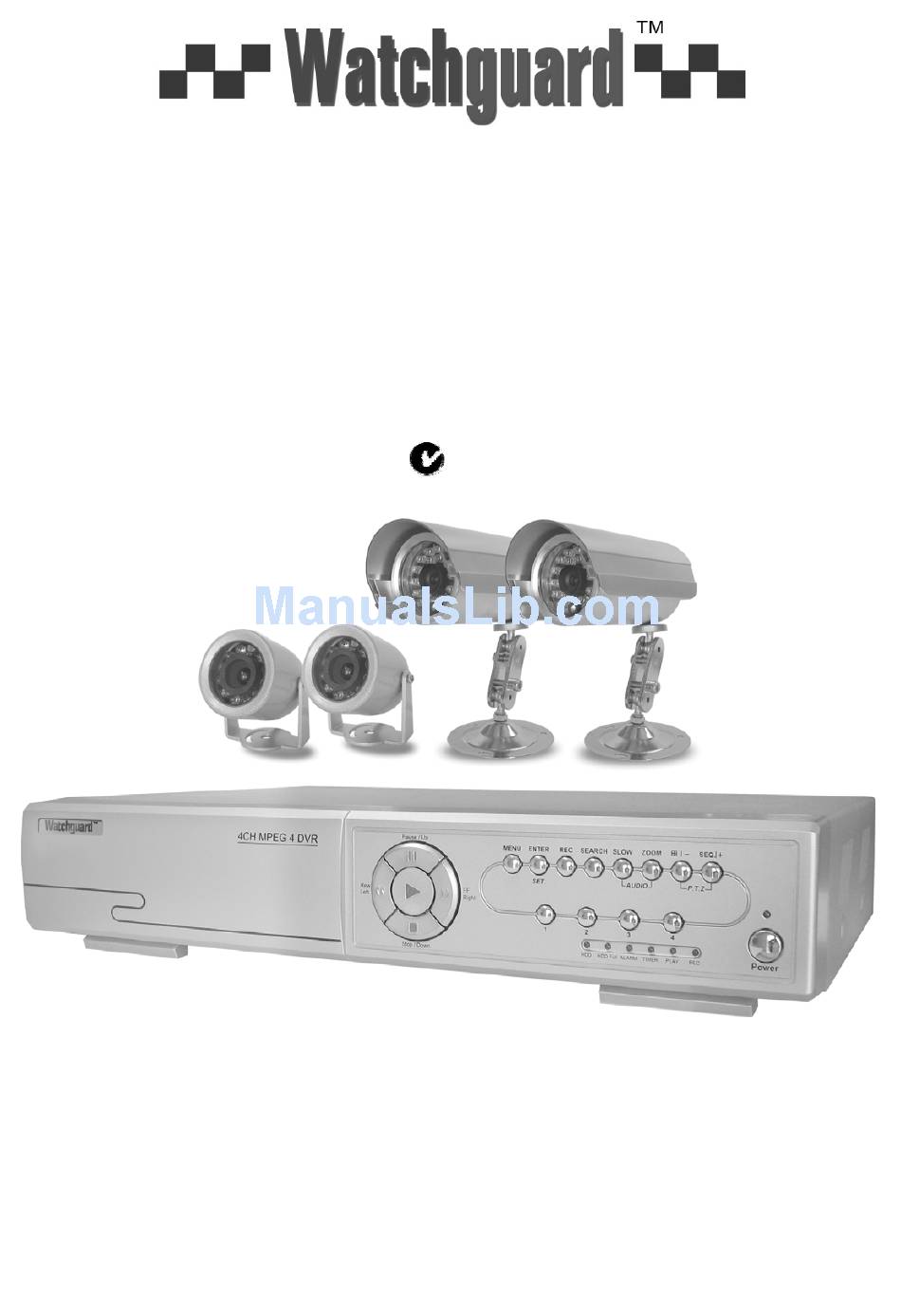

MODEL: DVR4ENTPACK Professional Surveillance Pack Digital Video Recorder with 4 Security Cameras ‘QUICK INSTALLATION GUIDE’ N517 2 x Cameras –30m Infrared range for night operation - Advanced MPEG4 Video Compression Technology - High Quality CCD Image sensor - Multiplex Operation - 24 x IR LED’s... -
