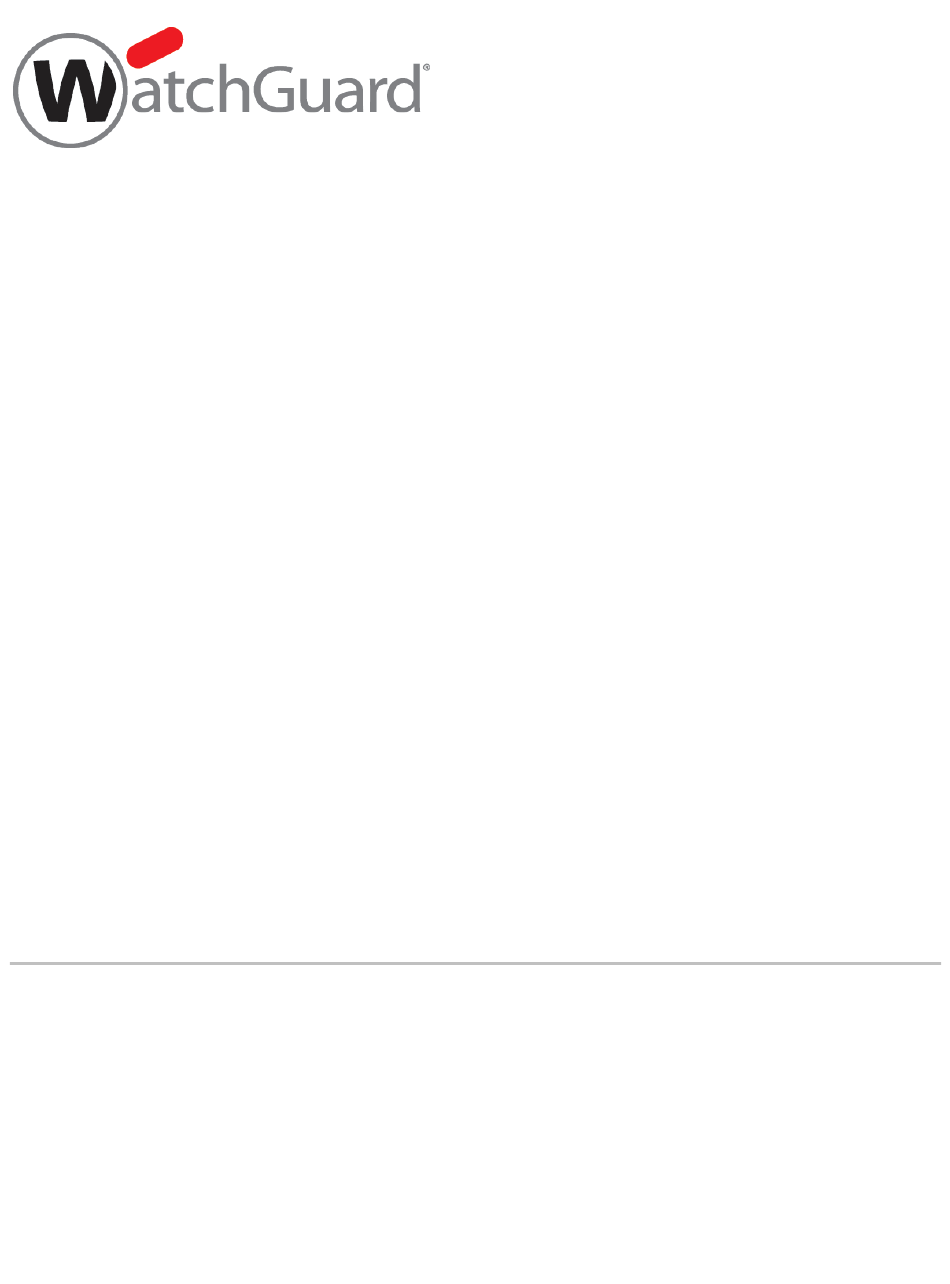

  • Page 1 ® Firebox T35-R Hardware Guide ® Firebox T35-R DS3AE5...
  • Page 2 Guide revised: 8/8/2022 Copyright, Trademark, and Patent Information Copyright © 1998 – 2022 WatchGuard Technologies, Inc. All rights reserved. All trademarks or trade names mentioned herein, if any, are the property of their respective owners. Complete copyright, trademark, patent, and licensing information can be found in the Copyright and Licensing Guide, available online at https://www.watchguard.com/wgrd-help/documentation/overview.

  • Page 3: Table Of Contents

    Contents WatchGuard Firebox T35-R Hardware Guide Fireware OS About Your Hardware Hardware Specifications Interface Specifications Power Requirements Environmental Requirements Hardware Description Front Rear Direct DC Terminal Adapter Connect Firebox Cables DIN Rail Mounting Plate Restore Factory Default Settings WatchGuard Technologies, Inc.

  • Page 4: Watchguard Firebox T35-R Hardware Guide

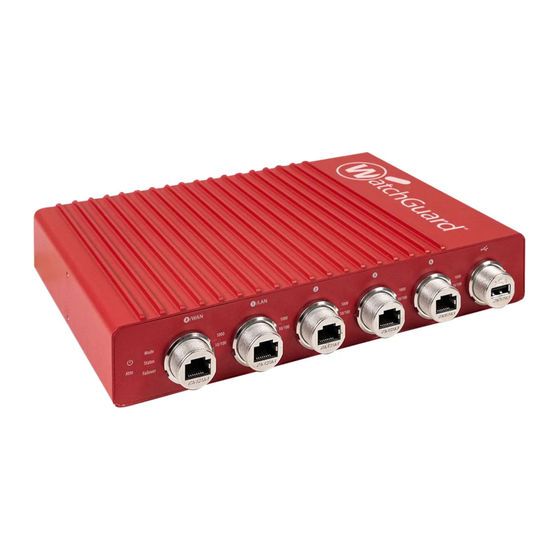

    From firewall and VPN protection to secure remote access, WatchGuard Firebox appliances support a broad range of network environments. This guide introduces the Firebox T35-R RoHS-compliant (lead-free) hardware product. Firebox T35-R is a rugged version of the Firebox T35, suitable for installation in harsh environments outside a typical small office or rack room.

  • Page 5: Power Requirements

    WatchGuard Firebox T35-R Hardware Guide Power Requirements The Direct DC Terminal Adapter is shipped with the Firebox. If you prefer to use an AC adapter, you must order it separately from your WatchGuard reseller. You can find a reseller on the WatchGuard Find Resellers page.
  • Page 6 WatchGuard Firebox T35-R Hardware Guide Network Interface Status Indicators The Firebox T35-R has five network interfaces. These interfaces are labeled 0/WAN, 1/LAN, 2, 3, 4. There are two status indicators for each interface. Indicator Indicator Color Interface Status Yellow Link speed: 1000 Mbps...

  • Page 7: Rear

    WatchGuard Firebox T35-R Hardware Guide Rear Rear view of the Firebox: Serial Port (Console) The leftmost port is an RJ45 serial console port. An RJ45 serial cable is not included with the device. USB Interface The device includes two USB interfaces, one in the front and one in the rear. Connect a USB storage device for USB backup and restore, or to store a support snapshot.

  • Page 8: Connect Firebox Cables

    5. Turn on the Firebox. Connect Firebox Cables Connect the Ethernet cables to complete the setup with WatchGuard System Manager or the Fireware Web 1. Use an Ethernet cable to connect interface 1 of the Firebox to your computer. 2. Use an Ethernet cable to connect interface 0 to a router or network that provides Internet access.

  • Page 9: Restore Factory Default Settings

    WatchGuard Firebox T35-R Hardware Guide Restore Factory Default Settings If you have a problem in your configuration file that you cannot correct, you can restore the factory default settings and start from a new configuration file. For example, if you do not know the administrator account passphrase, or if a power interruption causes damage to the Fireware OS, you can restore the Firebox to the factory default settings and build your configuration again.
