ALM Alarm Series
Quick Install Guide
ALM-Q124

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ALM Alarm Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Watchguard ALM Alarm Series

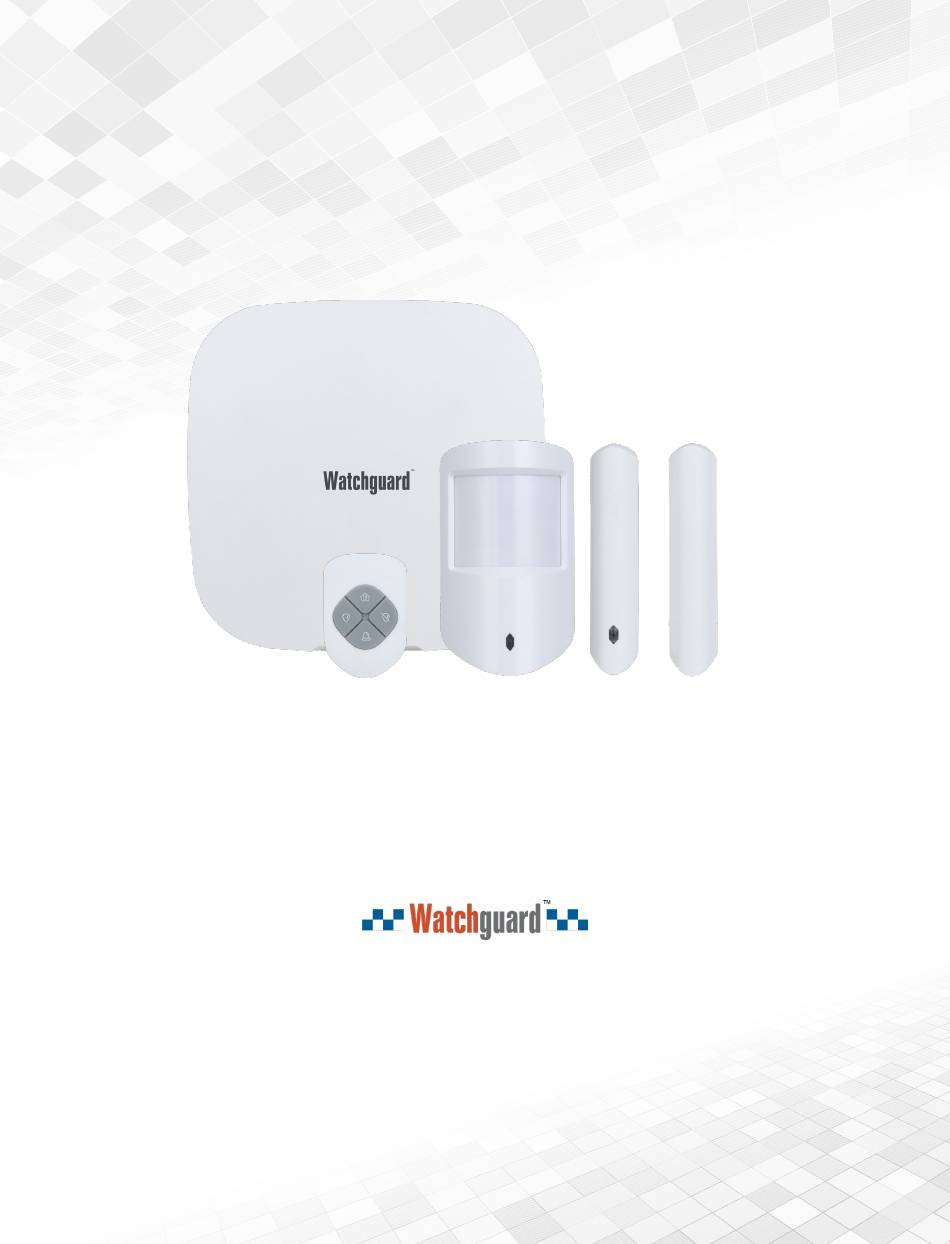

  • Page 1 ALM Alarm Series Quick Install Guide ALM-Q124...
  • Page 2: Pre-Installation

    1.0 Pre-Installation Thank you for purchasing this ALM Alarm Series. This install guide covers basic setup, installation and use of your surveillance system. For a complete user manual, detailed product information & warranty details, please visit: www.c5k.info and search for ALMKIT-D1 1.1 Pre-Installation Safety Information...
  • Page 3: Alarm Structure

    1.3 ALM Rear Panel & Setup Diagram Rear Panel No. Part: No. Part: Indicator AP switch Ethernet cable socket Reset switch Slot for micro SIM 1/2 Power switch Tamper switch Back Power Power cable socket Alarm Structure Wall Mounting Process Visit www.c5k.info for more information and support...
  • Page 4: First Time Setup

    2.0 First Time Setup 2.1 Connecting Power Plug in the adapter provided with the alarm hub and connect the hub to the Ethernet. 2.2 Inserting SIM Card Remove the cover on the back of the hub and slide a 4G SIM card into one of the 2 slots to the left of the ethernet port.
  • Page 5 3.0 Connecting the Alarm Hub to the DMSS App • On the Device screen, tap the plus button in the top right corner and select SN/Scan. (Fig. • Adding a device. Scan the device’s QR code directly or import the picture of the QR code by tapping photo icon in the top right corner, then tap Next.
  • Page 6: Using The App

    3.0 Connecting the Alarm Hub to the DMSS App (continued) • Configure network settings. (Fig. 2.2) 1. On the Add Device screen, tap Select Network Config Type. 2. Select the network types you want to configure. Wired Network: connected Ethernet, enable the DHCP function, or manually enter the IP address, subnet mask, gateway, DNS and MAC address to be in the same range as the network.
  • Page 7 4.2 Using the Hub’s Functions in DMSS Arming and Disarming: 1. On the Device page, select the alarm hub you want to change. • Home arming: Arm the system when inside the area of the alarm. This secures the perimeter of your home or business while allowing you to move freely within the building without tripping any alarms To enable, tap any of the...
  • Page 8 4.0 Using the App (continued) 4.5 Connecting CCTV Cameras to the Alarm Hub • On the alarm hub screen, tap Peripheral, and then tap +. (Fig. 3.5) • Select Add IPC. • Add an IPC to the hub. Manually add: 1.
  • Page 9: Troubleshooting

    5.0 Troubleshooting 5.1 Factory Reset The reset button is located at the back of the hub, under the cover, labelled RESET. Press and hold the button for 10 seconds to restart the hub and restore factory default settings. 5.2 Fault Check Notifications •...
  • Page 10: Quick Install Guide

    ALM Alarm Series Quick Install Guide All products, designs and software may be subject to change without prior written notice. Information, layout and graphics presented in this guide are the property of their respective owners. See www.c5k.info for more information.

This manual is also suitable for:

Almkit-d1
