- Page 1 MultiCharger14-2.4A User Manual © 2023-02 Cambrionix Ltd. All rights reserved.
-
Page 2: Table Of Contents
1. Table of Contents 1. Table of Contents 2. Your MultiCharger14-2.4A at a glance 3. Safety 3.1. Signal word panel 3.2. Safety alert symbol 3.3. Pictograms 3.4. Product modification 3.5. Power supply 3.6. Storage and Installation 4. Getting Started 4.1. Unpacking your product 4.2. - Page 3 8.2. What happens after I have requested a Return? 9. Compliance and Standards 10. Terms and Conditions MultiCharger14-2.4A Page 2 of 23...
-
Page 4: Your Multicharger14-2.4A At A Glance

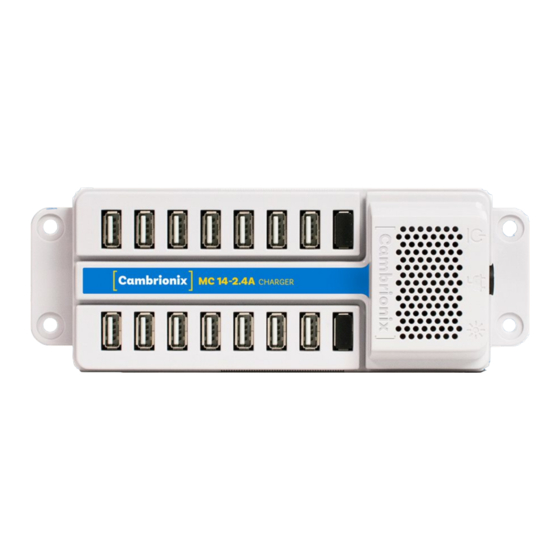

It provides 12W of charging power to each of its USB 2.0 Type-A ports, allowing mobile devices to be charged quickly, safely and reliably. All ports can be controlled using Cambrionix software to enable charging whilst monitoring important port and device information. -
Page 5: Safety
To avoid injuries and damage, observe the safety instructions in the user manual. This manual has been arranged to follow the IEC/ICEE 82079-1 standard. This is to facilitate the easier understanding and location of information relating to the MultiCharger14-2.4A. Any errors or omissions can be reported using our support ticket system (seeHelp and Support). -
Page 6: Safety Alert Symbol
Mandatory regulation 3.4. Product modification Cambrionix products are designed and manufactured to meet the requirements of UK and international safety regulations. Modifications to the product could affect safety and render the product non-compliant with relevant safety standards, resulting in injury or damage to the product. -
Page 7: Power Supply
Do not bend or pull the power cord with excessive force. Do not use a power supply that exceeds the power supply specifications within this manual 3.6. Storage and Installation This section describes safety precautions you must follow when installing and storing your MultiCharger14-2.4A. MultiCharger14-2.4A Page 6 of 23... - Page 8 Do not place the power cord near heat sources. Connect the plug only to an earthed socket. CAUTION Damage to your Cambrionix product may occur Operate the product only in an environment where the ambient temperature is inside the operating temperature range.
-
Page 9: Getting Started
This manual provides a reference for end-users installing for the first time and using their hub afterwards. As well as a guide for product safety-related information. The MultiCharger14-2.4A is intended to be used in an indoor static environment in which the environment falls within the tested specifications to provide charge, sync and management functionality. -
Page 10: Connecting To The Mains
2.4A whilst transferring data. 4.4. Charging Your MultiCharger14-2.4A will allow your device to charge at the maximum rate possible up to 2.4A. The way that charging takes place is the MultiCharger14-2.4A will provide the device with a capability to charge and the devices USB charging controller will determine the maximum amount of charge it wants to draw down. - Page 11 When contacting support, please supply the product information for the hub in question. This can be found on the Device Information Plate which is either on the underside or back of the unit. Providing serial and Purchase order numbers, can help identify your specific product and speed up the process. MultiCharger14-2.4A Page 10 of 23...
-
Page 12: Cleaning Your Multicharger14-2.4A
4.8. Cleaning your MultiCharger14-2.4A Cleaning the product is generally not required, although in some instances it may be necessary if excess dirt/ dust/ hair has accumulated, or if minor liquid spillages have occurred on the module during operation or storage. -
Page 13: Product Specifications
5. Product Specifications The MultiCharger14-2.4A is manufactured in the UK 5.1. Input Power Requirements Input Voltage (V) Input Current (A) Input Connector 4-Pin Mini DIN 5.2. Output Power Output Voltage (V) Output Voltage Tolerance (%) +/-5 Output Current, Max per Port (A) -
Page 14: Packaged Information
One thing you can do to prolong the lifetime of the ports on your MultiCharger14-2.4A is to use "sacrificial cables" in between the hub and your charging cables so when you repeatedly connect/ disconnect you are only going to wear the cables rather than the hub. -
Page 15: Power Supply
Input Current @ 230VAC (A) Input Frequency (Hz) 50-60 Input Connector Output Voltage, Max (V) Output Current, Max (A) Output Power, Max (W) Output Connector 4-Pin Mini DIN Dimensions WxDxH (mm) 210 x 85 x 46 MultiCharger14-2.4A Page 14 of 23... - Page 16 Function *-V is connected to AC input ground. MultiCharger14-2.4A Page 15 of 23...
-
Page 17: Troubleshooting
6. Troubleshooting If you experience any issues with your MultiCharger14-2.4A; please try the following troubleshooting steps, if the issue is not addressed in this section, please get in touch with your local vendor or Cambrionix. To contact Cambrionix Support please see Help and Support. -
Page 18: Device Connection
USB debugging authorisations’. Unplug the cable and reconnect. If this still doesn’t work, turn off the developer options at the top, re-enable it, and re-enable ‘USB Debugging’. You can get detailed info directly from ADB at each step to diagnose things: MultiCharger14-2.4A Page 17 of 23... -
Page 19: Hub Connection Issues
Hub not connecting to host If you see that the MultiCharger14-2.4A is not connecting to the host system, one of the issues may be caused by the USB drivers on your host system not being up to date. It is good practice to ensure... -
Page 20: Using With A Headless System
API recorder service. If you are finding this and you are not using it then we would recommend to uninstall it from your system entirely. Information on how to uninstall programs can be found in the Removing Software section. MultiCharger14-2.4A Page 19 of 23... -
Page 21: Disposal
August 12, 2005, and should not be disposed of as unsorted municipal waste. Please utilize your local WEEE collection facilities in the disposition of this product and otherwise observe all applicable requirements. Cambrionix PRN (Producer Registration Number) For the UK is "WEE/BH191TT". MultiCharger14-2.4A Page 20 of 23... -
Page 22: Returns And Damaged Products
8.2. What happens after I have requested a Return? If you have not purchased the Product(s) direct from Cambrionix please contact the vendor the item was originally purchased from for their returns process. - Page 23 9. Compliance and Standards CB Certificate CE Tested and marked FCC Part 15 Tested and marked RoHS Compliant Independently safety tested by the Underwriters Laboratory (UL) under file #E346549 Complies with EN60950 safety requirements for IT equipment MultiCharger14-2.4A Page 22 of 23...
- Page 24 10. Terms and Conditions The use of Cambrionix hubs is subject to the Cambrionix Terms and Conditions, the document can be downloaded and viewed using the following link. https://downloads.cambrionix.com/documentation/en/Cambrionix-Terms-and-Conditions.pdf MultiCharger14-2.4A Page 23 of 23...
- Page 25 The Maurice Wilkes Building Cowley Road Cambridge CB4 0DS United Kingdom +44 (0) 1223 755 520 enquiries@cambrionix.com www.cambrionix.com Cambrionix Ltd is a company registered in England and Wales with the company number 06210854 © 2023-02 Cambrionix Ltd. All rights reserved.
