- Page 1 Manual de usuario traducido SS15 2023-01 © 2022 Cambrionix Ltd. Todos los derechos reservados.
-
Page 2: Table Of Contents
1. Table of Contents 1. Table of Contents 2. Your SS15 at a glance 2.1. Key Features 3. Safety 3.1. Signal word panel 3.2. Safety alert symbol 3.3. Pictograms 3.4. Product modification 3.5. Power supply 3.6. Storage and Installation 4. Getting Started 4.1. - Page 3 5.5.3 Cambrionix API 5.5.4 Updating Software 5.5.5 Removing Software 5.5.6 Command Line Instructions (CLI) 5.6. Cleaning your SS15 6. Product Specifications 6.1. Requisitos de la alimentación entrante 6.2. Potencia de salida 6.3. Valores de riel de bandera de error 6.4. Especificaciones físicas 6.5.
-
Page 4: Your Ss15 At A Glance

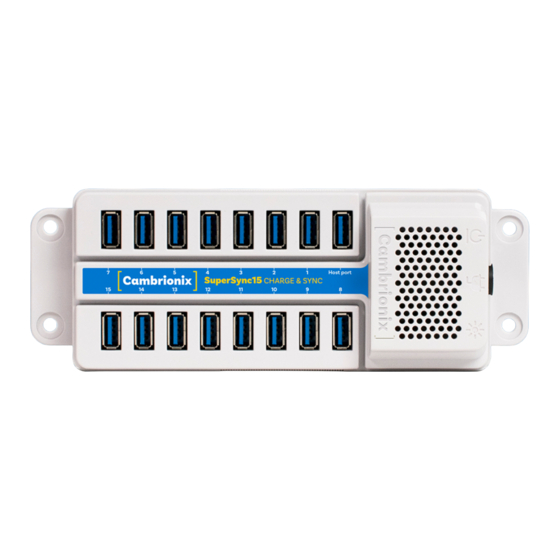

10 W of charging power to each of its 15 x USB 3.2 Gen 1 Tipo-A ports, allowing mobile devices to be charged quickly, safely and reliably. All ports can be controlled using Cambrionix software to enable charging and data transfer while monitoring important port and device information. -
Page 5: Safety
3. Safety This user manual is for informational purposes only, it contains information for the start-up and operation of this product. Note: the contents and the product described are subject to change without notice. To avoid injuries and damage, observe the safety instructions in the user manual. -
Page 6: Safety Alert Symbol
Mandatory regulation 3.4. Product modification Cambrionix products are designed and manufactured to meet the requirements of UK and International safety regulations. Modifications to the product could affect safety and render the product non-compliant with relevant safety standards, resulting in injury or damage to the product. -
Page 7: Power Supply
PRECAUCIÓN Fire, or personal injury may occur Do not obstruct air vents on the product. Do not cover the product in combustible material. PRECAUCIÓN Damage to your product may occur Do not bend or compress any part of the product. 3.5. -
Page 8: Storage And Installation
Do not place the power cord near heat sources. Connect the plug to an earthed socket. PRECAUCIÓN Damage to your Cambrionix product may occur Operate the product only in an environment where the ambient temperature is inside the operating temperature range. -
Page 9: Getting Started
4. Getting Started This manual provides a reference for end-users installing for the first time and using their hub after that. As well as a guide for product safety-related information. The SS15 is intended to be used in an indoor static environment in which the environment falls within the tested specifications to provide charge, sync and management functionality. -
Page 10: Conexión A La Red Eléctrica
Parte Descripción número de parte Reino Unido cable de alimentación 200144 200327 Cable de alimentación de EE. UU. Cable de alimentación de la UE 200329 Cable de alimentación australiano 200337 Cable de alimentación IND 200341 4.3. Conexión a la red eléctrica Connect the Power Supply Unit (PSU) to the hub using the DIN de 4 pines plug. -
Page 11: Cables
4.7. Registration You may register your product at www.cambrionix.com/product-registration 4.8. Help and Support FAQs and help can be found on the Help page here www.cambrionix.com/help_pages/help. -
Page 12: Using Your Ss15
In this section, you can find information using your hub in charge or sync application. You can also find information on managing your hub, changing port modes, connecting multiple hubs to one host and using Cambrionix Software. 5.1. Using without connecting to host When the Hub is switched on and is not connected to a local host computer it is automatically configured to charge devices using its intelligent charging algorithm. -
Page 13: Data Transfer
settings_reset settings_set sync_chrg 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 settings_set alt_sync_chrg 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 reboot This can also be done via the API if this is easier. Just supply that string (joined with \n) like: cbrxapi.cbrx_connection_set(handle, "settings", "settings_unlock\nsettings_rese- t\nsettings_set sync_chrg 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0\nsettings_set alt_sync_ chrg 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0\nreboot") - Page 14 La configuración de comunicaciones predeterminada debe establecerse en 115200 baudios, 8 bits de datos, sin paridad y un bit de parada. Esto a veces se denomina "115200,8,N,1". No se utiliza control de flujo. Se debe seleccionar la emulación de terminal ANSI SS15 Página 13 de 38...
-
Page 15: Scalability
5.3. Scalability Si desea sincronizar más dispositivos, se pueden conectar múltiples concentradores para permitir que se administren más dispositivos desde una sola computadora host simultáneamente. Para conectar varios concentradores en cadena, cada concentrador debe estar conectado a la red eléctrica individualmente, y el primer concentrador de la cadena debe estar conectado a la computadora local a través del "puerto de host"... -
Page 16: Manage Ports & Your Ss15
5.4. Manage Ports & Your SS15 Each port on your SS15 can be managed either individually, or all together. You can turn the ports off and on, change the port mode, or change the charging profiles. This can be done either through LiveViewer, or by connecting to the hub via the API. -
Page 17: Charging Profiles
settings_unlock settings_set sync_chrg 0000000000000000 5.4.3 Charging Profiles To ensure attached devices charge at their optimum rate, our smart USB hubs come with the below intelligent charging profiles built in: Intelligent charging algorithm which will select a profile 1-6 2.1A (Apple) BC1.2 Standard (this covers the majority of Android™... - Page 18 PRECAUCIÓN Your SS15 may not function correctly Do not install old firmware onto a new product PRECAUCIÓN Your Cambrionix Firmware may get corrupted Do not interrupt the Firmware update process. Do not disconnect the power during the update process. SS15...
-
Page 19: Software
5.5.1 Installing Software Cambrionix has two pieces of software that can be used to manage the devices and your hub using different host systems. This section has instructions and information on using our software on three of the most popular host systems. -
Page 20: Liveviewer
5.5.2 LiveViewer LiveViewer is an application downloaded from www.cambrionix.com/products/liveviewer. Once downloaded and installed on the host computer, LiveViewer allows you to switch the ports on and off and set the port mode. LiveViewer’s home page shows the following information about all the ports: •... -
Page 21: Cambrionix Api
5.5.3 Cambrionix API Cambrionix API allows you to monitor and control each port in more detail and to integrate these functions into your own workflow processes. The API comprises a daemon (which is a program running in the background) that can be downloaded from www.cambrionix.com/products/api... -
Page 22: Removing Software
5.5.5 Removing Software If you wish to uninstall the software (Cambrionix LiveViewer and Cambrionix API) from your host system, the following steps can do this. One thing to note when removing the API is to check you have also removed the recorder service which will install alongside it. -
Page 23: Command Line Instructions (Cli)
Examples include Serial, ZTerm, PuTTy, and Minicom. If you would like more information, please look at our more in-depth information here: www.cambrionix.com/cli Two example commands can be seen below, you can use these commands to check hub information and health. -
Page 24: Cleaning Your Ss15
If there is a dirt/ spillage over a ventilation slot, external data/ power connector or product aperture, please remove power from the unit without touching the liquid and contact Cambrionix immediately Asegúrese de que el producto esté apagado y de que el cable de alimentación se haya desconectado del producto. -
Page 25: Product Specifications
6. Product Specifications The SS15 is manufactured in the UK 6.1. Requisitos de la alimentación entrante Voltaje de entrada 12 V CC Corriente de entrada 15 A Conexión de entrada DIN de 4 pines 6.2. Potencia de salida Voltaje de salida 5,0 ... -
Page 26: Información Empaquetada
(available from what's included section) These can be ordered from the reseller or solution partner you purchased your SS15 from, or from Cambrionix directly. Para encontrar uno de nuestros socios locales, visite www.cambrionix.com/partners donde puede obtener información sobre los proveedores y distribuidores locales que pueden ayudarlo... -
Page 27: Power Supply
6.7. Power Supply Input Voltage 100-240VAC 4A @ 115VAC Input Current 2A @ 230VAC Input Frequency 50-60Hz Input Connector Output Voltage Output Current Output Power (Max) 180W Output Connector 4-pin DIN Dimensions 210 x 85 x 46mm SS15 Página 26 de 38... - Page 28 Alfiler Función *-V está conectado a tierra de entrada de CA. SS15 Página 27 de 38...
-
Page 29: Troubleshooting
7. Troubleshooting If you experience any issues with your SS15; please try the following solutions, if your issue is not addressed in this section, please get in touch with your local vendor or Cambrionix. 7.1. Initial troubleshooting tips Some tips and information to check first. -
Page 30: Device Connection
es decir, si el LED parpadea lo siguiente: BBBB SLSSSLSS, el número binario es 01000100. 7.4. Device connection. If you are having device connection issues please read through the following common solutions to see if this resolves your observed behaviour. Device issues when updating We have found that during updates on some devices the connection can be dropped or lost on the device, this is due to devices going in and out of the bootloader and requiring different... -
Page 31: Hub Connection Issues
If you have done this step and it still does not work, go to Developer Options and click ‘Revoke USB debugging authorisations’. Unplug the cable and reconnect. If this still doesn’t work, turn off the developer options at the top, re-enable it, and re- enable ‘USB Debugging’. -
Page 32: No Gui
El concentrador no se conecta al host If you see that the SS15 is not connecting to the host system, one of the issues may be caused by the USB drivers on your host system not being up to date. Es una buena práctica asegurarse de que tiene instalados los últimos controladores y actualizaciones en su sistema host, que generalmente es manejado por el sistema operativo, pero a veces puede requerir una actualización directamente del fabricante de controladores de host USB, que se encuentra en... -
Page 33: Software Troubleshooting
*=debug>/etc/opt/cambrionix/cambrionix.log.cfg Then after re-producing the problem, you can zip the logs from the folder /var/log/cambrionix You may delete the file below when you are finished with it. /etc/opt/cambrionix/cambrionix.log.cfg 7.7. Software troubleshooting Some users have noted that the API can cause a high level of CPU usage. This can sometimes be linked to the API ... -
Page 34: Disposal
August 12, 2005, and should not be disposed of as unsorted municipal waste. Please utilize your local WEEE collection facilities in the disposition of this product and otherwise observe all applicable requirements. Cambrionix PRN (Producer Registration Number) For the UK is "WEE/BH191TT". SS15 Página 33 de 38... -
Page 35: Returns And Damaged Products
9.2. What happens after I have requested a Return? If you have not purchased the Product(s) direct from Cambrionix please contact the vendor the item was originally purchased from for their returns process. -
Page 36: Compliance And Standards
10. Compliance and Standards Certificado CB Probado y marcado CE Probado y marcado según la Parte 15 de la FCC Alojado en una envolvente a prueba de incendios de la especificación UL94-VO Cumplimiento de RoHS Probado independientemente por Underwriters Laboratory (UL) con el número de expediente #E346549 SS15 Página 35 de 38... - Page 37 This manual may make reference to trademarks, registered trademarks, and other protected names and /or symbols of third-party companies not related in any way to Cambrionix. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by Cambrionix, or an endorsement of the product(s) to which this manual applies by the third-party company in question.
- Page 38 Cambrionix Patents Application Title Link Grant Number Number Syncing and Charging GB2489429 1105081.2 2489429 Port CAMBRIONIX UK00002646615 2646615 00002646615 CAMBRIONIX VERY UK00002646617 2646617 00002646617 INTELLIGENT... MOD IT DS GB2591233 6089600 6089600 MOD IT eSearch 007918669 007918669 MOD IT 90079186690001 007918669-0001 90079186690001...
- Page 39 Application Title Link Grant Number Number MOD IT DS 195759 195759 MOD IT DS 329440-001 MOD IT DS 29/735,477 D936,001 MOD IT 6077254 6077254 6077254 MOD IT MM 6077255 6077255 6077255 MOD IT MM 2a6ebe915fe9 202012310 202012310 MOD IT MM 195758 MOD IT MM 329441-001...
- Page 40 The Maurice Wilkes Building Cowley Road Cambridge CB4 0DS Reino Unido +44 (0) 1223 755 520 enquiries@cambrionix.com www.cambrionix.com Cambrionix Ltd es una empresa registrada en Inglaterra y Gales con el número de empresa 06210854 2023-01 © 2022 Cambrionix Ltd. Todos los derechos reservados.
