Operations Manual: AEx Series

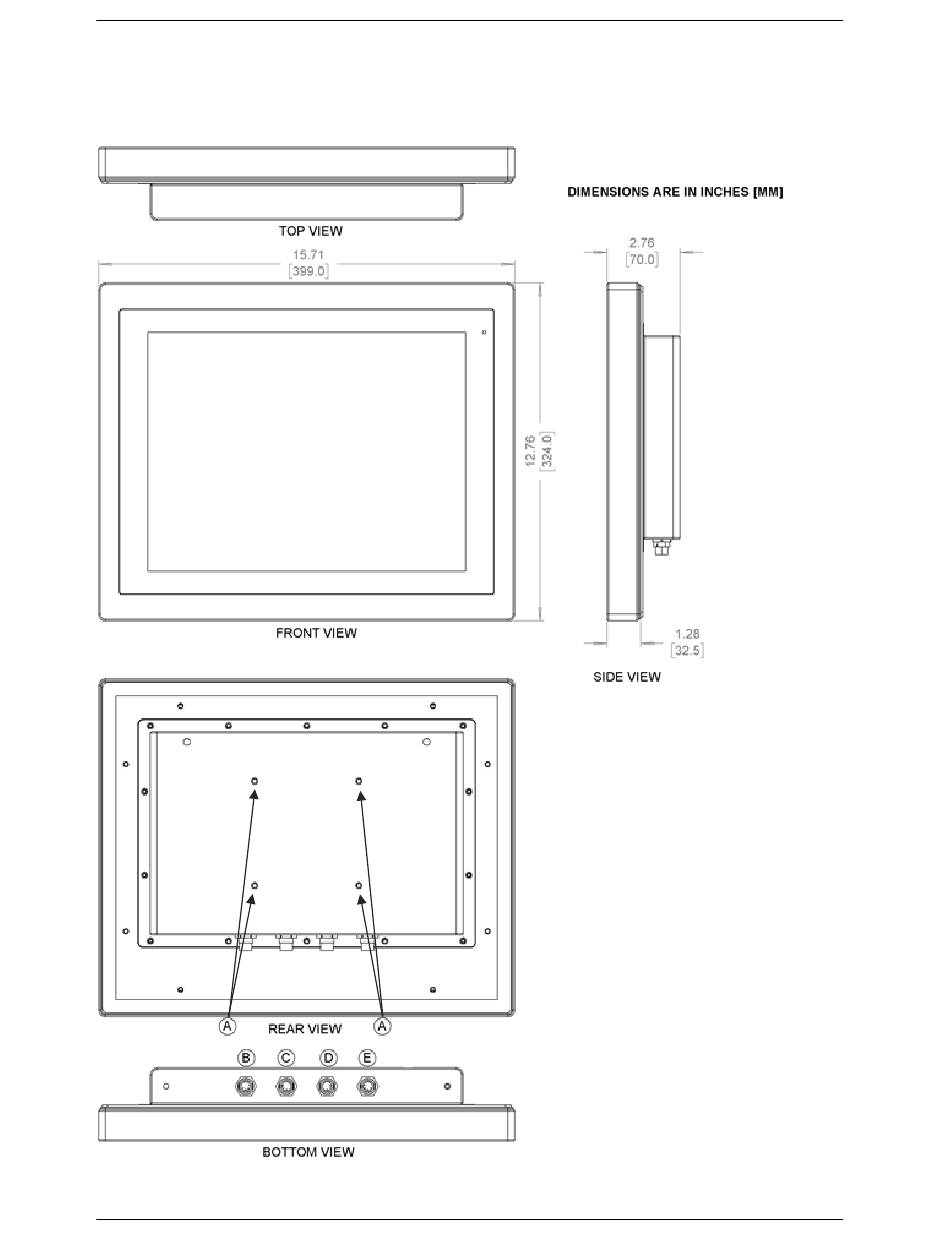

DIMENSIONS: AEx-115PH
Operations Manual: AEx Series
A VESA 100 x 100 mm Screw Holes
B M12 USB 2.0 Touch Connector
C M12 VGA Connector
D M12 External On-Screen Display
Controller
E M12 VDC Power Connector
7
7
