Display and icons

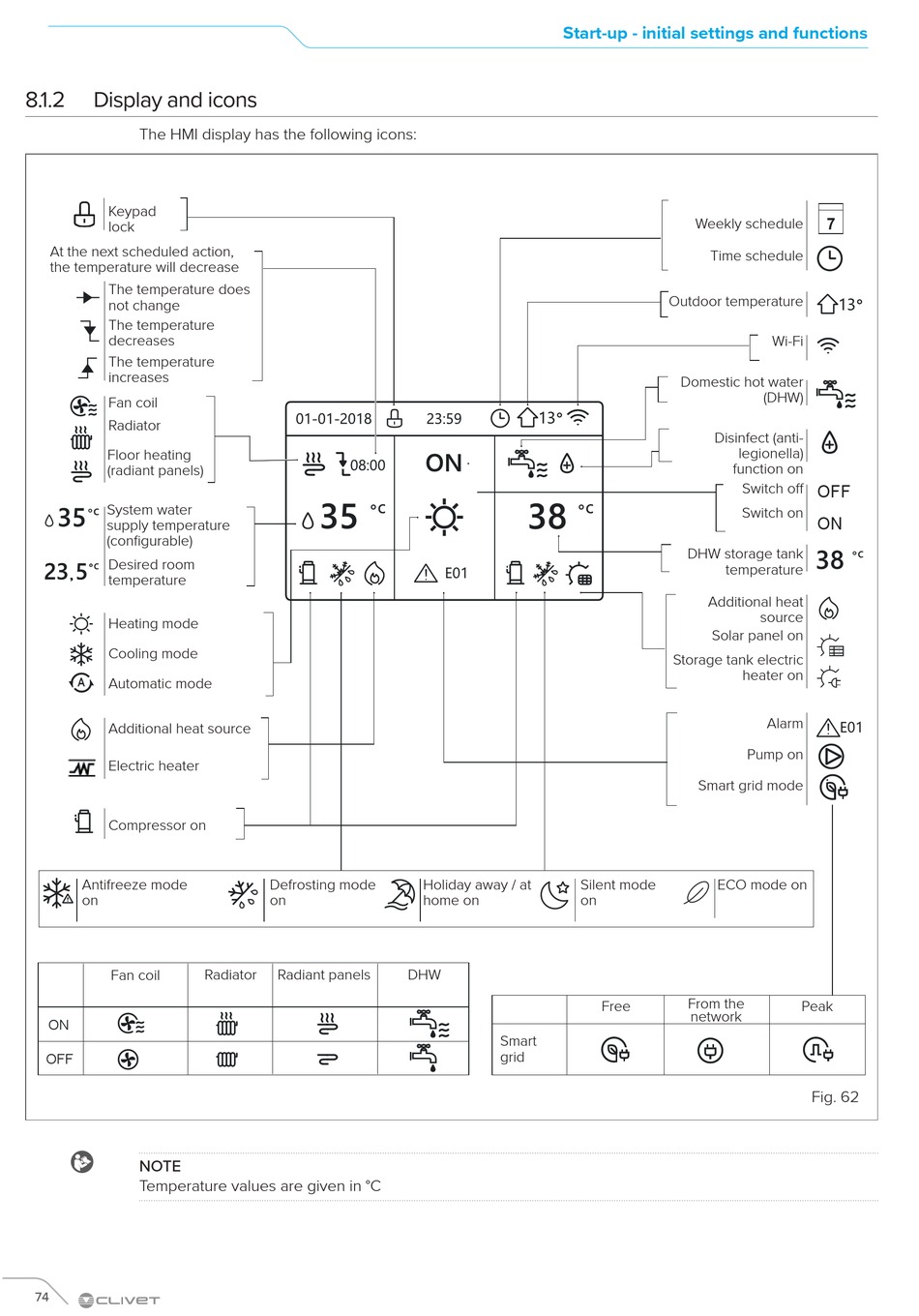

The HMI display has the following icons:
Keypad
lock
At the next scheduled action,
the temperature will decrease
The temperature does
not change
The temperature
decreases
The temperature
increases
Fan coil
Radiator
Floor heating
(radiant panels)
System water
supply temperature
(configurable)
Desired room
temperature
Heating mode
Cooling mode
Automatic mode
Additional heat source
Electric heater
Compressor on
Antifreeze mode
on
Fan coil
ON
OFF
L
NOTE
Temperature values are given in °C
74
Defrosting mode
on
Radiator
Radiant panels
Start-up - initial settings and functions
Holiday away / at
Silent mode
home on
on
DHW
Smart
grid
Weekly schedule
Time schedule
Outdoor temperature
Wi-Fi
Domestic hot water
(DHW)
Disinfect (anti-
legionella)
function on
Switch off
Switch on
DHW storage tank
temperature
Additional heat
source
Solar panel on
Storage tank electric
heater on
Alarm
Pump on
Smart grid mode
ECO mode on
From the
Free
network
7
OFF
ON
Peak
Fig. 62
