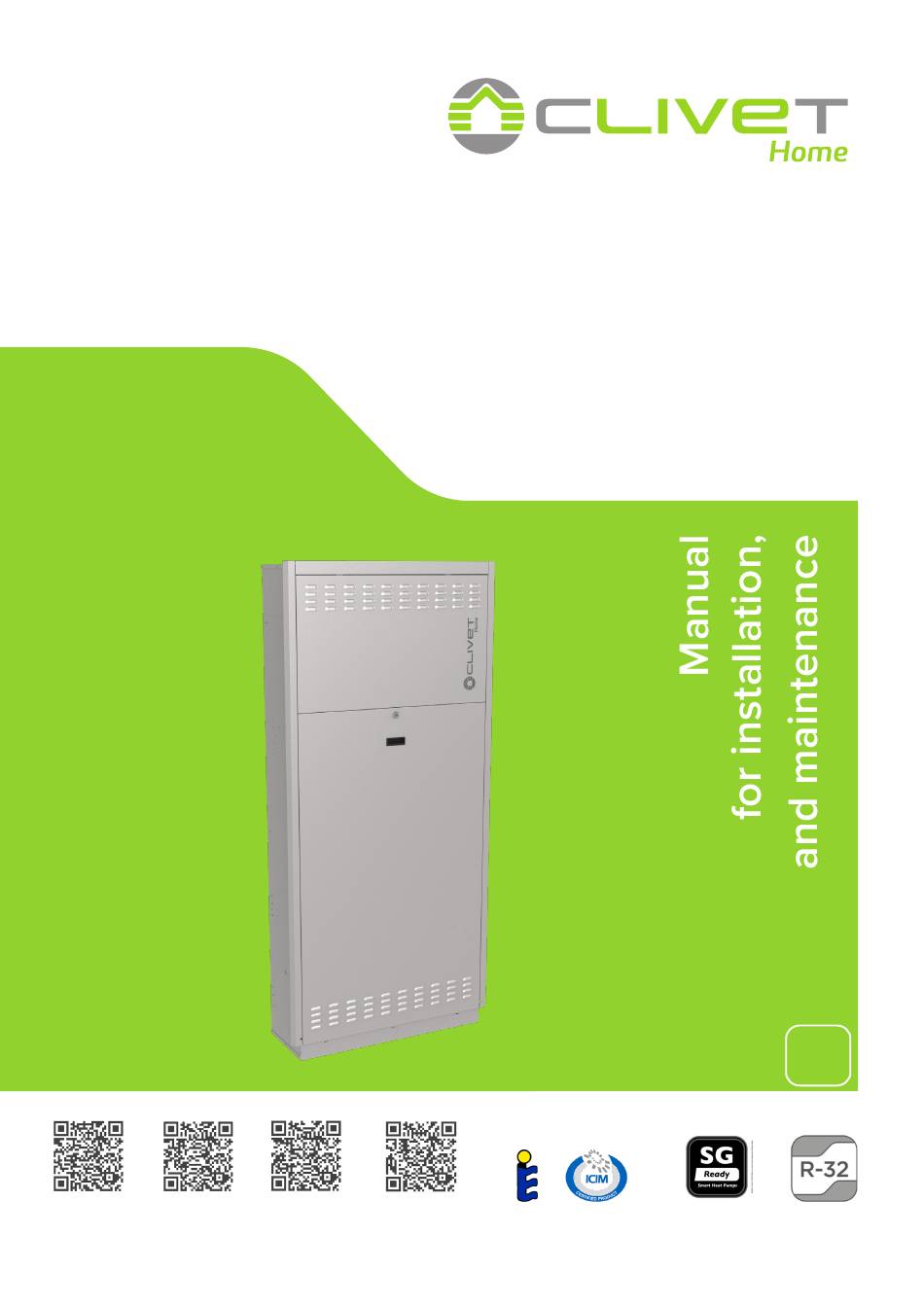

- Page 1 Indoor unit SPHERA EVO 2. 0 - Invisible SQKN-YEE 1 IC 2.1-5.1 M0GN00002-09 INST 05-2024 ROMANIAN SLOVENIAN HRVATSKI BULGARIAN Keep this manual together with the wiring diagram in an accessible place for the operator for future reference.
- Page 2 Dear Customer, We congratulate you on choosing these product. Clivet has been working for years to offer systems able to assure the maximum comfort for a long time with highly-reliable, efficient, high-quality and safe solutions. The target of the company is to offer advanced systems, that assure the best comfort and reduce energy consumption as well as the installation and maintenance costs for the entire life-cycle of the system.
-
Page 3: Table Of Contents
Summary Glossary........................6 General ........................7 About the manual .....................7 General safety warnings ..................8 About R-32 refrigerant ..................... 9 Warnings for the installer and the Technical Support Service ....10 General warnings .....................10 Safety checks and procedures ................10 Installation requirements ................13 Presentation of the product .................. - Page 4 7.15 DHW tank filling ....................32 7.16 Loading the plant .....................33 Refrigerant connections ..................35 Prerequisites .....................35 Electrical connections ....................37 Prerequisites .....................37 General diagram ....................38 Cable inlet ......................39 Connecting the power supply .................39 External component connections ..............41 Zone thermostat ....................46 Unit’s remote keypad installation ..............47 Dimensions ......................48 Wall-mounted installation ................48...
- Page 5 Decommissioning ..................... 66 13.1 Disconnection ....................66 Residual risks ......................67 14.1 General .......................67 14.2 Danger zone ......................67 14.3 Handling ......................67 14.4 Installation ......................67 14.5 Refrigerant ......................68 14.6 Hydraulic parts ....................68 Technical data ......................69 Boiler smoke exhaust pipes ..................77 16.1 Position of wall drains ..................77 16.2 Examples of installation ...................81 Boiler installation .....................
-
Page 6: Glossary
1. Glossary Acronyms or abbreviations are used in this manual to indicate components or parameters. The acronyms and their meanings are given in the table. Sign Description Domestic hot water Backup boiler User interface Backup electric heater Oxygen-Free-Nitrogen Unit pump Secondary circuit pump (or Zone 1 pump for double zone systems) Zone 2 pump (for double zone systems) DHW recirculation pump... -
Page 7: General
General 2. General About the manual Note This symbol indicates important information. • The manual ensures proper installation, use and mainte- 2.1.1.2 Editorial symbols nance of the unit • this manual is an integral and essential part of the pro- In the texts duct Purpose of the action: indicates the purpose of a sequence... -
Page 8: Document Organisation
Glossary 2.1.2 Recipients Any contractual and non-contractual liability for damage caused to persons, animals or property by installation, adjustment or maintenance errors or improper use is 2.1.2.1 User excluded. Inexperienced person who is capable of: • operating the product safely for people, for the product Any uses not expressly indicated in this manual are not permitted. -
Page 9: About R-32 Refrigerant
About R-32 refrigerant 3. About R-32 refrigerant This section contains specific safety information and warnin- gs on the use of R-32 refrigerant. For more comprehensive information, read the safety data sheet for the refrigerant used. The refrigerant used inside this unit is flammable. A refri- gerant leak that is exposed to an external ignition source can create fire risks. -
Page 10: Warnings For The Installer And The Technical Support Service
About R-32 refrigerant Warnings for the installer and the rant detector before and during the intervention so that the technician is aware of potentially flammable atmo- Technical Support Service spheres • check that the leak detector is suitable for use with flam- The use of flammable refrigerants entails specific safety warnings for certain operations during installation and mable refrigerants (it does not generate sparks and is... - Page 11 About R-32 refrigerant • if an electrical component is replaced, the new one must ment before removing the seal covers, etc. be suitable for the intended use and in accordance with • if it is absolutely necessary to have a power supply during the correct specifications the intervention, a permanent leak detection method •...
- Page 12 About R-32 refrigerant 3.3.13 Leak detection methods • the system must be vented to barometric pressure to allow the work to be performed Remember that: This operation is absolutely essential if brazing operations • electronic leak detectors can be used to detect flammable are to be carried out on the piping.
-
Page 13: Installation Requirements
About R-32 refrigerant • if possible, transfer the refrigerant to the unit using a • the refrigerant is returned to the supplier in the correct “pump-down” procedure recovery cylinders, accompanied by the relevant waste identification form • if it is not possible to create a vacuum, use a manifold that allows the refrigerant to be exhausted from various •... - Page 14 About R-32 refrigerant necessary to comply with the minimum surface requiremen- 1,243 ts indicated in the following procedure. 1,382 • calculate, based on piping length, the total refrigerant 1,520 charge (m 1,658 • calculate the area of room A (Aroom A) 1,796 •...
- Page 15 About R-32 refrigerant Table 3.2 2,24 16,214 Minimum opening area for natural ventilation: For units with 2,26 16,359 a capacity of 12 to 16 kW. 2,28 16,504 Minimum venting opening area [cm 16,649 [kg] [kg] 2,32 16,793 H = 600 mm 2,34 16,938 2,41...
- Page 16 About R-32 refrigerant...
-
Page 17: Presentation Of The Product
Presentation of the product 4. Presentation of the product Identification Description The serial number label is positioned on the unit and allows Uncased Refrigerant-split heat pump indoor unit with inte- to indentify all the unit features. grated DHW tank The matriculation plate shows the indications foreseen by Combinations the standards, in particular: Outdoor unit that can be combined:... -
Page 18: Main Components
Presentation of the product Main components Component Heating element 2kW Storage tank DHW expansion tank Air relief valve Flow switch DHW / System production valve Sludge Thermostatic valve DHW pressure relief valve System circulator System load Expansion tank The images are provided for illustrative purposes only. -
Page 19: Components Supplied With The Unit
Presentation of the product Components supplied with the unit A Position of components supplied with the unit The following components can be found in the package: Description Quantity Installation and maintenance manual Water filter Fittings to be welded TORX key Water tap Copper reduction 10-6 Insert... -
Page 20: Before Installation
Before installation 5. Before installation Prerequisites Storage Respect the indications on the outside of the pack. This section is intended exclusively for the Installer. In particolar: Refer to the Technical data chapter for details. • minimum ambient temperature –10 °C •... -
Page 21: Removal Of The Packaging
Before installation Handling When the load is lifted off the ground, stay clear of the area below and around it. The unit can be handled: Identify critical points during handling (disconnected routes, flights, steps, doors). • with a forklift truck or pallet truck. The following examples are guidelines;... - Page 22 Before installation ► cut the straps ► remove the packaging 1 Components supplied ► remove the fixing screws from the pallet ► remove the unit with suitable means 1 Traps Be careful not to damage the unit. Keep the packaging material out of children’s reach as it may be dangerous.
-
Page 23: Installation
Installation 6. Installation Prerequisites General diagram This section is intended exclusively for the Installer. Installation of the uncased additional practical cabi- net for system accessories. Refer to the Technical data chapter for details. See accessory sheet for installation. The electrical system and its components must be desi- gned by a qualified technician who must work according to the rules of good practice and national regulations. -
Page 24: Access To Internal Parts
Before installation Access to internal parts ► unscrew the fixing screws ► remove the protection panel The unit has removable access panels. To access the unit: ► unscrew the locking screw 1 Fixing screws ► remove the access panel To refit: ►... - Page 25 Before installation 6.3.1 Access to the electrical panel To access the components behind the electrical panel: ► unscrew the knobs To access the electrical panel: ► unscrew the fixing screws ► remove the access panel...
-
Page 26: Idrobox Module Installation
Before installation IDROBox module installation ► install the hydronic module Ensure that: • the DHW tank is installed first, see instructions for the separately supply accessory. Use hemp, Teflon, liquid sealants, etc. to make threaded connections watertight. Assembly sequence: ► remove the protection caps ►... - Page 27 Before installation ► fix the hydronic module with the screws ► install the thermostatic valve and DHW pressure relief valve ► install the pipe + gasket 1 Fixing screws ► install the fitting ► install the pipe with the tap + gasket ►...
- Page 28 Before installation ► install the DHW pipe + gaskets ► fix the pipes with the bracket 1 DHW pipe 1 Fixing brackets ► install the tap ► install the DHW supply and return + gaskets 1 DHW return 2 DHW supply 3 Tap...
-
Page 29: Water Connections
Water connections 7. Water connections General system diagram Indispensabile components system (not supplied) C.C. Components provided by Customer Refrigerant line Ø 3/8” (liquid) Condensation drain Ø 18mm Refrigerant line Ø 5/8” (gas) Check valve * Domestic hot water outlet ø 3/4” F.I. -
Page 30: Prerequisites
Water connections Prerequisites Water characteristics The quality of the water used must be in accordance with the This section is intended exclusively for the Installer. requirements in the following table, otherwise a treatment system must be provided. Refer to the Technical data chapter for details. Water component for corrosion limit on Copper Follow the safety instructions in the “About R-32 refrige- PH (25°C) -
Page 31: Piping Insulation
Water connections If necessary, install an additional filter sized according • Hydraulic circuit antifreeze protection to the type of pollutant to be removed. Position of connections Piping insulation Isolate the entire hydraulic circuit, including all components to avoid: • the formation of condensation during cooling •... -
Page 32: System Filter
Water connections Installation of the filter is mandatory. ► connect the pipe to the pressure relief valve and to the Tee fitting Operation without a filter can cause irreversible damage ► connect the system pressure relief valve pipe to the Tee to the unit. -
Page 33: Loading The Plant
Water connections 7.16 Loading the plant Once the hydraulic connections have been completed, the system can be charged. Position of the 3-way relief valve 1 DHW outlet tap 2 DHW drain tap 3 Water supply system tap 1 System taps 2 3-way valve 3 System vent valve To fill the water tank:... - Page 34 Water connections ► open the taps on the system (if present) ► open all of the system and terminal relief valves When water starts coming out of the air relief valves: ► close the valves ► continue filling up to the system pressure ►...
-
Page 35: Refrigerant Connections
Refrigerant connections 8. Refrigerant connections Prerequisites etc.), attention is paid to the possibility of installing refri- gerant traps, i.e. closed upstream and downstream areas where the refrigerant cannot expand freely This section is intended exclusively for the Installer. • in this situation, the expansion of the trapped gas Refer to the Technical data chapter for details. - Page 36 Refrigerant connections Connection For refrigerant connection operations, refer to the ma- nual for the combined outdoor unit. 8.2.1 Refrigerant fittings 1 Liquid line 2 Gas line Refrigerant piping size Size 2.1-5.1 Liquid fitting 3/8” * Gas fitting 5/8” * Reduction 10-6 required for size 2.1-3.1 outdoor units, supplied Tightening torque Tightening torque...
-
Page 37: Electrical Connections
Electrical connections 9. Electrical connections Prerequisites The current required for each external load must be less than 0.2 A. If the current required for a single load is gre- ater than 0.2 A, insert a contactor for control. This section is intended exclusively for the Installer. Install an earth leakage breaker (30 mA). -
Page 38: General Diagram
Refrigerant connections General diagram Max 50m Probes Pumps Valves Resistance Backup heater Boiler Bus connection Connections to be provided by customer... -
Page 39: Cable Inlet
Refrigerant connections Cable inlet Connecting the power supply To access the panel, see the “Access to internal parts” Ensure that: section. • no cables of different cross-sections are connected to Before removing the protection panel from the electrical the same power supply terminal block (loosening of the panel, disconnect the power supply to the indoor and power supply wires could cause overheating) outdoor units and to all the other electrically powered... -
Page 40: Tightening Torques
Refrigerant connections Units with IBH Unit Maximum overcurrent 25 A 16 A protection (MOP) 18 A 14 A Cable cross-section Tightening torques Tightening torque (N•m) M4 (power terminal, electric from 1.2 to 1.4 control board terminal) M4 (earthed) from 1.2 to 1.4 For the sizing values of the external protections, refer to the rated electrical data (bulletin, labels). -
Page 41: External Component Connections
Refrigerant connections External component connections Ref. Terminal block CN11 Solar input Dry contact Room thermostat Dry contact (220V) 1OFF Dry contact DHW 3-way valve 2OFF Dry contact 2-way zone valve pump P_c (zone2) Dry contact Pump P_o (zone1) Dry contact Solar pump Dry contact DHW recirculation pump... - Page 42 Refrigerant connections Ref. Terminal block CN11 Dry contact Zone 2 3-way mixing valve Ref. Terminal block CN7 Unit in operation signal Dry contact DFT2 Defrosting status or alarm status Dry contact DFT1 Antifreeze heater for piping Dry contact AHS1 Additional boiler Dry contact AHS2 Ref.
- Page 43 Refrigerant connections External electrical components KM..., Fuses, etc. are to be 9.5.3 Double zone mixed system provided by the customer. 9.5.1 Bus connection CN11 CN11 CN11 thermostat thermostat CN11 CN15 9.5.4 DHW recirculation pump Cable type 2-core shielded cable 0.75 - 1.25 mm (AWG18-AWG16) 9.5.2 1-zone system CN11...
- Page 44 Refrigerant connections 9.5.5 Solar pump 9.5.7 Integration heating elements Tsolar CN11 CN18 Tsolar S1 = panel probe 1 2 3 1 2 3 S2 = water tank probe 9.5.6 Antifreeze heater for piping Integrated on the unit. 9.5.8 Defrosting status or alarm status DFT1 DFT2 Fuse...
- Page 45 Refrigerant connections 9.5.9 Backup heater (FE boiler) BOILER 230 ~ 50HZ T1 = Outlet water temperature probe AHS1 AHS2 Outdoor temperature probe * (supplied with the boiler) Boiler No Boiler YES Boiler YES ON Dip ON Dip ON Dip DHW and system System integration / integration / repla- replacement only...
-
Page 46: Zone Thermostat
Refrigerant connections Zone thermostat CMethod B Double zone system with two zone thermostats managing The zone thermostat (to be supplied separately: use the ON/OFF, user interface managing the unit's mode change. Manufacturer's accessory or equivalent) can be connected in three different ways. The choice of which one to use The indoor unit is connected with two room temperature depends on the type of application. -
Page 47: Unit's Remote Keypad Installation
Refrigerant connections Unit’s remote keypad installation 9.7.1 Prerequisites Do not install: Near to heat sources. In points exposed to direct solar radiation. In a position exposed to air coming through openings or diffusers. Behind curtains or furniture. Next to doors and windows to the outside. 1 Flat screwdriver On walls crossed by chimneys or heating pipes. -
Page 48: Dimensions
Refrigerant connections Dimensions 20mm 120mm 46mm 60mm Wall-mounted installation 1 Lower part opening for cable outlet 1 Cable outlet 1 Wall hole for cable passage 1 Fix using two M4 x 20 screws Diameter: Ø 8 - Ø 10... -
Page 49: Installation In An Uncased Box
Refrigerant connections 9.10 Installation in an uncased box 1 Back cover 1 Fix using two M4 x 25 screws 2 Signal cables 60mm 1 Cable passage hole 1 Mastic 2 Electrical box 2 Siphon Do not crush the communication wire during installation. Prevent water from entering the wired controller, use siphons and mastic to seal the wire connectors during installation. -
Page 50: Electrical Connections
Refrigerant connections 9.11 Electrical connections The unit control keypad acts as a room thermostat. Use a shielded wire and connect to earth. This appliance supports the MODBUS RTU communication protocol. Check that: • all components are present • the shielded cable is firmly connected to earth, otherwise transmission problems will occur •... -
Page 51: Smart Grid - Photovoltaic Management
Refrigerant connections 9.12 SMART GRID - Photovoltaic management The smart grid system allows the excess electricity produced by the photovoltaic system or the electricity distribution network to be used to accumulate domestic hot water at lower or no cost. The function can be used with enabled electricity distribution networks. CN33 SMART GRID SMART GRID... -
Page 52: Control4 Ngr
Refrigerant connections 9.13 Control4 NRG Option For details, see Control4 NRG instruction manual. Unità Tastiera Settings FOR SERVICEMAN > 17 HMI ADDRESS SET > 17.2 HMI ADDRESS FOR BMS = 2. Modbus connection Baud rate = 9600 Length = 8 Parity = none Stop bit = 1... -
Page 53: Starting Up The System
Starting up the system 10. Starting up the system This section is intended only for the Technical Support Service. The electrical and hydraulic connections and other works typical of the system are the responsibility of the Installer. Operate in compliance with safety regulations in force. Upon request, the service centres performing the start- Agree upon in advance the star-up data with the servi- ce centre. -
Page 54: Preliminary Checks
Starting up the system 10.1 Preliminary checks For details refer to the different manual sections. 10.1.1.1 Unit power supply: OFF Clearances: • check that distances are observed Refrigerant piping characteristics: • check that the refrigerant piping section is correct • check that the fitting provided are used •... -
Page 55: System Configuration
Starting up the system Fuses, circuit breakers or protection devices: • check that the size and type comply with the instructions in this manual • ensure that no fuses or protective devices have been bypassed Automatic switch of integrative electric heater: •... -
Page 56: Start-Up
Start-up 11. Start-up temperature Preliminary warnings Do not start the compressor with carter oil not in tempe- For system configuration, of advanced features, refer to ratureTensioni the user interface manual. 11.2 Opening the “For serviceman” When the unit is turned on, nothing is displayed on the menu user interface. -
Page 57: Start-Up Report
Start-up • circulation pump • cooling mode • heating mode • DHW mode To verify: ► access the "For serviceman" menu ► Select “Test run” ► press OK ○ the confirmation page is displayed ► select YES ► press OK ►... -
Page 58: Maintenance
Maintenance 12. Maintenance 12.1 Prerequisites This section is intended only for the Technical Support Service. All operations must be carried out by personnel who meet the requirements of current regulations and are trained in the risks related to such operations. Operate in compliance with safety regulations in force. -
Page 59: Maintenance Checklist
Maintenance 12.2 Maintenance check list Intervention frequency (months) panel fixing outdoor unit fan fixing outdoor unit coil cleaning hydraulic system filling pressure fittings, caps and wells tightening visual leak check on solar panel fittings air in the piping flow switch / differential pressure switch operation drain dirt separator anode check power remote controls status... -
Page 60: Unit Booklet
Maintenance 12.3 Unit booklet 12.8 Water filter It’s advisable to create a unit booklet to take notes of the ► check and clean the water filter unit interventions. In this way it will be easier to adequately note the various In case of obstruction: interventions and aid any troubleshooting. -
Page 61: Magnetic Sludge
Maintenance 12.12 Magnetic sludge Magnetic filter separates the impurities (sand particles, rust ... etc) present in the system water. The impurities are collected in a settling chamber. Cleaning the filter can also be done with a working system. Clean the filter: •... -
Page 62: Sacrificial Anode
Maintenance ► check that the safety valve pipe is free from obstruction sealed ► check that there are no water leaks from the sleeve To carry out a wash: ► open the water inlet tap until water flows out of the ►... -
Page 63: Sacrificial Anode (Electric Heater)
Maintenance 12.16 Sacrificial anode (electric heater) Magnesium sacrificial anodes protect the water tank from corrosion. Anode check: ► disconnect the power supply ► close the water inlet tap located on the system ► open the hot water tap to drop the pressure inside the water tank ►... -
Page 64: Dhw Tank Limescale Deposit Discharge
Maintenance 12.17 DHW tank limescale deposit • replaced every 2 to 3 years discharge Check its wear, replace if Ø < 10 - 15 mm. ► disconnect the power supply Possible burns, the outlet water temperature can be ► close the water inlet tap located on the system very hot. -
Page 65: Fan
Maintenance 12.18 Fan External unit Check: ► that the fan and its protection grilles are fixed properly ► the fan bearings (anomalies are indicated by abnormal noise and vibrations) ► the terminal protection covers are closed and the cable holders are properly positioned Access to the fan ►... -
Page 66: Decommissioning
Decommissioning 13. Decommissioning 13.1 Disconnection of which are to be collected; • mechanical and electrical parts to be separated and Before performing any work, carefully read: SAFETY disposed of as authorised. WAR-NINGS FOR OPERATIONS ON UNITS CONTAINING When machine components to be replaced for maintenance R-32 purposes are removed or when the entire unit reaches the end of its life and needs to be removed from the installation,... -
Page 67: Residual Risks
Residual risks 14. Residual risks 14.1 General 14.4.1 General risks In this section the most common situations are indicated,as Smell of burning, smoke or other signals of serious these cannot be controlled by the manufacturer and could anomalies may indicate a situation which could cause be a source of risk situations for people or things. -
Page 68: Moving Parts
Residual risks When the metallic mass of the unit is under voltage and is Defects in tubing, the attachments or the removal parts not correctly connected to the earthing system it may be may cause a leak or water projection with the consequent as source of electric shock and electrocution. -
Page 69: Technical Data
Technical data 15. Technical data SIZE WATER TANK CAPACITY 150L 150L 150L 150L Heating Air 7°C - Water 35°C Nominal heating capacity / max 4,32 / 6,26 6,18 / 7,41 8,30 / 9,11 10,3 /10,09 Total power input 0,80 1,19 1,56 2,01 5,42... - Page 70 Residual risks SIZE WATER TANK CAPACITY 150L 150L 150L 150L Average climatic conditions - Heat pump for Average temperature application Nominal power SCOP 3.32 3.54 3.72 3.73 Generator energy class ηs System energy class ηs Average climatic conditions - Heat pump for Low temperature application Nominal power SCOP 5,13...
- Page 71 Residual risks Construction characteristics - Indoor unit SIZE System characteristics Maximum system circuit pressure System expansion tank Expansion tank pre-charge System water connections inch DHW Characteristics Type of Tank Acciaio INOX AISI 316 L Domestic hot water Tank Volume Internal coil exchange surface Water tank leakage W/K ( kWh/24h) 1.69 (1.82)
-
Page 72: Standard Mode
Residual risks Outdoor unit sound levels Standard mode Sound power level Sound Sound power pressure level level SIZES Octave band (Hz) 1000 2000 4000 8000 dB(A) dB(A) Sound levels refer to a unit at full load, under nominal test conditions. Data referring to the following conditions: user side exchanger water inlet/outlet 47/55°C source side exchanger air inlet 7°C. -
Page 73: Operating Range
Residual risks Operating range Cooling Twu [°C] = Temperature of the outlet water from the exchanger Tae [°C] = External exchanger inlet air temperature Normal operating range Heating Twu [°C] = Temperature of the outlet water from the exchanger Tae [°C] = External exchanger inlet air temperature 1. - Page 74 Residual risks Dimensional Uncased 71 57 95 18 18 93 1036 Description Line fittings (liquid) 3/8” Line fittings (gas) 5/8” Domestic hot water outlet M 3/4” Water supply system inlet M 3/4” Supply to system M 1” Shipping weight Operation weight Unit Return from system M 1”...
-
Page 75: External Unit
Residual risks External unit Sizes 2.1-3.1 Compressor compartment Electrical panel Power input Condensate drain Gas connections (5/8") Gas connections (1/4") Functional spaces Electric fan SIZE W1 Point of Support 23,9 23,9 W2 Point of Support 13,8 13,8 W3 Point of Support 12,9 12,9 W4 Point of Support... - Page 76 Residual risks External unit Sizes 4.1-5.1 1104 Compressor compartment Electrical panel Power input Condensate drain Gas connections (3/8") Gas connections (5/8") Functional spaces Electric fan SIZE W1 Point of Support W2 Point of Support 17,8 17,8 W3 Point of Support 18,4 18,4 W4 Point of Support...
-
Page 77: Boiler Smoke Exhaust Pipes
Boiler smoke exhaust pipes 16. Boiler smoke exhaust pipes lified installer in compliance with the national and local Provided by the customer technical regulations and standards. This section is intended exclusively for the Installer. The professional is responsible for identifying the appli- cable provisions, evaluating case by case the compatibility For more details see the Boiler manual. - Page 78 Boiler smoke exhaust pipes Right outlet CCOAX - Horizontal coaxial bend Ø 60/100, 360° adju- stable Accessory supplied separately Possible coaxial pipe outlets A/S = air intake / smoke exhaust Top outlet KSDFX - Smoke exhaust and intake fittings, 80 mm dia- meter Accessory supplied separately Rear outlet...
- Page 79 Boiler smoke exhaust pipes Coaxial drain length Split drain length Allows smoke exhaust and air intake through the outside The two-pipe system allows smoke exhaust through the flue wall. and air intake directly from the outside. KSDFX - Smoke exhaust and intake fittings, 80 mm diameter (accessory supplied separately) KSDFX Max 7m...
- Page 80 Boiler smoke exhaust pipes Discharge from the roof Coaxial drain Ø 60/100 (horizontal) ≥ 500 In areas with abundant snowfalls Bend Maximum length reduction - 1m 90° - 0,5m 45° Split drain Ø 80/80 (horizontal) Bend Maximum length reduction - 1,5m 90°...
-
Page 81: Examples Of Installation
Boiler smoke exhaust pipes 16.2 Examples of installation Allows condensation to return Intake Prevent rain input. Avoid the stagnation of condensation Coaxial pipe Smoke rising, condensation return. Do not let condensation drip * Ribbing to stop the rain Smoke exhaust and condensation collection Smoke exhaust and condensation collection are carried out correctly in accordance with national and local techni- cal regulations and standards. -
Page 82: Boiler Installation
Boiler installation 17. Boiler installation Installation sequence ► position the boiler support ► remove the pre-cut panel 1 Boiler support 1 Pre-cut panel When removing the pre-cut panel, do not damage the ► fix the boiler support with the screws internal components. - Page 83 Boiler installation ► install the system supply flexible hose + gasket ► install the system return flexible hose + gasket ► install the DHW outlet flexible hose + gasket ► install the DHW inlet flexible hose + gasket ► install the gas pipe + gasket ►...
- Page 84 Boiler installation ► install the withdrawal pipe on the thermostatic valve + ► install the DHW inlet pipe on the mixing valve + gasket gasket 1 DHW mixing valve 2 Boiler DHW inlet pipe 1 DHW withdrawal pipe Unit complete with boiler ►...
-
Page 85: Drain Connection
Boiler installation Drain connection ► fix the boiler condensation drain with a clamp ► fix the pressure relief valve drain with a clamp ► fill the siphon (see Boiler manual) Boiler siphon 1 Boiler condensation drain pipe 2 Pressure relief valve drain pipe 3 Discharge/drainage collection The boiler condensation drainage must be carried out correctly in accordance with current regulations and/or national/local provisions on waste water drainage. -
Page 86: Gas Line Connection
Gas line connection 18. Gas line connection The gas connection must be carried out by a qualified Gas pipe installation: installer in compliance with national regulations. ► push the gas pipe through the hole in the side of the casing Check that the gas supply line complies with current stan- ►... -
Page 87: Energy Labels
Energy labels 19. Energy labels Modello info prodotto /Product info template Information requirements for heat pump space heaters and heat pump combination heaters. Informazioni obbligatorie per gli apparecchi a pompa di calore per il riscaldamento d’ambiente e gli apparecchi di riscaldamento misti a pompa di calore Model(s): / Modelli: Air-to-water heat pump: / Pompa di calore aria/acqua: Water-to-water heat pump: / Pompa di calore acqua/acqua:... - Page 88 Contact details: / CLIVET SPA - VIA CAMP LONC, 25 - Z.I. VILLAPAIERA - 32032 FELTRE (BL) - ITALY Recapiti: (*) For heat pump space heaters and heat pump combination heaters, the rated heat output Prated is equal to the design load for heating Pdesignh, and the rated heat output of a supplementary heater Psup is equal to the supplementary capacity for heating sup(Tj).
- Page 89 Modello scheda prodotto / Product card model Product fiche: combination heaters Scheda prodotto: apparecchi di riscaldamento misti SERIES / Serie Model / Modello Size / Grandezza Medium-temperature application / °C Applicazione a media temperatura Low-temperature application / Applicazione a bassa temperatura °C DHW profile / Profilo ACS Medium-temperature class / Classe a media temperatura...
- Page 90 Product fiche: temperature control / Scheda prodotto: dispositivi di controllo della temperatura SERIES / Serie Model / Modello Size / Grandezza Device class ɳ s Product fiche: packages of combination heater, temperature control and solar device / Scheda prodotto: insiemi di apparecchi di riscaldamento misti, dispositivi di controllo della temperature e dispositivi solari Control class T / Classe controllo T ɳ...
- Page 91 Media temperatura / medium-temperature Description Symbol SQKN-YEE 1 IC SQKN-YEE 1 IC SQKN-YEE 1 IC SQKN-YEE 1 IC Model(s): / Modelli: MiSAN-YEE 1 S 2.1 MiSAN-YEE 1 S 3.1 MiSAN-YEE 1 S 4.1 MiSAN-YEE 1 S 5.1 Air-to-water heat pump: / Pompa di calore aria/acqua: Water-to-water heat pump: / Pompa di calore acqua/acqua: Brine-to-water heat pump: / Pompa di calore salamoia/acqua: Low-temperature heat pump: / Pompa di calore a bassa temperatura:...
- Page 92 Description Symbol SPHERA EVO 2.0 SPHERA EVO 2.0 SPHERA EVO 2.0 SPHERA EVO 2.0 SERIES / Serie SQKN-YEE 1 IC SQKN-YEE 1 IC SQKN-YEE 1 IC SQKN-YEE 1 IC Model / Modello MiSAN-YEE 1 S MiSAN-YEE 1 S MiSAN-YEE 1 S MiSAN-YEE 1 S Size / Grandezza Medium-temperature application /...
- Page 93 Bassa temperatura / low-temperature Description Symbol SQKN-YEE 1 IC SQKN-YEE 1 IC SQKN-YEE 1 IC SQKN-YEE 1 IC Model(s): / Modelli: MiSAN-YEE 1 S 2.1 MiSAN-YEE 1 S 3.1 MiSAN-YEE 1 S 4.1 MiSAN-YEE 1 S 5.1 Air-to-water heat pump: / Pompa di calore aria/acqua: Water-to-water heat pump: / Pompa di calore acqua/acqua: Brine-to-water heat pump: / Pompa di calore salamoia/acqua: Low-temperature heat pump: / Pompa di calore a bassa temperatura:...
- Page 94 Description Symbol SPHERA EVO 2.0 SPHERA EVO 2.0 SPHERA EVO 2.0 SPHERA EVO 2.0 SERIES / Serie SQKN-YEE 1 IC SQKN-YEE 1 IC SQKN-YEE 1 IC SQKN-YEE 1 IC Model / Modello MiSAN-YEE 1 S MiSAN-YEE 1 S MiSAN-YEE 1 S MiSAN-YEE 1 S Size / Grandezza Medium-temperature application /...
- Page 95 Dati tecnici per soluzione ibrida, sostituiscono i dati delle tabelle precedenti / Technical data for hybrid solution, replace the data in the previous tables 24,2 24,4 34,4 Description Symbol Equipped with a supplementary heater: / Con riscaldatore supplementare: Rated heat output (*) / Potenza termica nominale (*) Prated Seasonal space heating energy efficiency /...
- Page 104 FOR OVER 30 YEARS, WE HAVE BEEN OFFERING SOLUTIONS TO ENSURE SUSTAINABLE COMFORT AND THE WELL-BEING OF PEOPLE AND THE ENVIRONMENT sales and assistance Info & Contacts: www.clivet.com...
