A terminal program is required to make the software
connection to the Managed Switch.
1. Run terminal program on the OS.
2. When the following screen appears, make sure that
the COM port should be configured as:
♦ Baud: 115200
♦ Data bits: 8
♦ Parity: None
♦ Stop bits: 1
♦ Flow control: None

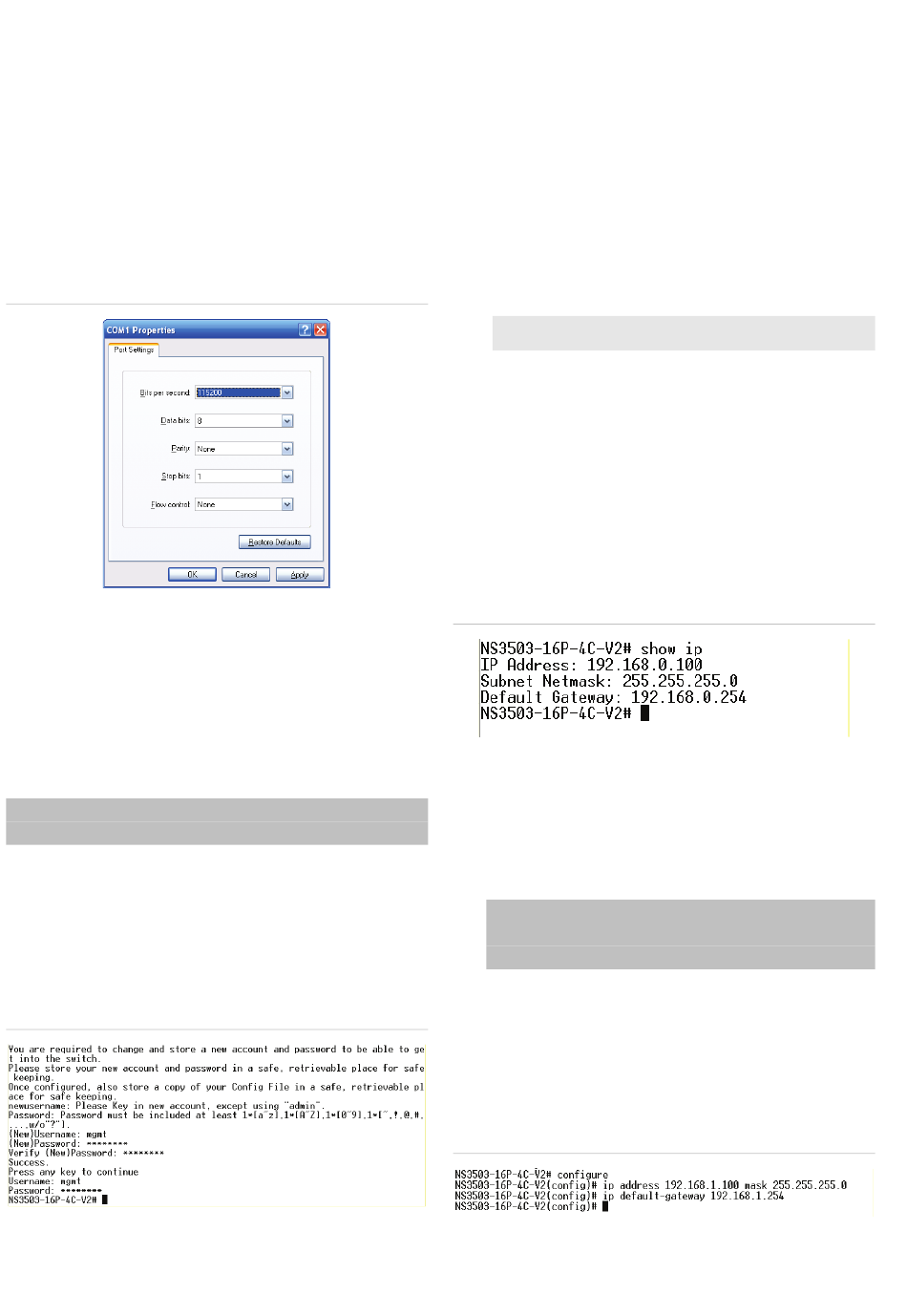

Figure 2: COM Port Configuration
Logon to the Console
Once the terminal is connected to the device, power on
the Managed Switch and the terminal will display
"running testing procedures". Then, the following
message asks to log-in user name and password. The
factory default user name and password are shown as
follows, and the login screen is displayed.
Username: admin
Password: admin
If the user logs on to the console with default account,
it's forced to change user name and password. After
changing user name and password successfully, the
user has to re-log on with new user name and password
and the login screen in the figure below appears.
Figure 3: Managed Switch Console Login Screen
The user can now enter commands to manage the
Managed Switch. For a detailed description of the
2
commands, please refer to the following sections.
Note:
1. For security reason, please change and memorize
the new password after this first setup.
2. Only accept command in lowercase letter under
console interface.
Configuring IP Address via the
Console
The Managed Switch is shipped with default IP address
as follows:
IP Address: 192.168.0.100
Subnet Mask: 255.255.255.0
To check the current IP address or modify a new IP
address for the Switch, please use the procedures as
follows:
Show the current IP address
1. At the "NS3503-16P-4C-V2#" prompt, enter "show
ip.
2. The screen displays the current IP Address, Subnet
Mask and Gateway as shown below.
Figure 4: IP Information Screen
Configuring IP address thru commands
3. At the "NS3503-16P-V2#" prompt, enter "configure".
4. At the "NS3503-16P-V2(config)#" prompt, enter the
following command and press <Enter> as shown in
in the figure below.
NS3503-16P-V2(config)# ip address 192.168.1.100 mask
255.255.255.0
NS3503-16P-V2(config)# ip default-gateway 192.168.1.254
The previous command would apply the following
settings for the Switch.
IP Address: 192.168.1.100
Subnet Mask: 255.255.255.0
Gateway: 192.168.1.254
Figure 5: IP Address Screen
