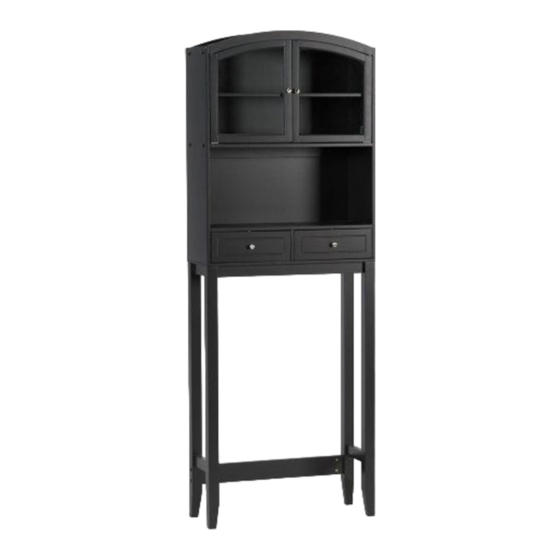

Arch-top spacesaver
Hide thumbs
1
2
3
4
5
6
7

Advertisement

Quick Links

Download this manual
SOUTHERN ENTERPRISES INC.
RELAX...If you can follow a few easy, step-by-step directions
in order .YOU CAN ASSEMBLE THIS ITEM.
PLEASE FIND HARDWARE IN RED POLYBAG BEFORE DISCARDING PACKING MATERIAL.
NOTE: PLEASE DO NOT OVERTIGHTEN CAM LOCKS!
(1) MEDIUM MACHINE SCREWS
(Ø1/4"X1")
(2) LARGE MACHINE SCREWS
(Ø1/4"X1-1/2")
(3) X-LARGE MACHINE SCREWS
(Ø1/4"X2-1/4")
(4) T-BOLTS
(5) PLASTIC PLUGS
(6) LARGE WOOD DOWELS
(7) SMALL WOOD DOWELS
HARDWARE LIST
4PCS
8PCS
4PCS
12PCS
12PCS
8PCS
Ø8x30mm
12PCS
Ø6x20mm
BE6621 – WHITE
STYLE NO.:
BE8621 - BLACK
ARCH-TOP SPACESAVER
(11) METAL HINGES
(12) KNOBS
(13) SMALL MACHINE SCREWS
(Ø5/32"X5/8")
(14) SHELF SUPPORTS
(15) PLASTIC ANCHORS
(16) LARGE FLAT HEAD WOOD
SCREWS (Ø4X25mm)
(17) SMALL FLAT HEAD WOOD
SCREWS (Ø3X10mm)
2PCS
4PCS
4PCS
4PCS
2PCS
4PCS
4PCS

Advertisement

loading
Need help?

Need help?

Do you have a question about the BE6621 and is the answer not in the manual?

Questions and answers

Related Manuals for SEI BE6621

Summary of Contents for SEI BE6621

  • Page 1 BE6621 – WHITE STYLE NO.: BE8621 - BLACK ARCH-TOP SPACESAVER SOUTHERN ENTERPRISES INC. RELAX...If you can follow a few easy, step-by-step directions in order .YOU CAN ASSEMBLE THIS ITEM. PLEASE FIND HARDWARE IN RED POLYBAG BEFORE DISCARDING PACKING MATERIAL. NOTE: PLEASE DO NOT OVERTIGHTEN CAM LOCKS!

  • Page 2: Parts List

    (8) MEDIUM FLAT HEAD WOOD 16PCS (18) RIGHT METAL HINGES SCREWS (Ø3X15mm) (9) X-LARGE FLAT HEAD WOOD 2PCS (19) LEFT METAL HINGES SCREWS (Ø4X38mm) (10) PAN HEAD WOOD SCREWS 26PCS (20) METAL STOPPER 2PCS (Ø2.6X10mm) PARTS LIST (A) TOP PANEL (L) DIVIDER (B) UPPER LEFT SIDE PANEL (M) LOWER RIGHT SIDE FRAME...

  • Page 3: Assembly Instruction

    (F) DRAWER FRONT 2PCS (Q) MIDDLE BACK PANEL (G) DRAWER LEFT SIDE 2PCS (R) LOWER BACK PANEL (H) DRAWER BACK 2PCS (S) RIGHT DOOR (I) DRAWER BOTTOM 2PCS (T) LEFT DOOR (J) DRAWER RIGHT SIDE 2PCS (U) ADJUSTABLE SHELF (K) BOTTOM PANEL ASSEMBLY INSTRUCTION SELECT A SMOOTH, SOFT SURFACE TO PREVENT SCRATCHING FINISH.
  • Page 4 INSERT MEDIUM FLAT HEAD WOOD SCREWS (Ø3X15mm) (8) THROUGH PREDRILLED HOLES ON OUTSIDE OF DRAWER RIGHT PANEL (J) AND TIGHTEN INTO PREDRILLED HOLES ON ENDS OF DRAWER FRONT PANEL (F) AND DRAWER BACK PANEL (H). SLIDE DRAWER BOTTOM PANEL (I) INTO GROOVES ON DRAWER FRONT PANEL (F) AND DRAWER BACK PANEL (H) AND ALIGN WITH GROOVE ON DRAWER RIGHT PANEL (J).
  • Page 5 FIGURE 3 FIGURE 4 ( 1 0 ) ( P ) ( Q ) ( R ) FIGURE 5...
  • Page 6 INSERT METAL HINGES (11) INTO PREDRILLED HOLES ON TOP EDGES OF LEFT AND RIGHT DOORS (S, T) AND FIT INTO CORRESPONDING HOLES ON UNDERSIDE OF TOP PANEL (A). INSERT LEFT AND RIGHT METAL HINGES (18, 19) INTO PREDRILLED HOLES ON UPSIDE OF UPPER FIXED SHELF (D).

  • Page 7: Parts Replacement Form

    Parts will not be available for items arriving fully assembled. NOTE: PLEASE DO NOT OVERTIGHTEN CAM LOCKS! "We will ship parts if available" "This is not a warranty" PARTS REPLACEMENT FORM STYLE NO : BE6621/BE8621 Customer Name PARTS PART QUANTITY...
