SOUTHERN ENTERPRISES INC.
RELAX...If you can follow a few easy, step-by-step directions
in order .YOU CAN ASSEMBLE THIS ITEM.
PLEASE FIND HARDWARE IN RED POLYBAG BEFORE DISCARDING PACKING MATERIAL.
(1) METAL HANDLE
(2) METAL PLATE
(3) MACHINE SCREW
(4) CAM-BOLT
(5) CAM-LOCK
(6) SHORT WOOD DOWEL(Ø8X30mm)
(7) LONG WOOD DOWEL(Ø8X45mm)
(8) METAL HINGE

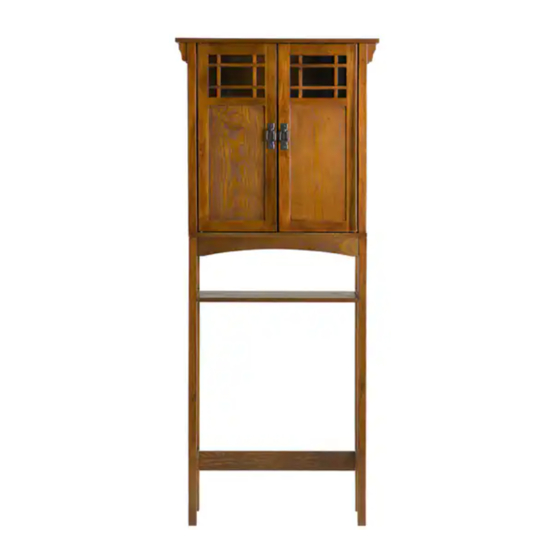

MISSION SPACESAVER
HARDWARE LIST
2PCS
(9) MAGNET
2PCS
(10) SMALL FLAT HEAD WOOD SCREW
4PCS
(11) PLASTIC ANCHOR
14PCS
(12) LARGE FLAT HEAD WOOD SCREW
14PCS
(13) MIDDLE FLAT HEAD WOOD SCREW
24PCS
(14) PAN HEAD WOOD SCREW
4PCS
(15) SHELF SUPPORT
4PCS
(16) COVER
BE7591
STYLE NO:
(Ø3X12mm)
(Ø4X25mm)
(Ø8X22mm)
1PC
10PCS
2PCS
2PCS
8PCS
26PCS
4PCS
14PCS
Advertisement
Table of Contents
Related Manuals for SEI MISSION SPACESAVER BE7591
Summary of Contents for SEI MISSION SPACESAVER BE7591
- Page 1 BE7591 STYLE NO: SOUTHERN ENTERPRISES INC. MISSION SPACESAVER RELAX...If you can follow a few easy, step-by-step directions in order .YOU CAN ASSEMBLE THIS ITEM. PLEASE FIND HARDWARE IN RED POLYBAG BEFORE DISCARDING PACKING MATERIAL. HARDWARE LIST (1) METAL HANDLE 2PCS (9) MAGNET (2) METAL PLATE 2PCS...
- Page 2 PARTS LIST (A) TOP PANEL (I) UPPER CROSS BRACE 2PCS (B) UPPER LEFT SIDE PANEL (J) LOWER FIXED SHELF (C) UPPER RIGHT SIDE PANEL (K) LOWER CROSS BRACE (D) BOTTOM PANEL (L) ADJUSTABLE SHELF (E) RIGHT DOOR (M) UPPER BACK PANEL (F) LEFT DOOR (N) MIDDLE BACK PANEL (G) LOWER LEFT SIDE FRAME...
- Page 3 ASSEMBLY INSTRUCTION SELECT A SMOOTH, SOFT SURFACE TO PREVENT SCRATCHING FINISH. YOU MAY NEED A PHILIP SCREWDRIVER. INSERT SMALL FLAT HEAD WOOD SCREWS (10) THROUGH METAL HINGES (8) AND TIGHTEN INTO PREDRILLED HOLES ON CORNERS OF BACK OF LEFT DOOR (F). INSERT MACHINE SCREWS (3) THROUGH PREDRILLED HOLES ON BACK OF LEFT DOOR (F) AND TIGHTEN INTO PREDRILLED HOLES ON METAL HANDLES AND METAL PLATES (1, 2).
- Page 4 INSERT METAL HINGES (8) EXTENDING FROM LEFT AND RIGHT DOORS (F, E) INTO PREDRILLED HOLES ON UNDERSIDE OF TOP PANEL (A), UPSIDE OF BOTTOM PANEL (D). INSERT MEDIUM FLAT HEAD WOOD SCREWS (13) THROUGH PREDRILLED HOLES ON BOTTOM PANEL (D) AND TIGHTEN INTO CORRESPONDING HOLES ON BOTTOM EDGES OF UPPER LEFT AND RIGHT SIDE PANELS (B,C).
- Page 5 INSERT CAM-BOLTS (4) AND SHORT WOOD DOWELS (6) INTO PREDRILLED HOLES ON INSIDE OF LOWER LEFT AND RIGHT SIDE FRAMES (G, H) AND FIT INTO CORRESPONDING HOLES ON ENDS OF UPPER CROSS BRACE (I), LOWER CROSS BRACE (K) AND LOWER FIXED SHELF (J). INSERT CAM-LOCKS (5) INTO BIG HOLES ON UPPER CROSS BRACES (I), LOWER CROSS BRACE (K) AND LOWER FIXED SHELF (J) WITH SLOT FOR SCREWDRIVER FACING OUTWARD.
- Page 6 FOR SAFETY AND STABILITY, PLACE THE UNIT AGAINST WALL, DRILL TOW 1/4” DIAMETER HOLES IN WALL, THE DISTANCE BETWEEN TWO HOLES SHOULD MATCH TO THE PREDRILLED HOLES ON UPPER BACK PANEL (M). FIT PLASTIC ANCHORS (11) INTO THE HOLES ON WALL .USE SCREWDRIVER TO SCREW LARGE FLAT HEAD WOOD SCREWS (12) THROUGH PREDRILLED HOLES ON UPPER BACK PANEL (M) INTO PLASTIC ANCHORS (11).
- Page 7 Please count, identify and compare parts and hardware list to be sure all parts are present. It may help to divide parts and label them to correspond with part list. Extra hardware may be included. If any items are missing, please contact our parts/service department at (800) 633-5096 or in Dallas (972) 869-0111/ 9am – 4pm Mon-Fri Central time.
