- Page 1 NGT Transceiver H F R A D I O C O M M U N I C A T I O N S G E T T I N G S T A R T E D G U I D E...
- Page 2 No part of this guide may be reproduced, transcribed, translated into any language or transmitted in any form whatsoever without the prior written consent of Codan Limited. © Copyright 2005, 2006, 2008 Codan Limited. Codan part number 15-04140-EN Issue 4, September 2008.
- Page 3 Cables ..........13 Mounting a fixed NGT SRx station ......13 Connecting a fixed NGT SRx station .
- Page 4 Etiquette for the use of HF radio ......65 NGT SRx Transceiver Getting Started Guide...
- Page 5 About this issue..........76 Index NGT SRx Transceiver Getting Started Guide...
- Page 6 Table of contents This page has been left blank intentionally. NGT SRx Transceiver Getting Started Guide...
- Page 7 CODAN Figure 1: Typical mobile NGT SRx station ....5 Figure 2: Typical fixed NGT SRx station....12 Figure 3: The handset.
- Page 8 List of figures This page has been left blank intentionally. NGT SRx Transceiver Getting Started Guide...
- Page 9 Standard hot keys ......20 Table 4: NGT SRx Transceiver specifications ....47 Table 5: Earth symbols .
- Page 10 List of tables This page has been left blank intentionally. viii NGT SRx Transceiver Getting Started Guide...
- Page 11 Overview of this guide This guide provides instructions on how to connect up your NGT SRx Transceiver, and how to perform basic setup and operating tasks. It assumes that you have limited knowledge of HF communication and of using an HF transceiver.
- Page 12 To access the CD: Place the CD in the CD drive of your computer. You can view and search the Reference Manual and ® ® Getting Started Guide using the Adobe Reader supplied on the CD. NGT SRx Transceiver Getting Started Guide...
- Page 13 Installation This section contains the following topics: Mobile stations for NGT SRx Transceivers (4) Fixed stations for NGT SRx Transceivers (11) NGT SRx Transceiver Getting Started Guide...

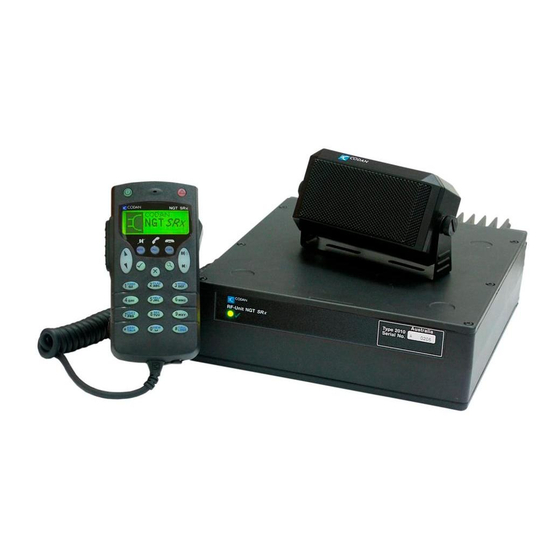

- Page 14 Installation Mobile stations for NGT SRx Transceivers A mobile NGT SRx station typically consists of: • a handset and cradle • a speaker • an RF unit and vehicle mounting cradle (includes DC power cable) • a 12 V DC power supply (battery) •...
- Page 15 Installation Figure 1: Typical mobile NGT SRx station 1 5 - W C O N N E C T 1 0 - W C O N N E C T 6 - W A C O N N E C T...
- Page 16 Installation Cables Table 1: Cables for a typical mobile NGT SRx station Cable Symbol Part number Handset and speaker connector cable 08-06022-001 Coaxial cable between RF unit and antenna 08-01503-006 Control cable between RF unit and antenna 08-05627-006 DC power supply cable 08-03255 a.
- Page 17 Installation Mounting a mobile NGT SRx station Most components of a mobile NGT SRx station are provided with their own mounting cradles. For general guidance on suitable locations for equipment and installing these stations see the reference material on the enclosed CD.
- Page 18 RF unit. Rotate the key clockwise, then push the key toward the base of the cradle to lock the RF unit into position. NGT SRx Transceiver Getting Started Guide...
- Page 19 Installation Connecting a mobile NGT SRx station To connect a mobile NGT SRx station: Connect the lead from the handset and speaker connector to the 10-way plug on the cable lead from the RF unit, then secure the locking ring tightly into position.
- Page 20 To connect the transceiver to the battery power supply: If you are using a 24 V battery supply, connect the battery to a 24 V to 12 V voltage regulator (Codan part number 15-00508). Connect the power supply cable (Codan part number 08-03255) to the plug at the end of the 12 V cable lead from the RF unit.
