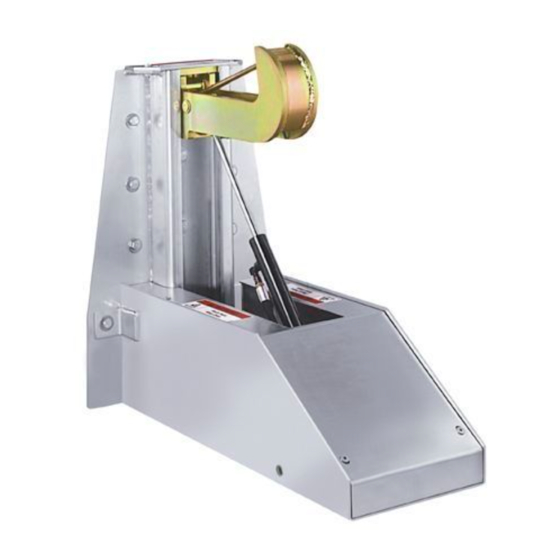

RITE-HITE Dok-Lok VBR-300 Installation Manual
Vehicle restraint
Hide thumbs
Also See for Dok-Lok VBR-300:
- Owner's manual (32 pages) ,
- Manual (36 pages) ,
- Owner's manual (32 pages)
Advertisement
Quick Links
This manual covers units built after serial numbers: VB3001000 and up
Model: VBR-300
Hydraulic Vehicle Restraint
Language: English
The English version of this manual shall prevail over any
error in, or conflicting interpretation of, any translations.
Model: VBR-300M
Manual Vehicle Restraint
VBR-300 Dok-Lok
VBR-300M Dok-Lok
VBR-300ALP Dok-Lok
Installation Manual
Model: VBR-300ALP
Manual Vehicle Restraint
with Automatic Light Package.
NOTICE TO USER . . . . . . . . . . . . . . . .2
SAFETY . . . . . . . . . . . . . . . . . . . . . . . .2
INSTALLATION . . . . . . . . . . . . . . . . . .3
WARRANTY. . . . . . . . . . . . . . . . . . . .12
Publication: AMEN00120 2017-09-19
®
®
®
Vehicle Restraint
Advertisement
Related Manuals for RITE-HITE Dok-Lok VBR-300
Summary of Contents for RITE-HITE Dok-Lok VBR-300
- Page 1 ® VBR-300 Dok-Lok ® VBR-300M Dok-Lok ® VBR-300ALP Dok-Lok Vehicle Restraint Installation Manual This manual covers units built after serial numbers: VB3001000 and up Model: VBR-300 Model: VBR-300M Model: VBR-300ALP Hydraulic Vehicle Restraint Manual Vehicle Restraint Manual Vehicle Restraint with Automatic Light Package. NOTICE TO USER .
-
Page 2: Notice To User
DANGER A Planned Maintenance Program (P.M.P.), customized to your specific operation is available and recommended. For a P.M.P., contact your local Rite-Hite representative or Indicates a hazardous situation which, if not Rite-Hite technical support at 414-355-2600. avoided, will result in death or serious injury. -
Page 3: Installation
(All Models) Inspect DOK-LOK Materials A DOK-LOK vehicle restraint may be installed on docks (All models) with or without levelers. Consult Rite-Hite for proper Open and inspect all materials. Immediately report application. any damage or material shortage. Study component assemblies and determine their proper locations. - Page 4 The VBR can be assembled with a 27” or 29” maximum in conjunction with welding to pit steel and a leveler height. Refer to the Rite-Hite Application information frame. Refer to Figure 5. provided with the VBR for correct height. Follow the steps below to assemble roller track to the base.
- Page 5 Rite-Hite ® VBR-300 • VBR-300M • VBR-300ALP Dok-Lok ® Installation Manual INSTALLATION Remove NOTICE Track Cover Before Welding 8 concrete anchors are provided with each VBR Front Pit Dok-Lok vehicle restraint. You must install an Across Top Curb Angle anchor in each roller track plate hole except those Of Track 1/4”...
- Page 6 See Figure 6. Straightness f. Due to actual conditions, total mounting height may be And Plumb different. Refer to Rite-Hite Application Guidelines for actual mounting height. See Figure 6. Dock Face g. Remove weld debris and grind welds as necessary.
- Page 7 Rite-Hite ® VBR-300 • VBR-300M • VBR-300ALP Dok-Lok ® Installation Manual INSTALLATION Special Application Installation Install Hydraulic Components (All Models) (VBR-300 Only) 1. Mount hydraulic power unit on dock wall as shown Remove Cover in Figure 2, page 4 using supplied mounting bracket Before Cutting (hardware supplied by others).
- Page 8 ® ® VBR-300 • VBR-300M • VBR-300ALP Dok-Lok Rite-Hite Installation Manual INSTALLATION Assemble Operating Bar and Install Bracket (VBR-300ALP & M Only) 1. Assemble operating bar as shown. See Figure 11 When working with electrical or electronic Mount operating bar bracket next to the control box controls, make sure that the power source has (hardware supplied by others).
- Page 9 LD49 PB PRESS LD52 LD51 J11-2 OVLD LOK LD50 INSLT ITC LD36 J11-1 When in doubt, call your Rite-Hite representative or J16-1 LD48 OSLT ITC LD46 J16-2 Rite-Hite at (800) 456-0600. CTRL PWR LD44 HORN LD15...
- Page 10 ® ® VBR-300 • VBR-300M • VBR-300ALP Dok-Lok Rite-Hite Installation Manual INSTALLATION Install Signs (All Models) There are 2 driver warning signs and 1 inside operator sign supplied with each Dok-Lok vehicle restraint. Because of the many ways signs can be mounted, hardware is not supplied.
- Page 11 Rite-Hite ® VBR-300 • VBR-300M • VBR-300ALP Dok-Lok ® Installation Manual INSTALLATION Verify Components and Assembly Make sure that all required components are present, assembled and installed per all figures in this section. Additionally, components should be assembled and installed per associated Applications, guidelines and sales order documentation.
-
Page 12: Warranty
Product claimed to be defective and shall, at Rite-Hite's option, either (x) grant Rite-Hite or its agent access to Owner's premises for the purpose of repairing or replacing the Product or (y) return of the Product to the Rite-Hite, F.O.B.
