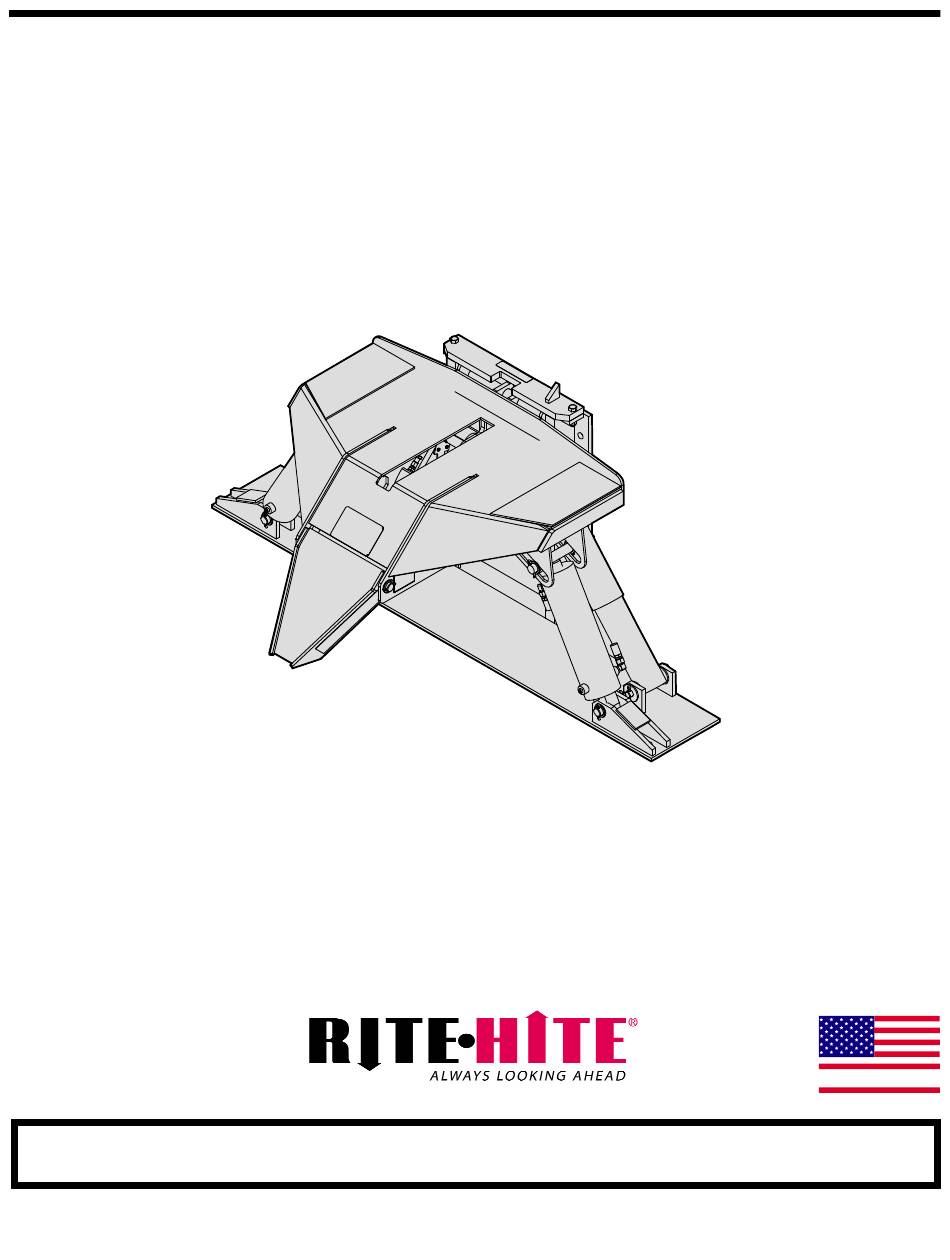

This Manual Covers Restraints Built After Serial Numbers:
08EE400001W and up
PRINTED IN U.S.A.
RITE-HITE
PRINT SHOP
STR-4200 Dok-Lok
Vehicle Restraint
Installation Manual
part of the SMOOTH TRANSITION DOK SYSTEM
®
TM
PUBLICATION NO. 1351
MADE IN U.S.A.
JULY 2014

Advertisement

loading
Need help?

Need help?

Do you have a question about the Dok-Lok STR-4200 and is the answer not in the manual?

Questions and answers

Related Manuals for RITE-HITE Dok-Lok STR-4200

Summary of Contents for RITE-HITE Dok-Lok STR-4200

  • Page 1 ® STR-4200 Dok-Lok Vehicle Restraint Installation Manual part of the SMOOTH TRANSITION DOK SYSTEM MADE IN U.S.A. This Manual Covers Restraints Built After Serial Numbers: 08EE400001W and up PRINTED IN U.S.A. PUBLICATION NO. 1351 RITE-HITE PRINT SHOP JULY 2014...

  • Page 2: Table Of Contents

    Rite-Hite representative. The STR-4200 DOK-LOK vehicle restraint by Rite-Hite is intended to provide a safer workplace for workers in shipping and receiving dock areas. The STR-4200 DOK-LOK vehicle restraint is a hydraulic restraint device that, when properly installed and operated, retains a secure connection between the truck and dock.

  • Page 3: Safety Warnings

    Rite-Hite Corporation does not recommend any particular lockout device, but recommends the utilization of an OSHA approved device (refer to OSHA regulation 1910.147). Rite-Hite Corporation also recommends the review and implementation of an entire safety program for the Control of Hazardous Energy (Lockout/Tagout).
  • Page 4 RITE-HITE ® STR-4200 DOK-LOK ® Installation Manual SAFETY DEVICES HANDS Never be under the dock leveler platform or lip without: STEP • Installing the Safe-T-Strut or other manufacturer approved supporting device. • Turning off power to the control box. • Lockout/Tagout power to the leveler, as Power Moving Components shown under Safety Warnings on page 3.

  • Page 5: Installation

    Installation Manual STR-4200 DOK-LOK INSTALLATION A DOK-LOK vehicle restraint may be installed on docks with or without levelers. Consult Rite-Hite for proper application. Follow the six (6) step installation procedure below: Never be under the dock leveler platform or lip without: 1.
  • Page 6 ANCHOR TRACK 1. Put DOK-LOK vehicle restraint track in place centered in dock position. Refer to Rite-Hite application guidelines for mounting height. 2. Drill holes of 5/8" diameter and minimum of 4-1/2" DO NOT weld in enclosed areas without proper deep.
  • Page 7 RITE-HITE ® STR-4200 DOK-LOK ® Installation Manual INSTALLATION CONT. Attach Lifting Chains See Note 90° Shim to Base Plate Across Top 1/4” Of Track 1/4” Leveler Front Approach Curb Angle 3-5/16” Typ. Both Sides 1/4” Declined Approach Embedded Mounting Plate or Dok-Lok Bracket Typ.
  • Page 8 RITE-HITE ® STR-4200 DOK-LOK ® Installation Manual INSTALLATION CONT. Control Box Wire Power Unit Into Control Box Hydraulic Power Unit Pit Center Line Pass Hoses Through Wall Using Conduit As Required Dock Floor Outside Electrical Junction Box Three Sensor Wires...
  • Page 9 RITE-HITE ® STR-4200 DOK-LOK ® Installation Manual INSTALLATION CONT. NOTE: DO NOT Overtighten Hose Fittings! 2x Bulkhead Fittings L Port Hose L Port Hose P Port Hose P Port Hose L Port Hose NOTE: Stand Alone Power Hoses Are Not Trimable...
  • Page 10 Complete electrical installation per schematics. Install per local electrical codes. Refer all NOTE: Schematic’s are located inside control box. installation and service to qualified personnel. When in doubt, call your local Rite-Hite representative or Rite-Hite at 888-456-3625. Pub. No. 1351 — July 2014...
  • Page 11 RITE-HITE ® STR-4200 DOK-LOK ® Installation Manual INSTALLATION CONT. Spacers should be installed between the enclosure and the wall to provide tempature insulation and air flow. INITIAL START UP INSTALLATION • When drilling holes in the box, DO NOT allow PROCEDURES the drill to go too deeply into the box.
  • Page 12 RITE-HITE ® STR-4200 DOK-LOK ® Installation Manual INSTALLATION CONT. Controls are now in Fill Mode. Holding the LOCK or UNLOCK Button will run the pump up or down. Cycle the DOK-LOK up and down to remove air from the system. Add remaining hydraulic fluid. Stop cycling once the support cylinders travel up and down the full length of slots without hesitation.

  • Page 13: Special Application Installation Items

    RITE-HITE ® STR-4200 DOK-LOK ® Installation Manual SPECIAL APPLICATION INSTALLATION ITEMS 36” Min. Typ. 72” Min. 10” 30” 30” NOTES: a. Concrete pad required on all approaches of materials other than concrete. b. Pad must be a minimum 10 inches thick. May need to be deeper due to sub-soil climatic conditions or location codes.
  • Page 14 RITE-HITE ® STR-4200 DOK-LOK ® Installation Manual SPECIAL APPLICATION INSTALLATION ITEMS Shim Length And Thickness To Be Determined Upon Installation 3/8” Shim Overhang Typ. 3/8” Shim Overhang Typ. Drill Through Shim To Allow Anchor Bolt Mounting Typ. 3” Minimum Wide Typ.
  • Page 15 RITE-HITE ® STR-4200 DOK-LOK ® Installation Manual SPECIAL APPLICATION INSTALLATION ITEMS 3” 8 - 3/16” Extend Lip Guide 1/4” Typ. Remove Excess Shim As Required Material From Behind Track Angles. Shaded Area 1/2” THK Min. Bar As Shown. Stock For Distances Greater Than 1”...
  • Page 16 RITE-HITE ® STR-4200 DOK-LOK ® Installation Manual SPECIAL APPLICATION INSTALLATION ITEMS CONT. 1/4” 4X Ø 11/16” 64” 1” Typ. 1/4” 7 -21/32” 10” 4 - 1/4” 2” Typ. 1/4” 1/4” Section C-C Wheel Riser Height FIGURE 17 - SPACER FABRICATION...
  • Page 17 RITE-HITE ® STR-4200 DOK-LOK ® Installation Manual SPECIAL APPLICATION INSTALLATION ITEMS CONT. Embedded PVC Pipe Overhead View Side View FIGURE 19 - TRENCH DRAIN INSTALLATION WITH TRENCH DRAIN If trench drain is below the base plate, embed PVC pipe in concrete for drainage. Concrete should extend a minimum of 6 inches to either side of of mounting plate.
  • Page 18 RITE-HITE ® STR-4200 DOK-LOK ® Installation Manual OPTIONAL POWER UNIT MOUNTING LOCATION Optional Power Unit Mounting Location. Ensure Hoses Are Protected By Channel Or Other Control Box Means. Protection Not To Project More Than 3 Inches Off Dock Face. Protection Must Extend Down To 8 Inches Off Of The Approach.
  • Page 19 RITE-HITE ® STR-4200 DOK-LOK ® Installation Manual HOSE TRIMMING INSTRUCTIONS NOTE: 3. Liberally lubricate nipple threads and inside of hose Trimmable hoses provided for combination power unit using heavy weight oil. with RHV Leveler applications ONLY. Disregard these 4. Screw nipple clockwise into socket and hose. Leave instructions for ALL other applications.

  • Page 20: Warranty

    Rite-Hite in writing. In the event of any defects covered by this warranty, Rite-Hite will remedy such defects by repairing or replacing any defective equipment or parts, bearing all the costs for parts, labor, and transportation. This shall be the exclusive remedy for all claims whether based on contract, negligence, or strict liability.
