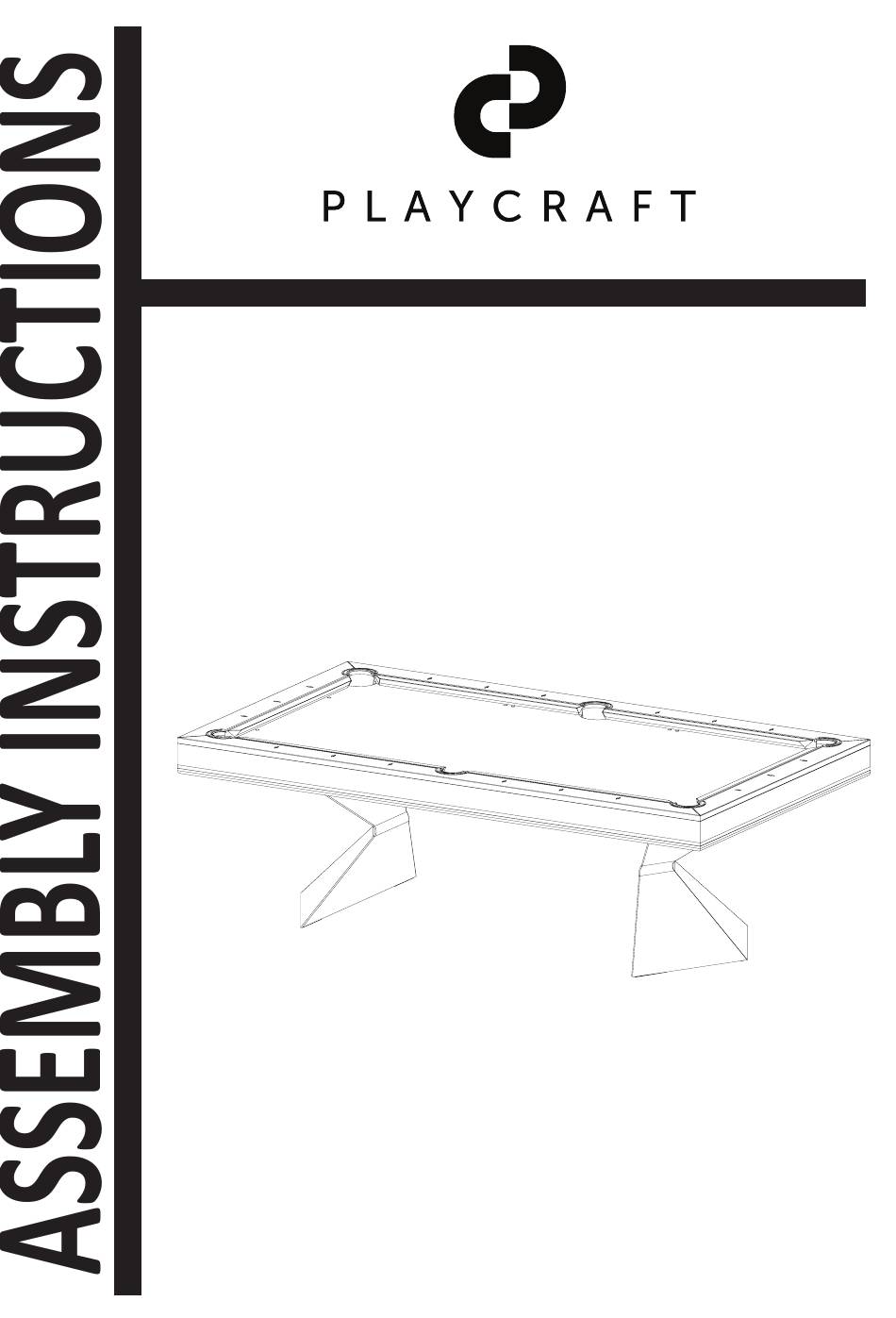

- Page 1 MODEL:PTVALWAB08-Valencia...
- Page 2 Rio Grande assistance. Your table is designed for use indoors in a climate controled environment only. Damage can occur if the table is exposed to water, dampness, high humidity, freezing temperatures, etc. Professional assembly is strongly recommended. This assembly manual is intended to guide an experienced slate pool table installer with the assembly process of this for which the process is the same regardless of the cabinet type.
-
Page 3: Parts List
PARTS LIST IMAGE DESCRIPTION SPECIFICATION UNIT LONGITUDINAL BEAM 2180*100*83 ① ASSEMBLY POSITION FRAME SHORT BEAM 1067*100*118 ② ASSEMBLY POSITION FRAME LONGITUDINAL 2064*80*40 CENTRE BEAM ③ ASSEMBLY POSITION FRAME MIDDLE BEAM 997*120*40 ④ ASSEMBLY POSITION FRAME WOODEN CONNECTOR 220*50*32 FOR THE TABLE FRAME ⑤... -
Page 4: Hardware List
HARDWARE LIST IMAGE DESCRIPTION SPECIFICATION UNIT HEX BOLT ø10*130 ASSEMBLY FOR WOODEN CONNECTOR AND CROSS BEAM POSITION FLAT WAHER M10*30*2 ASSEMBLY FOR WOODEN CONNECTOR AND CROSS BEAM POSITION HEX BOLT ø12*130 ASSEMBLY FOR CROSS BEAM POSITION FLAT WAHER M12*30*2 8PCS FOR THE CROSS BEAM AND 8PCS FOR CROSS BEAM AND ASSEMBLY POSITION BOLT NUT... - Page 5 BARREL NUT ø8*30 ASSEMBLY FOR THE LONG AND SHORT RAIL POSITION DOUBLE HEAD BOLT ø8*80 ASSEMBLY FOR THE LONG AND SHORT RAIL POSITION SEMICIRCLE WASHER ASSEMBLY FOR THE LONG AND SHORT RAIL POSITION FLAT WAHER M8*25*1.5 ASSEMBLY FOR THE LONG AND SHORT RAIL POSITION BOLT NUT ASSEMBLY...
- Page 9 Code # Attention: There are some code number(#--#) writing on both bottom ends of each short and long rails, please connect 2 rail ends together correspondingly with the same code # by sequence in order to avoid some big gap between each 2 ends.
- Page 12 Customer Service Global Merchants, Inc. 12 Lunar Drive Woodbridge, CT 06525...
