Playcraft Accessible Driver Panel 1628 Assembly/Installation Instructions

ACCESSIBLE DRIVER PANEL ASSEMBLY
INSTALLATION INSTRUCTIONS

IMPORTANT NOTES: Read First

(A) Use liquid thread lock (such as Loctite
curing) helps to eliminate the common problem of "thread seizure" in stainless steel hardware by serving as a
lubricant during assembly.
(B) Refer to Installation Manual for 09 Collars and 11 Socket Clamps installation instructions.
(C) All gaps created (e.g. between panels, between panel and deck, between panel and roof, etc.) must be less
than 3-1/2" [89mm] or greater than 9" [229mm].
(D) Clearance between the finish grade and bottom of play equipment (e.g. activity panel, drive wheel, etc.)
for ADA compliant activities must be greater than 24" [610mm].
(E) An appropriate energy absorbing safety surface is required under and around all playground equipment.
Loose fill protective surfacing is shown only as an example for the purpose of this assembly instruction. Other
surfacing material may vary in thickness and/or compression depths. See free publication - The Handbook for
Public Playground Safety, Publication #325 at www.cpsc.gov for the surfacing appropriate for the fall height of the
equipment or consult your surfacing supply representative.
®
) with all threaded hardware. Important: Liquid thread lock (prior to
See Installation Manual Sections
09 Collars and 11 Clamps
Manufactured by Krauss Craft, Inc.
www.playcraftsystems.com

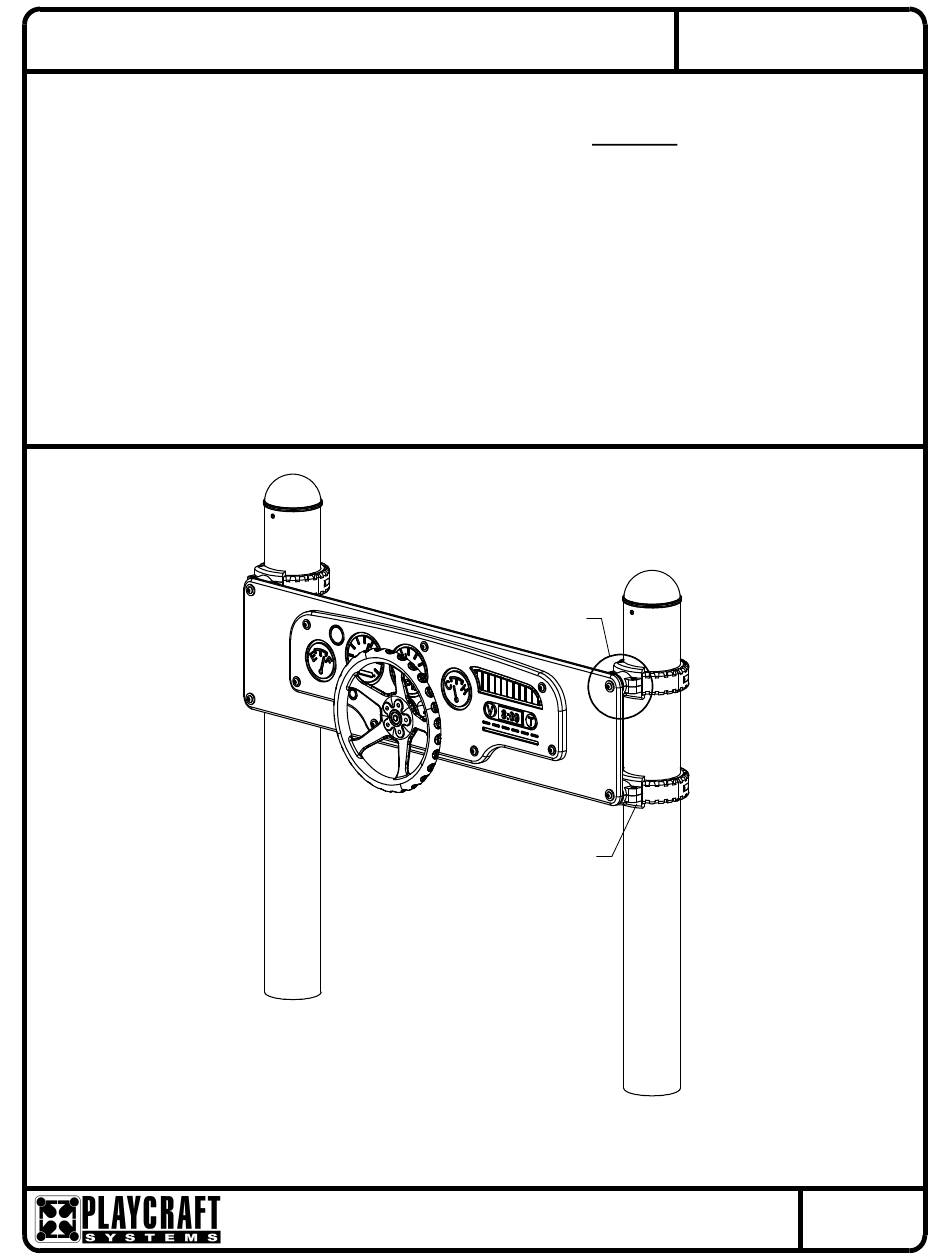

Figure 1.1
NOTE: R5 ADA Driver Panel shown.
R3.5 configuration will vary slightly,
but does not effect assembly.
For Customer Service Call
800.333.8519 (U.S.A.) or
541.955.9199 (International)
1628
Page 1 of 4
FIGURE 1
ADA Driver Panel
Rev G
8/2/2012
